*HWWLQJ 6WDUWHG *XLGH
&211(&7,1*7+('(9,&(
8VLQJWKHLQVWUXFWLRQVEHORZFRQQHFWWKH1HW6FUHHQ*7DQGSUHSDUHWRFRQILJXUHWKH
GHYLFHWRSURWHFW\RXUQHWZRUN8VHWKH/('VRQWKHIURQWSDQHORIWKHGHYLFHWRKHOS
\RXGHWHUPLQHWKHGHYLFHVWDWXV
6WHS
Connect an Ethernet cable from the Untrusted port of the
NetScreen-5GT to the external router, cable modem, or DSL modem.
6WHS
• If the workstation is in a LAN (see diagram), connect a cable
from the Trusted port to the internal switch or hub.
• If the workstation is a single workstation, connect an Ethernet
cable from the Trusted port directly to the Ethernet port on
the workstation.
6WHS
Connect the power cable between the NetScreen-5GT and a power
source. NetScreen recommends using a surge protector.
a. Ensure that the Power LED glows green. This indicates the
device is receiving power.
b. After the device starts (should take about 30 seconds), ensure
that the Status LED blinks green. This indicates the device is
operating normally.
c. Ensure that the Link Activity LEDs glow green for the connected
interfaces. This indicates the device has network connectivity.
6WHS
Configure the workstation to access the NetScreen-5GT via a
Web browser:
a. Ensure that your workstation is properly connected to your LAN
(use the diagram above).
b. Change the TCP/IP settings of your workstation to obtain its IP
address automatically from the NetScreen-5GT via DHCP. For
help, see the operating system documentation for your
workstation.
Note: Ensure that your internal network does not already have a
DHCP server.
c. If necessary, restart your workstation to enable the changes to
take effect.
*HWWLQJ6WDUWHG
8VHWKHLQVWUXFWLRQVLQWKLV*HWWLQJ6WDUWHGJXLGHWRKHOS\RXFRQQHFWDQGFRQILJXUH\RXU
1HW6FUHHQ*7)RUPRUHFRQILJXUDWLRQH[DPSOHVDQGGHWDLOVVHHWKH1HW6FUHHQ*78VHU·V*XLGH
DQGWKH1HW6FUHHQ&RQFHSWV([DPSOHV6FUHHQ265HIHUHQFH*XLGH
NetScreen-5GT
3a
3c
3b
3
1
2
Internet
Router
Hub/Switch
LAN

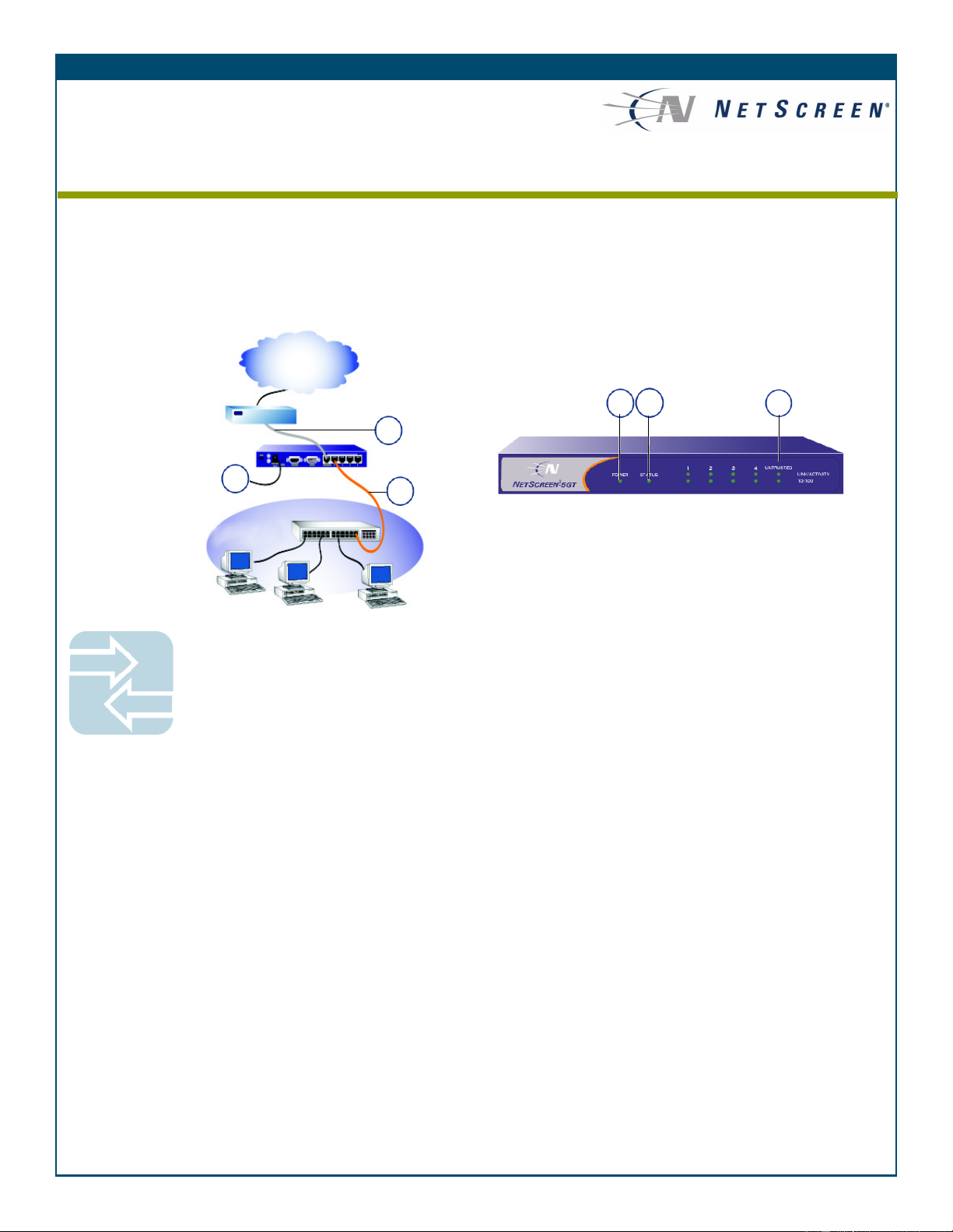

The numbers on the diagram are paired with the
steps below
