Rev. 0.2 2/14 Copyright © 2014 by Silicon Laboratories C8051F91x/90x
C8051F91x/90x
C8051F912 DEVELOPMENT KIT USER’S GUIDE
1. Relevant Devices
The C8051F912 Development Kit is intended as a development platform for the microcontrollers in the
C8051F91x-C8051F90x MCU family. The members of this MCU family are C8051F912, C8051F911, C8051F902,
and C8051F901.
Notes:
1. The target board included in this kit is provided with a pre-soldered C8051F912 MCU (QSOP24 package).
2. Code developed on the C8051F912 can be easily ported to the other members of this MCU family.
3. Refer to the C8051F91x-C8051F90x data sheet for the differences between the members of this MCU
family.
2. Kit Contents
The C8051F912 Development Kit contains the following items:
C8051F912 Target Board
C8051Fxxx Development Kit Quick-Start Guide
AC to DC Power Adapter
USB Debug Adapter (USB to Debug Interface)
2 USB Cables
2 AAA Batteries
CD-ROM

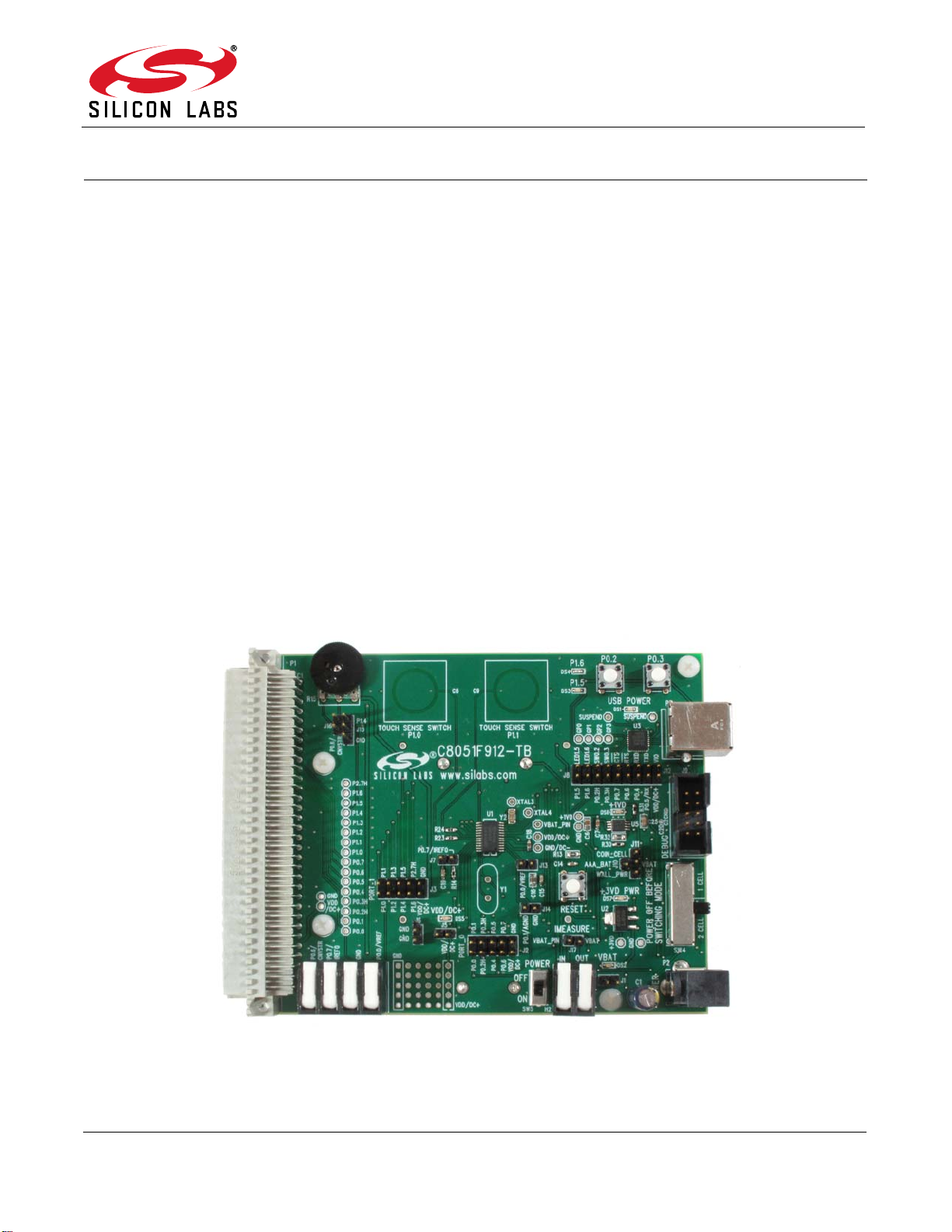

Figure 1. C8051F912 Target Board
