C8051F500 DEVELOPMENT KIT USER’S GUIDE
1. Relevant Devices
The C8051F500 Development Kit is intended as a development platform for the microcontrollers in the
C8051F50x/51x MCU family.
The target board included in this kit is provided with a presoldered C8051F500 MCU (LQFP48 package)
and a C8051F502 (QFN32 package).
Code developed on the C8051F500 can be easily ported to the other members of this MCU family.
Refer to the C8051F50x/51x data sheet for the differences between the members of this MCU family.
2. Kit Contents
The C8051F500 Development Kit contains the following items:
C8051F500 Target Board
C8051Fxxx Development Kit Quick-Start Guide
AC to DC Power Adapter
USB Debug Adapter (USB to Debug Interface)
Two USB Cables
3. Hardware Setup Using a USB Debug Adapter
The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown
in Figure 1.
1. Connect the USB Debug Adapter to one of the DEBUG connector on the target board (DEBUG_A or
DEBUG_B) with the 10-pin ribbon cable. The recommended connection is to DEBUG_A as this microcon-
troller is the primary MCU on the board and more peripherals are easily available.
2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
3. Connect the other end of the USB cable to a USB Port on the PC.
4. Connect the AC/DC power adapter to power jack P4 on the target board.

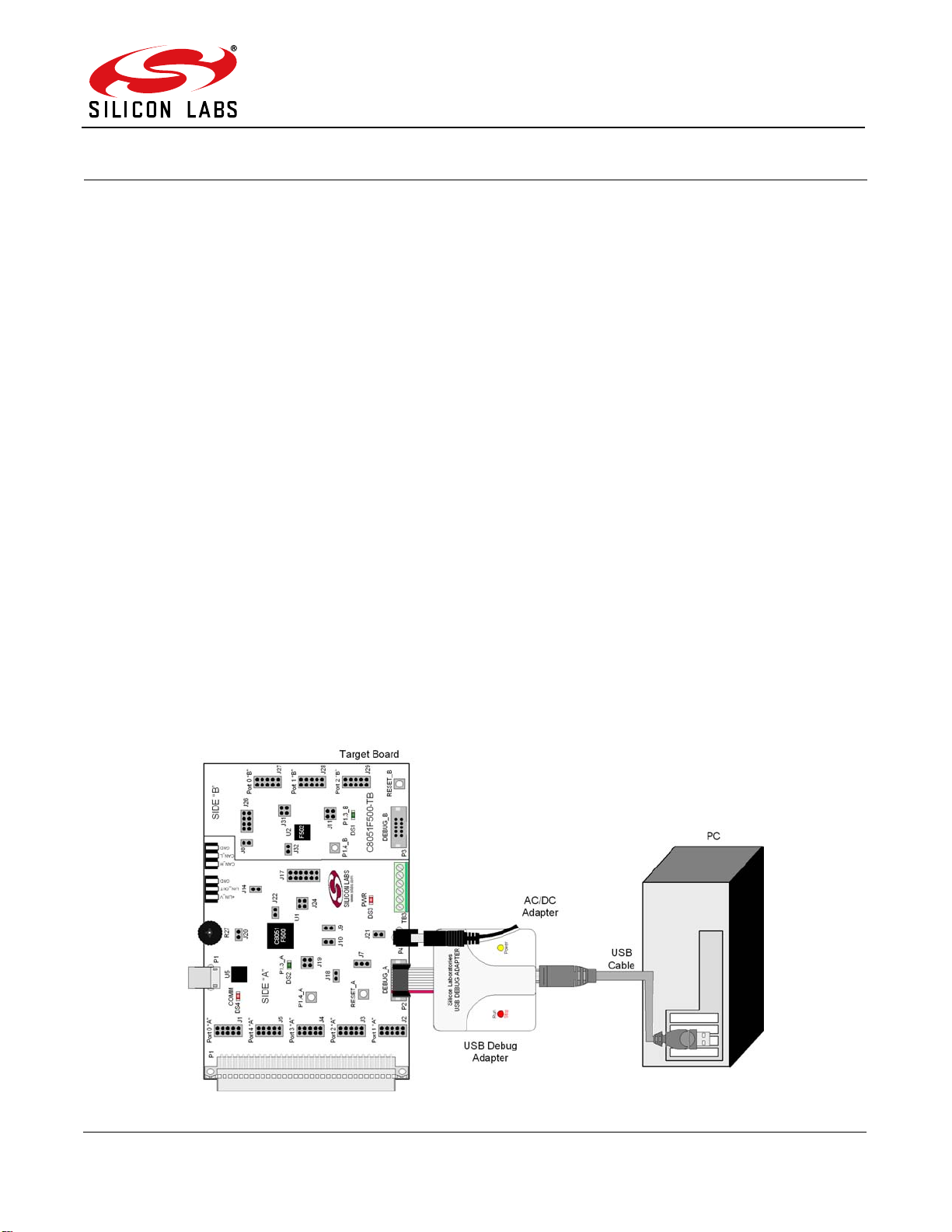

Figure 1. Hardware Setup using a USB Debug Adapter
