ADF7030-1 EZ-KIT User Guide
UG-1006
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
ADF7030-1 EZ-KIT User Guide
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 7
EVALUATION KIT CONTENTS
Two ADF7030-1 daughter boards (EV-ADF70301-915AZ,
EV-ADF70301-868BZ, EV-ADF70301-433AZ, or
EV-ADF70301-169BZ)
Two antennae
Two ADuCM3029 EZ-KIT boards (ADZS-UCM3029EZLITE)
Two LCD shield boards for the ADuCM3029 EZ-KIT board
Two 3.6 V batteries
Three USB cables
One J-Link Lite emulator
One universal 5 V dc power supply
SOFTWARE AND EQUIPMENT NEEDED
ADF7xxx EZ-KIT Design Suite
Contains the ADF7030-1 Design Center, a powerful tool for
evaluation, performance analysis, and configuration of the
ADF7030-1
IAR Embedded Workbench® and Segger®
For embedded development and debug with the
ADuCM3029 and the ADF7030-1
GENERAL DESCRIPTION
The ADF7030-1 EZ-KIT® is an evaluation and development system
for the ADF7030-1 high performance, sub-GHz, RF transceiver.
Four EZ-KIT models are available for the ADF7030-1, covering
various frequency ranges (see Table 1).
Each ADF7030-1 EZ-KIT allows fast and thorough evaluation
of the ADF7030-1 radio and provides a platform for host
processor code development using the ADuCM3029 EZ-KIT
mother board (ADZS-UCM3029EZLITE).
The ADF7030-1 EZ-KIT consists of the following:
RF daughter boards.
Antennae for over the air packet error rate testing.
ADuCM3029 EZ-KIT mother board and LCD shield for
evaluation and development with the ADF7030-1. The
ADF7030-1 daughter boards plug into this mother board.
ADF7030-1 Design Center, a graphical user interface (GUI)
for evaluation of the ADF7030-1. The GUI can be used for
configuring the ADF7030-1, evaluating transmit and
receive operation, and transmitting and receiving packets.
Table 1. Available ADF7030-1 EZ-KIT Models
Model Frequency
ADF70301-915EZKIT 902 MHz to 928 MHz
ADF70301-868EZKIT 863 MHz to 876 MHz
ADF70301-433EZKIT 433 MHz to 434 MHz
ADF70301-169EZKIT 169 MHz

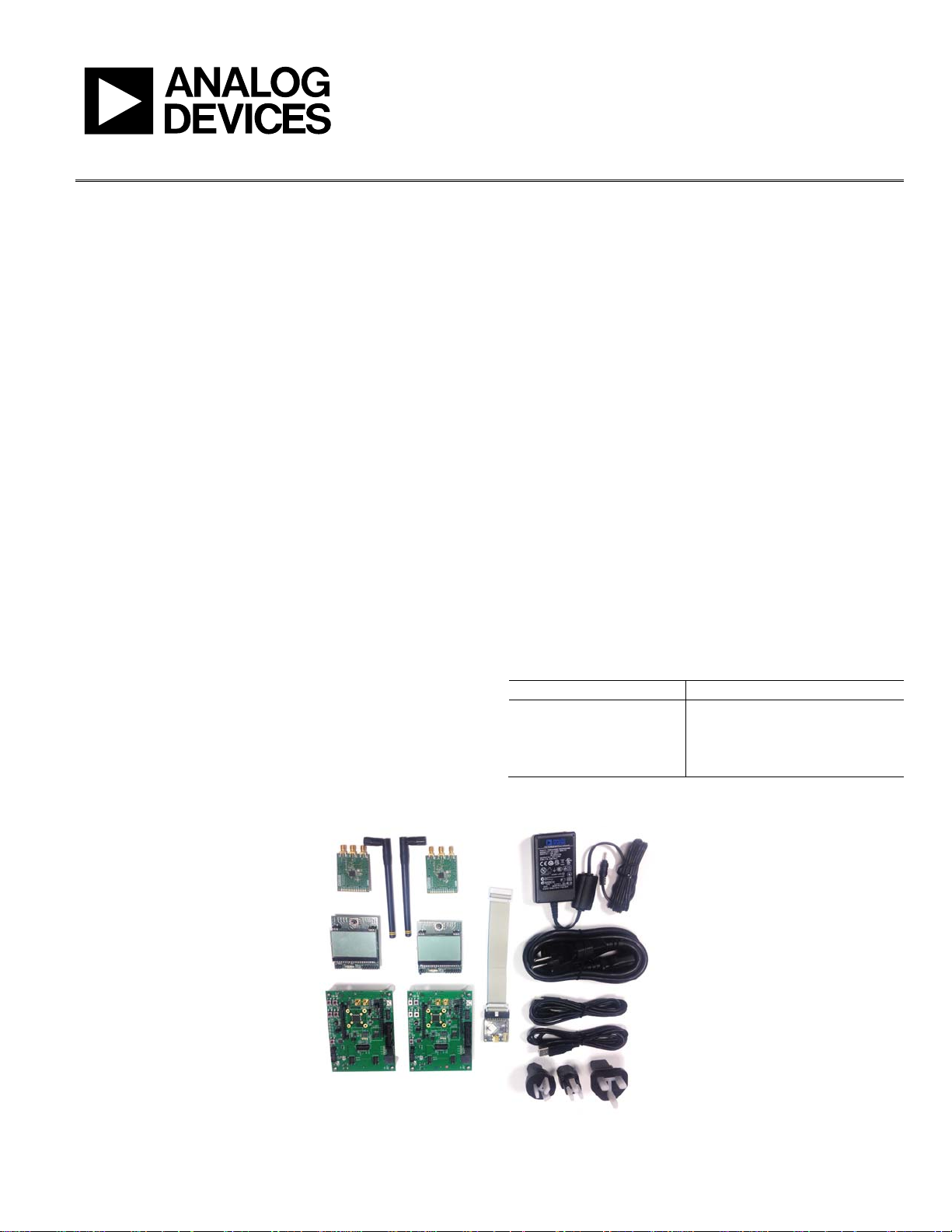

ADF7030-1 EZ-KIT PHOTOGRAPH
14688-001
Figure 1.
