Evaluation Kit User Guide
UG-041
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
ADuC8xx Evaluation Kit Getting Started User Guide
Please see the last page for an important warning and disclaimers. Rev. B | Page 1 of 16
INTRODUCTION
This user guide functions as a tutorial to introduce the various
tools that are part of the MicroConverter® QuickStart™ develop-
ment system. Because these tools are ADuC8xx generic, this
user guide applies to all ADuC8xx parts.
The ADuC8xx parts and the evaluation boards referenced in
this tutorial guide are shown in Table 1. The tools described in
this user guide are listed in Table 2.
Table 1. ADuC8xx Parts and Evaluation Boards
Parts Evaluation Boards
1
SAR MicroConverters
ADuC812 EVAL-ADuC812QSZ, Rev. A3
ADuC814 EVAL-ADUC814QSZ, Rev. B1
ADuC831 EVAL-ADuC831QSZ, Rev. A3
ADuC832 EVAL-ADuC832QSZ, Rev. A3
ADuC841 EVAL-ADuC841QSZ, EVAL-ADuC841QSPZ, Rev. A3
ADuC842/
ADuC843
EVAL-ADuC842QSZ, EVAL-ADuC842QSPZ, Rev. A3
Σ-Δ MicroConverters
ADuC824,
ADuC816
EVAL-ADuC824QSZ, Rev. B
ADuC834,
ADuC836
EVAL-ADuC834QSZ, Rev. B
ADuC845
EVAL-ADuC845QSZ, EVAL-ADuC845QSPZ, Rev. 0
ADuC847,
ADuC848
EVAL-ADuC847QSZ, Rev. 0
1
Models ending in QSZ are QuickStart development systems; models ending
in QSPZ are QuickStrart plus development systems.
Table 2. Software Tools
Tool Executable Function
Metalink 8051 Cross Assembler Asm51.exe
This assembler takes an assembly language source file, created with a text editor and saved with an .asm
extension, and translates it into two files: a listing file output (.lst) and a machine language object file in
standard Intel HEX format (.hex).
Windows Serial Downloader
(WSD)
WSD.exe
The WDS is a Windows® software program developed by Analog Devices, Inc., that allows you to serially
download standard Intel HEX files created by the ASM51 assembler to the MicroConverter while in circuit.
Integrated Development
Environment (IDE) Assembly
Source
Available
online
Keil and IAR provide a complete IDE integrating all tools necessary to edit, assemble, simulate, and debug
assembly source code via the serial port. Download the latest 8051 tools from the official Keil (an ARM
company) or IAR Systems website.
Windows Analog Software
Program (WASP)
WASP.exe WASP is an analysis tool allowing easy measurement of the analog noise performance of the MicroConverter.
USB-EA Emulation
None
This emulation is used for nonintrusive debugging using Keil or IAR development tools. It is also used
for serial downloading via the EA pin and the WSD software.
08412-001

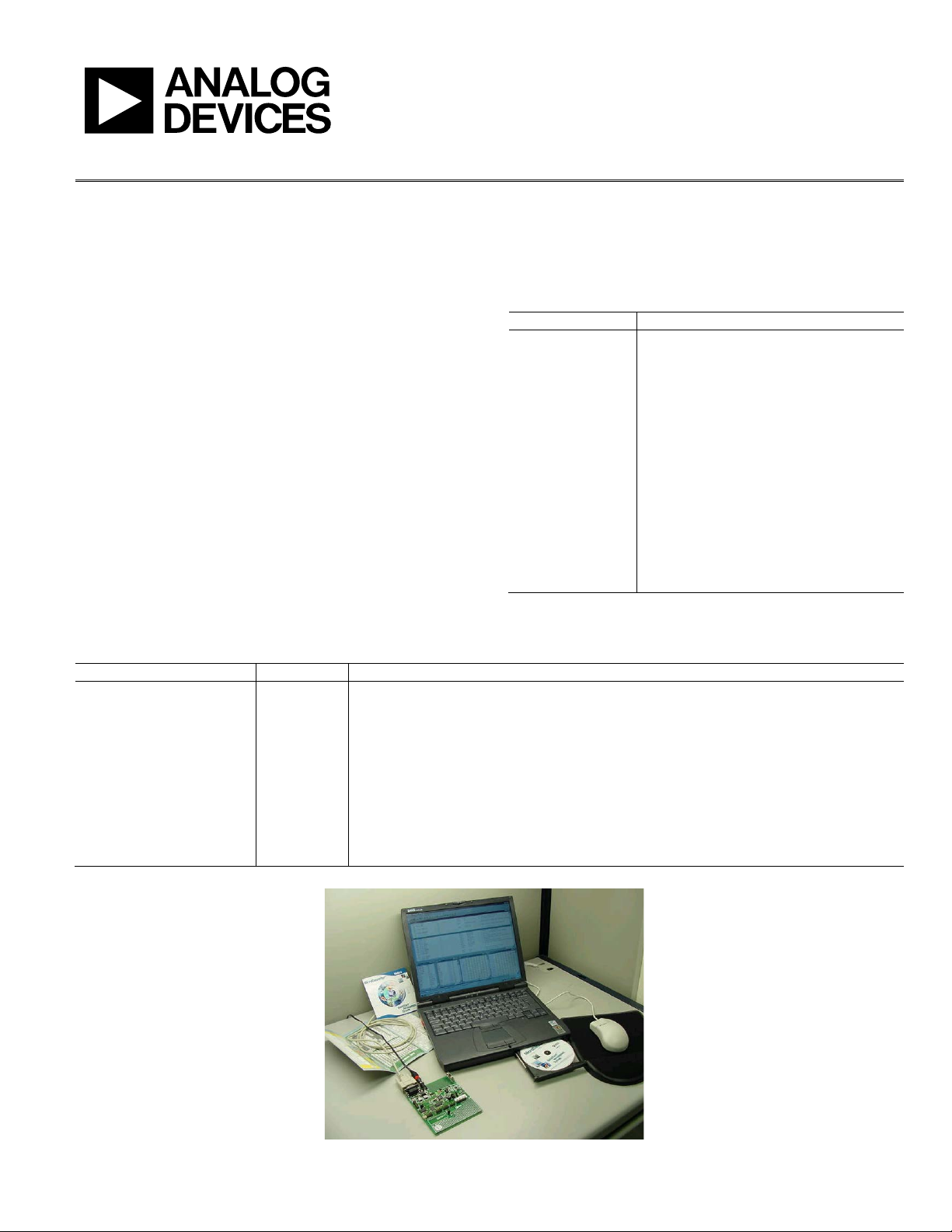

Figure 1. The ADuC8xx QuickStart Development System
