ADM7150CP-EVALZ/ADM7151CP-02-EVALZ User Guide
UG-553
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADM7150 and ADM7151 Linear Regulators
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 8
REGULATOR FEATURES
Input voltage range: 4.5 V to 16 V
Maximum output current: 800 mA
Low noise
1.2 µV
RMS
total integrated noise from 100 Hz to 100 kHz
2 µV
RMS
from 10 Hz to 100 kHz
Initial accuracy: ±1%
Fixed 5 V (
ADM7150) and adjustable (ADM7151) output
versions
8-lead LFCSP package and SOIC package
EVALUATION KIT CONTENTS
ADM7150CP-EVALZ or ADM7151CP-02-EVALZ evaluation
board
ADDITIONAL EQUIPMENT NEEDED
DC power supply
Multimeters for voltage and current measurements
Electronic or resistive loads
GENERAL DESCRIPTION
The ADM7150CP-EVAL Z and ADM7151CP-02-EVA L Z
evaluation boards are used to demonstrate the functionality of
the ADM7150 and ADM7151 linear regulators, respectively.
Simple device measurements, such as line and load regulation,
dropout, and ground current, can be demonstrated with just a
single voltage source, a voltmeter, an ammeter, and load resistors.
For more details about the linear regulators, refer to the
ADM7150 and ADM7151 data sheets.
EVALUATION BOARD
11481-001

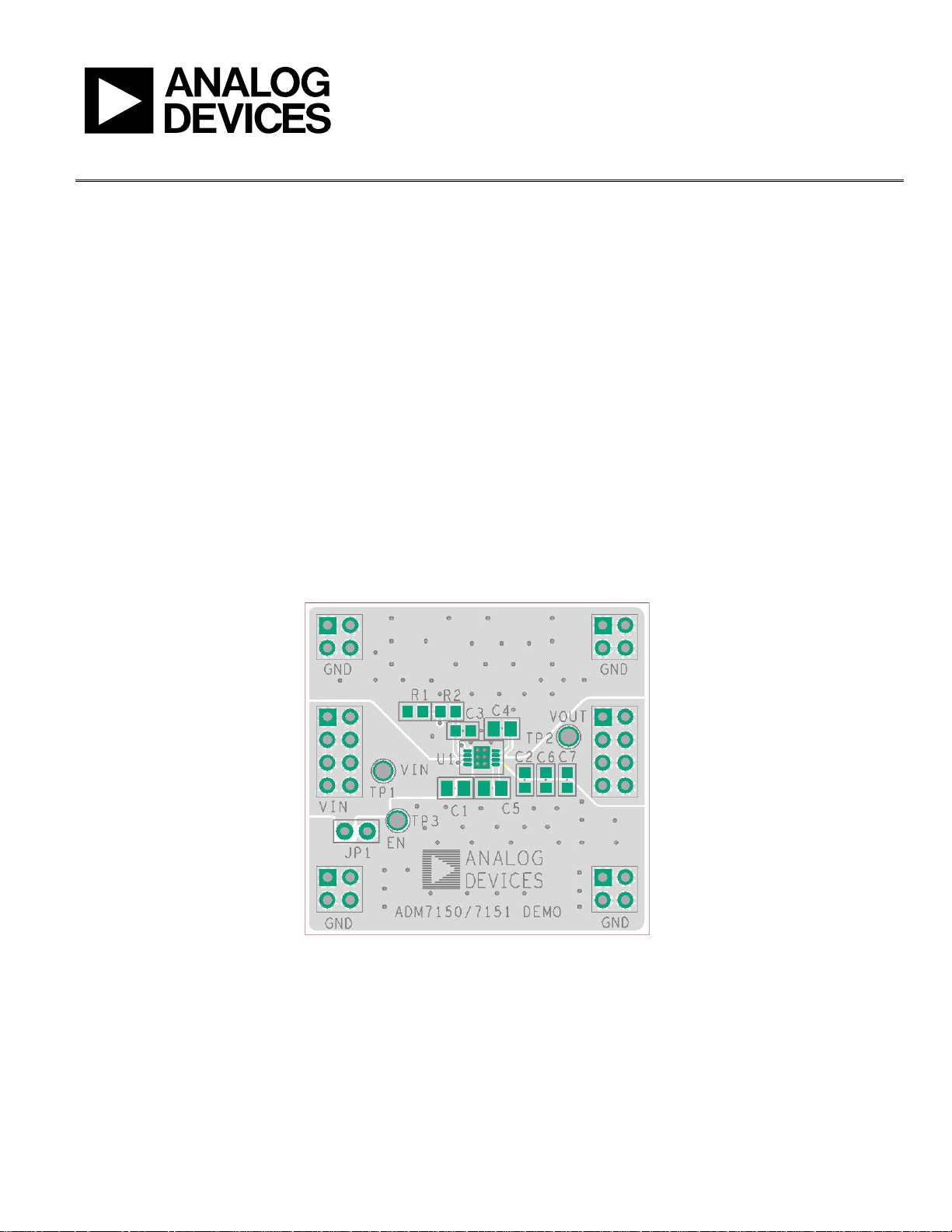

Figure 1. ADM7150CP-EVALZ/ADM7151CP-02-EVALZ
LFCSP Evaluation Board
