Evaluation Board User Guide
UG-363
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
ADISUSBZ iSensor Evaluation System
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 8
FEATURES
PC USB evaluation system for inertial measurement units
PC evaluation software
ADIS16003, ADIS16006, ADIS16133, ADIS16135,
ADIS16136, ADIS16201, ADIS16203, ADIS16204,
ADIS16209, ADIS16210, ADIS16220, ADIS16223,
ADIS16227, ADIS16228, ADIS16240, ADIS16260,
ADIS16265, ADIS16300, ADIS16305, ADIS16334,
ADIS16360, ADIS16362, ADIS16364, ADIS16365,
ADIS16367, ADIS16375, ADIS16385, ADIS16400,
ADIS16405, ADIS16407
Compatible with Windows XP, Windows Vista, Windows 7
32-bit USB driver support
No external power supply required for most products
KIT CONTENTS
ADISUSBZ circuit board
12-pin ribbon connector, 2 mm
USB A-to-B cable, 6 ft
GENERAL DESCRIPTION
The iSensor® family of products provides a serial peripheral
interface (SPI) for data communications. The SPI interface and
a well-calibrated cluster of sensors enable quick integration into
systems that use embedded processor systems. For users who are
familiar with embedded processors, integrating the iSensor®
device with a familiar processor system enables development with
familiar software tools, provides more flexibility, and enables more
design reuse after the initial sensor evaluation is complete. For
users who are not familiar with embedded processors and their
development tools, the ADISUSBZ system provides a simple
tool for verifying parametric performance and demonstrating
most product functions.
The ADISUSBZ circuit board provides tapped holes (M2 ×
0.4 mm), and the kit includes an assortment of M2 × 0.4 mm
machine screws for simple IMU attachment. The location of the
mounting holes facilitates easy electrical connection with either
mating connector on the ADISUSBZ: J1 or J4.
The power management system provides jumper selection for
three device under test (DUT) power options: 5 V (USB), 3.3 V,
and an external option. The 5 V option provides access to the
USB 5 V supply voltage for the DUT, and the 3.3 V option uses
a linear regulator to convert the USB supply to 3.3 V.
The ADISUSBZ system supports PC evaluation software packages
for most iSensor products. These software packages provide three
modes of operation: demonstration (main window), register access,
and data capture.
The ADISUSBZ kit includes a USB cable for quick connection to a
PC and a 12-pin ribbon cable for mounting hardware. The IMU
evaluation software package supports operation on Windows® X P,
Windows Vista®, and Windows 7 (32-bit) PC systems.

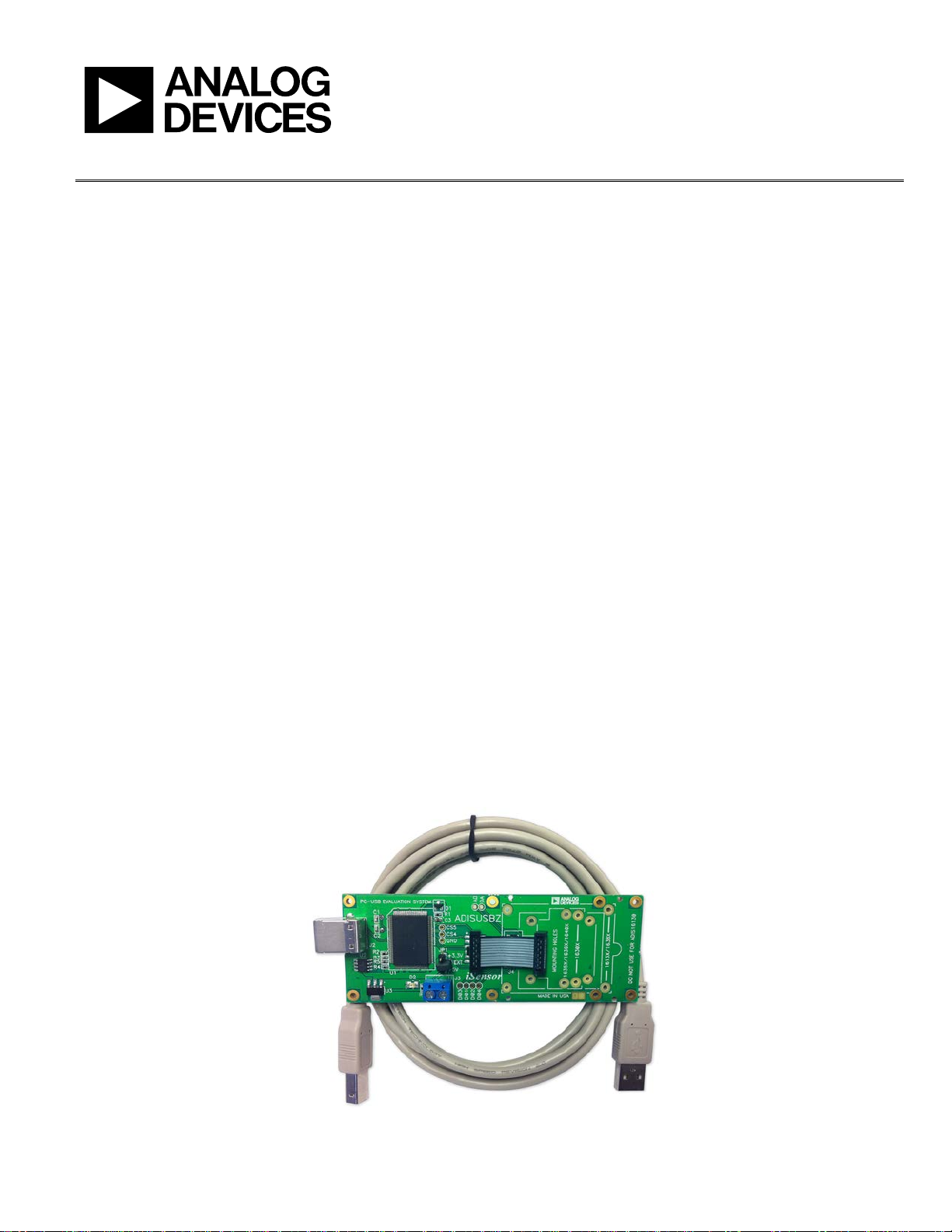

PHOTOGRAPH OF INERTIAL SENSOR EVALUATION SYSTEM
Figure 1.
10438-001
