Evaluation Board User Guide
UG-097
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for ADF4360-2 Integrated PLL and VCO Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 12
FEATURES
Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop
bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
USB/battery-operated 9 V supplies
Typical phase noise performance of −141 dBc/Hz at 3 MHz offset
Typical spurious performance of −70 dBc at 200 kHz offset
(2.0 GHz output)
GENERAL DESCRIPTION
The ADF4360-2EBZ1 evaluation board is designed to allow the
user to evaluate the performance of the ADF4360-2 frequency
synthesizer consisting of an integrated PLL and VCO (see Figure 1).
It contains the ADF4360-2BCPZ, a USB connector, and SMA
connectors for the RF outputs. Unpopulated SMA footprints are
available for the power supplies, the chip enable (CE), and the
external reference input. The evaluation board also contains
the loop filter to complete the PLL. It can be modified as necessary
for the PLL requirements of the user. A USB cable is included
with the board to allow software programmability from a PC.
The package also contains a CD with Windows® software to allow
quick, user-friendly programming of the synthesizer. The CD
contains additional PLL data sheets, technical notes, articles, and
ADIsimPLL™ V3.4 (Analog Devices, Inc., PLL simulation
software). More information is available at www.analog.com/pll.

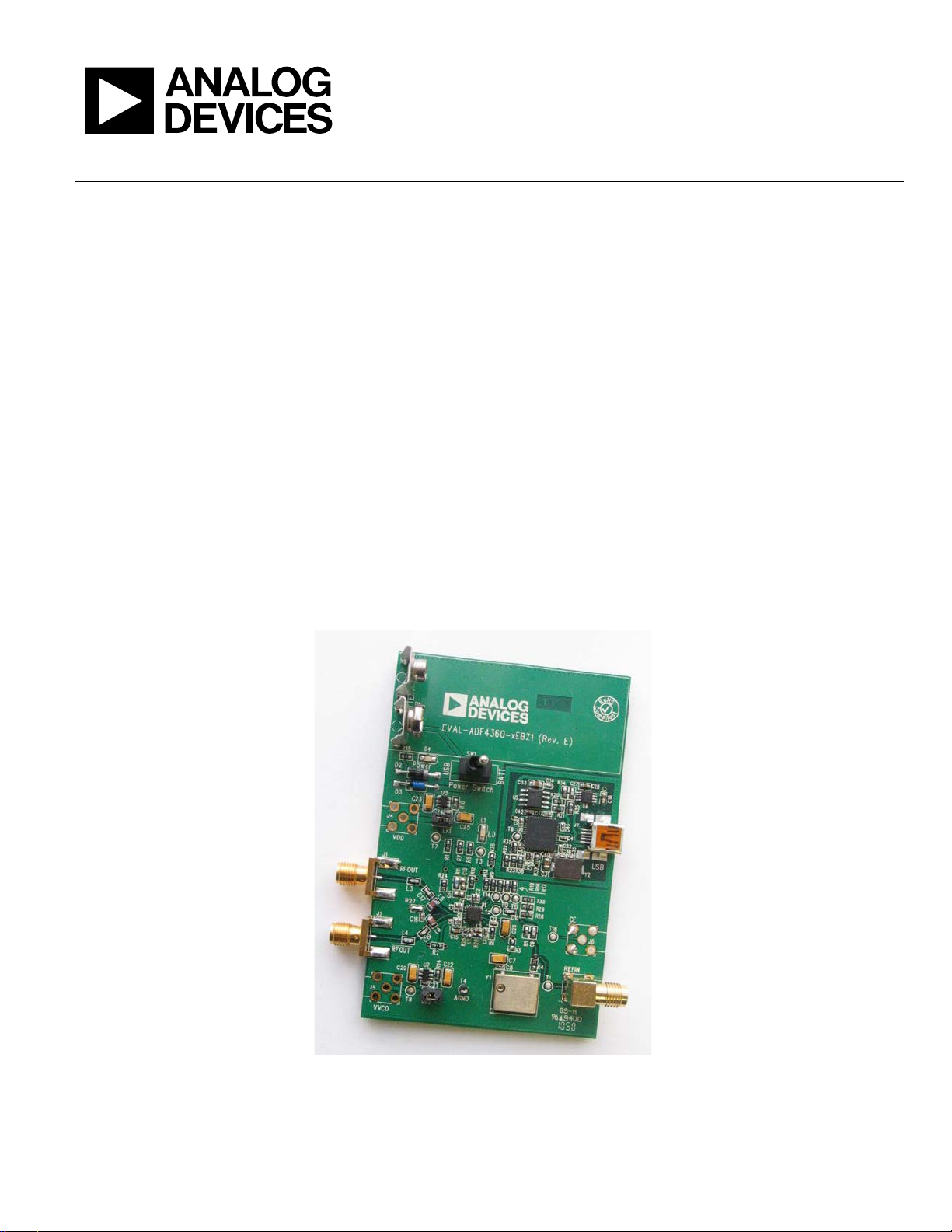

EVALUATION BOARD PHOTOGRAPH
08881-001
Figure 1.
