Evaluation Board User Guide
UG-485
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the ADF4153A Fractional-N PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 20
FEATURES
Self-contained evaluation board including synthesizer,
VCO, TCXO for reference frequency, and loop filter
Designed for 25 MHz PFD frequency, 2.5 mA charge pump
current, and 50 kHz loop bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
EVALUATION KIT CONTENTS
EV-ADF4153ASD1Z board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the ADF4153A data sheet
Electronic version of the UG-485 user guide
Electronic version of the UG-476 user guide (PLL software
installation procedure)
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
SDP-S board (system demonstration platform, serial only)
Spectrum analyzer
Oscilloscope (optional)
DOCUMENTS NEEDED
ADF4153A data sheet
REQUIRED SOFTWARE
ADI Frac-N PLL software (Revision 4.2.1 or higher)
ADIsimPLL
GENERAL DESCRIPTION
This evaluation board is designed to allow the user to evaluate
the performance of the ADF4153A frequency synthesizer for
phase-locked loops (PLLs). Figure 1 shows the board, which
contains the ADF4153A synthesizer, an edge-mounted SMA
connector for the RF output signal, power supply connectors,
a temperature compensated reference oscillator (TCXO) of
25 MHz frequency, and an SDP connector. There is also a
loop filter (50 kHz) and a VCO (Mini-Circuits ROS-1800+)
on board.
The package also contains Windows® software (XP or later) to
allow easy programming of the synthesizer.
This board requires a system demonstration platform-serial
(SDP-S) board (not supplied with the kit). The SDP-S allows
software programming of the ADF4153A device.
EVALUATION BOARD

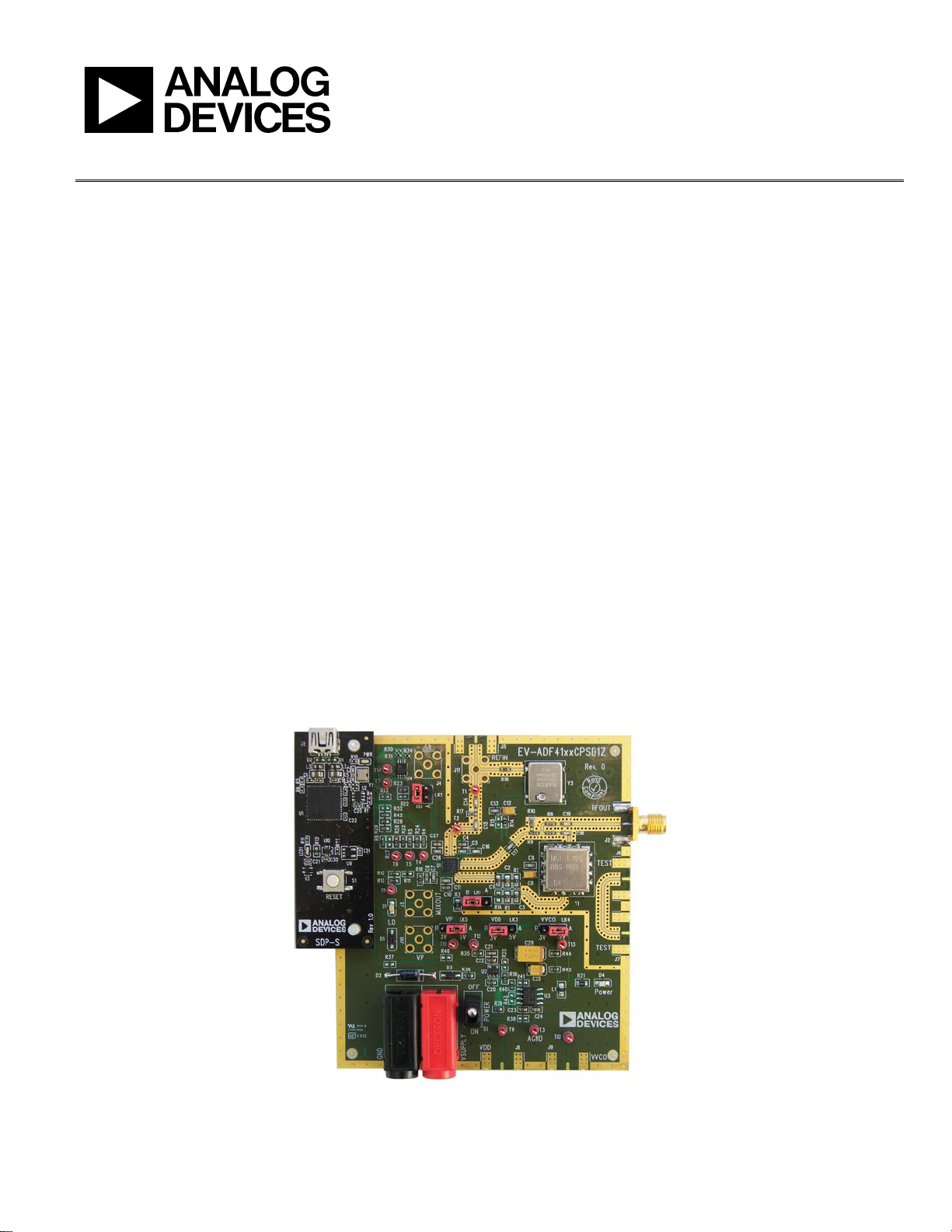

Figure 1. EV-ADF4153ASD1Z with SDP-S
11065-001
