EVAL-ADF4152HVEB1Z User Guide
UG-963
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADF4152HV PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 20
FEATURES
General-purpose evaluation board for the ADF4152HV,
including octave range VCO, loop filter, and TCXO
Contains the ADF4152HV frequency synthesizer (500 MHz to
5 GHz
Contains the ADF5001 prescaler to allow optional connection
of external microwave VCOs without the need for an active
loop filter
Accompanying software allows complete control of
synthesizer functions from a PC
EVALUATION KIT CONTENTS
EVAL-ADF4152HVEB1Z board
CD that includes
Self installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the ADF4152HV data sheet
Electronic version of the EVAL-ADF4152HVEB1Z User Guide
Electronic version of the PLL Software Installation Guide
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
Power supply
Spectrum analyzer
Oscilloscope (optional)
DOCUMENTS NEEDED
ADF4152HV data sheet
EVAL-ADF4152HVEB1Z User Guide
PLL Software Installation Guide
REQUIRED SOFTWARE
Analog Devices ADF4152HV family software (Version 4.4.0
or higher)
GENERAL DESCRIPTION
This board is designed to allow the user to evaluate the perfor-
mance of the ADF4152HV frequency synthesizer for phase-locked
loops (PLLs). Figure 1 shows the board, which contains the
ADF4152HV synthesizer, loop filter, voltage controlled oscillator
(VCO) of 1 GHz to 2 GHz octave range and up to 28 V high
tuning voltage, reference temperature controlled crystal oscillator
(TCXO) of 25 MHz frequency for the reference input, power
supply connectors, and a radio frequency (RF) output. The
ADF5001 prescaler allows optional direct connection of external
microwave VCOs without the need for an active loop filter.
The evaluation kit also contains software that is compatible with
Windows® XP and later versions to allow easy programming of
the synthesizer.
The PC must have a USB port to program the device.

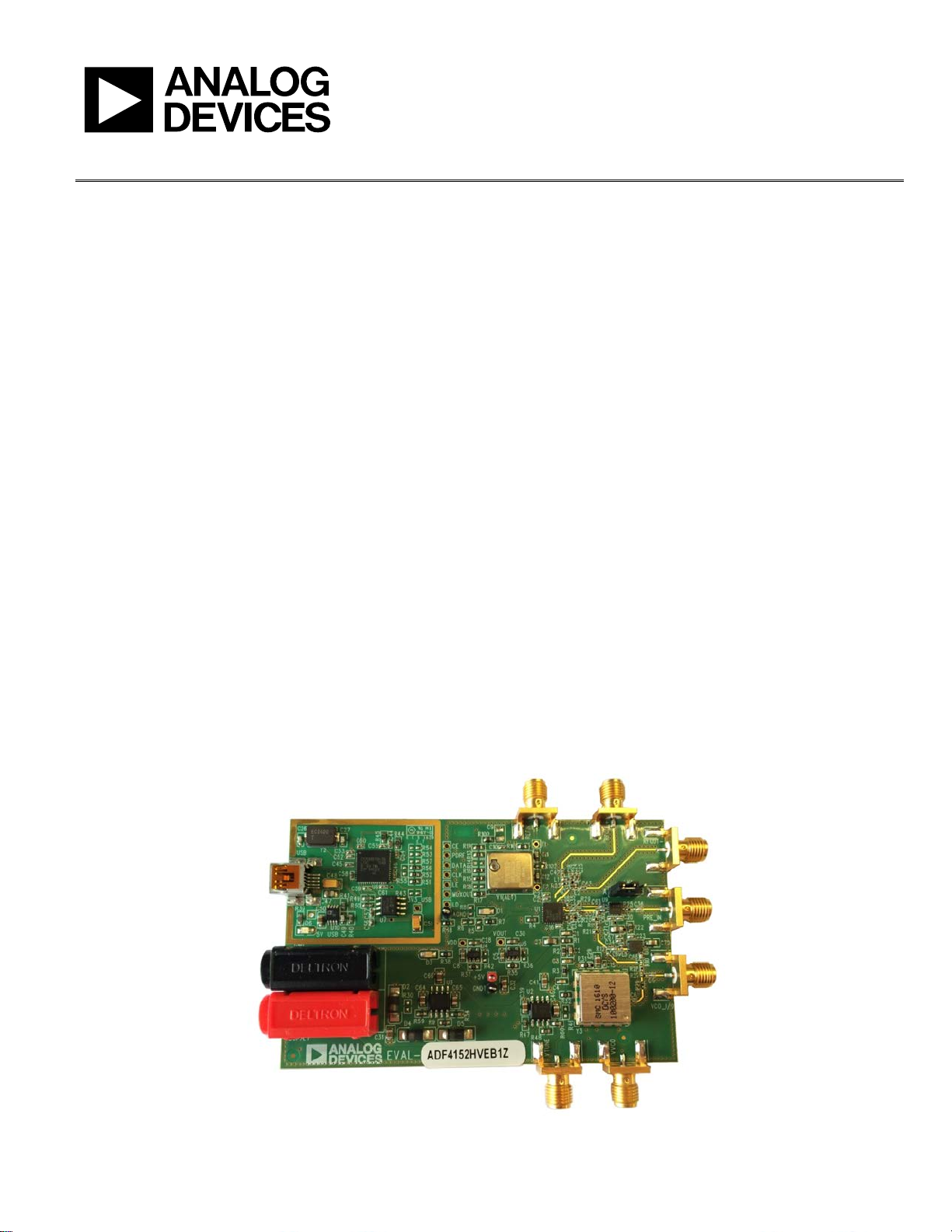

EVALUATION BOARD PHOTOGRAPH
Figure 1.
EVAL-ADF4152HVEB1Z
14438-001
