Evaluation Board User Guide
UG-160
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the Integer-N PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. B | Page 1 of 16
FEATURES
Self-contained board for generating RF frequencies
Contains the ADF4108—an 8 GHz frequency synthesizer IC
Accompanying software allows complete control of
synthesizer functions from a PC
EVALUATION KIT CONTENTS
EV-ADF4108EB1Z board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the ADF4108 data sheet
Electronic version of the UG-160 user guide
Electronic version of the UG-476 user guide
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
Spectrum analyzer
Oscilloscope (optional)
Power supplies of 5.5 V and 15 V
DOCUMENTS NEEDED
ADF4108 data sheet
REQUIRED SOFTWARE
Analog Devices Int-N software (Version 7 or higher)
ADIsimPLL
GENERAL DESCRIPTION
The EV-ADF4108EB1Z evaluation board allows the user to
evaluate the performance of the ADF4108 frequency synthesizer
for phase-locked loops (PLLs). Figure 1 shows the board, which
contains the ADF4108 synthesizer, an SMA connector for the
reference input, the power supplies, a USB interface, and the RF
outputs. There is also an active loop filter and a VCO on board. The
user has the option of using an alternate loop filter and VCO by
connecting the board to the following SMA connectors: VTUNE
and CP O U T. The evaluation kit contains software that is com-
patible with Windows® XP and more recent versions to allow
easy programming of the synthesizer.
The USB interface allows software programming of the ADF4108
device. A USB cable is included in the evaluation board kit to
allow software programmability.
EVALUATION BOARD
09145-001

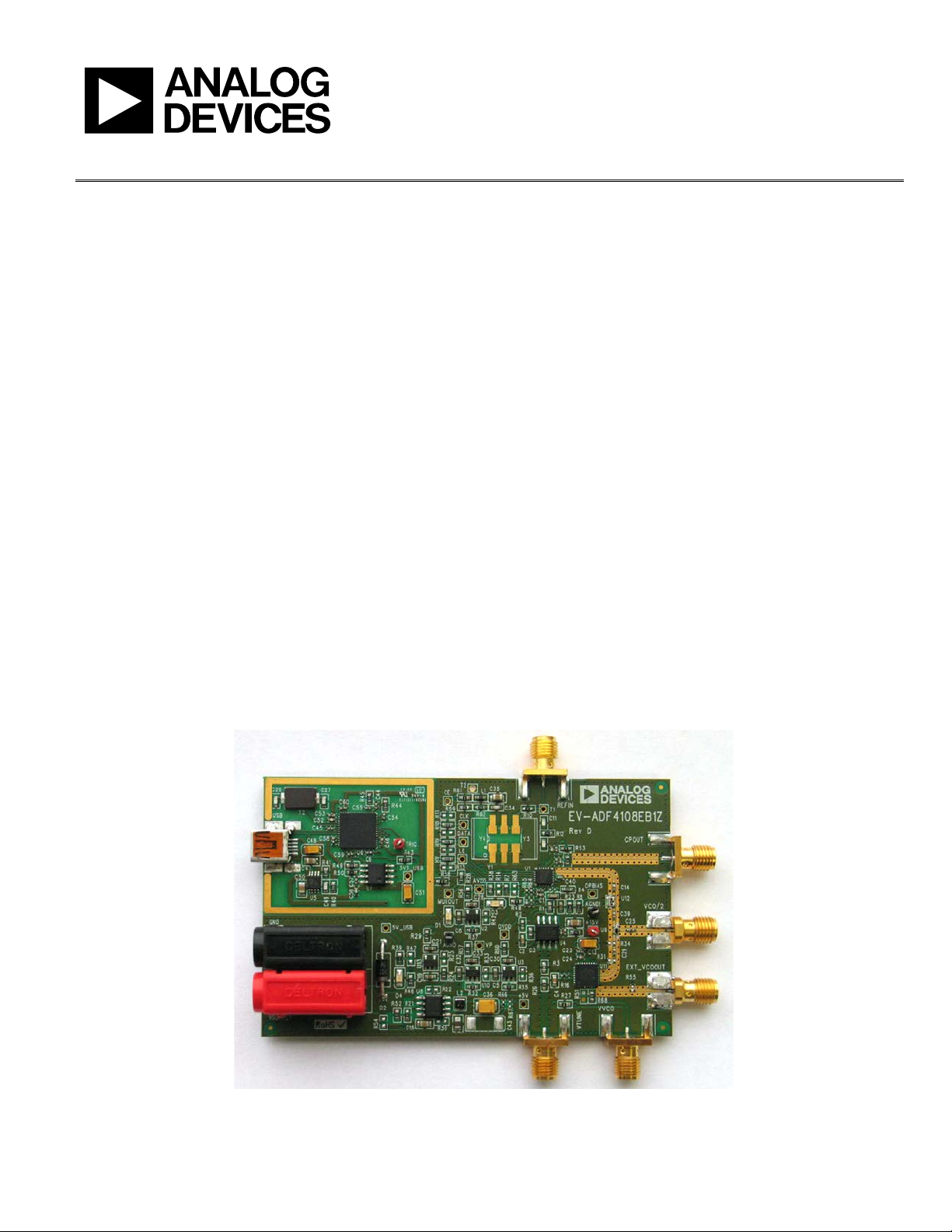

Figure 1. EV-ADF4108EB1Z
