Evaluation Board User Guide
UG-066
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Setting Up the Evaluation Board for the ADCLK954
Please see the last page for an important warning and disclaimers. Rev. 0 | Page 1 of 8
PACKAGE LIST
Evaluation board with ADCLK954 component installed
Applicable documents (schematic, layout)
GENERAL DESCRIPTION
This user guide describes how to set up and use the evaluation
board for the ADCLK954. The ADCLK954 data sheet should be
used in conjunction with this user guide.
The data sheet contains full technical details about the spec-
ifications and operation of this device.
The ADCLK954 is a very high performance clock fanout buffer.
The evaluation board is fabricated using a high quality Rogers
dielectric material. Transmission line paths are kept as close to
50 as possible.
DIGITAL PICTURE OF EVALUATION BOARD
0
8665-001

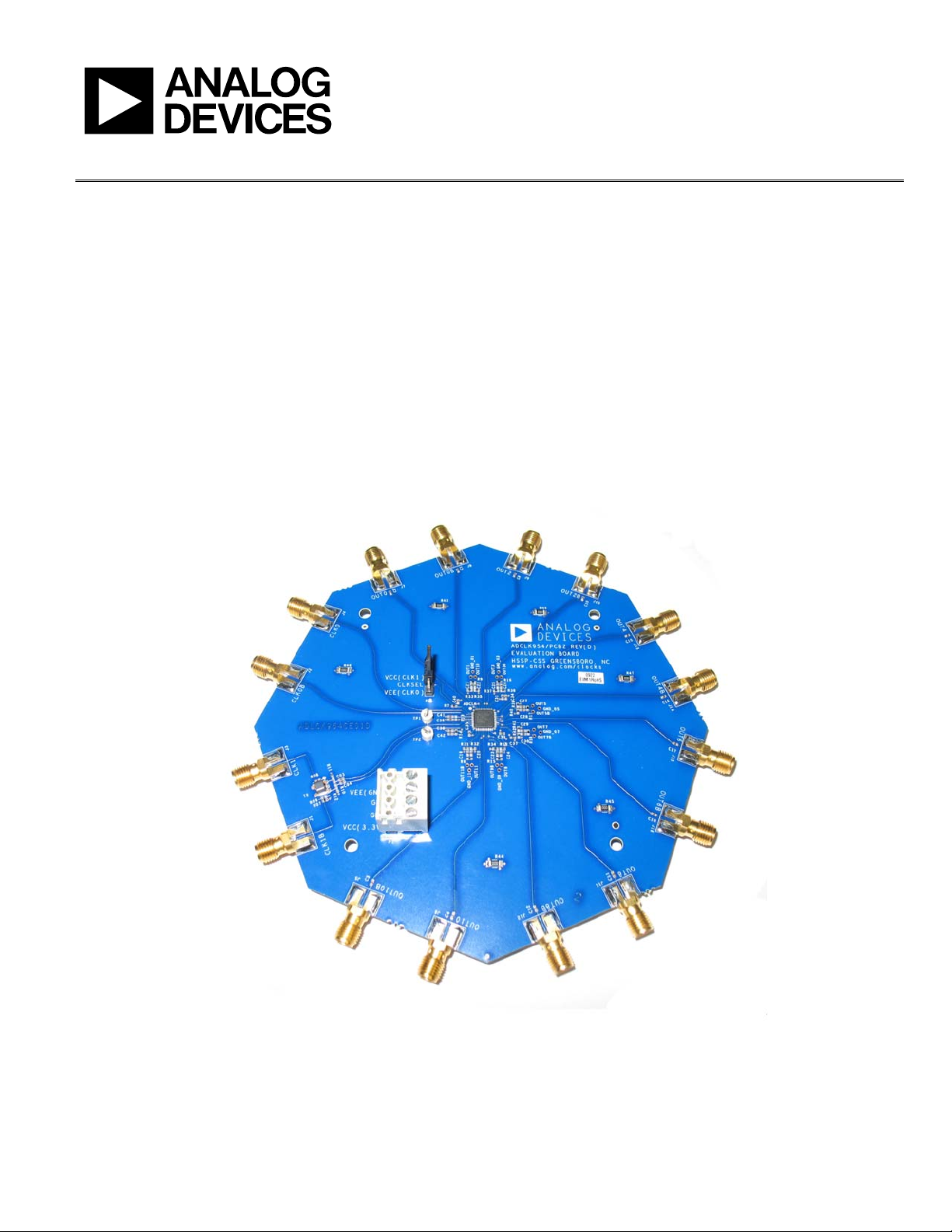

Figure 1. ADCLK954 Evaluation Board
