ADA4870ARR-EBZ User Guide
UG-685
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADA4870 High Speed, High Output Current Amplifier
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 8
FEATURES
Enables easy evaluation of the ADA4870
Single-supply or dual-supply operation
Robust thermal management
APPLICATIONS
BTS envelope tracking
Power FET driver
Ultrasound
Piezo driver
PIN diode driver
Waveform generation
ATE
CCD panel driver
GENERAL DESCRIPTION
The ADA4870 is a 40 V, unity-gain stable, high speed current
feedback amplifier capable of delivering 1 A of output current
from a 40 V supply. Manufactured using the Analog Devices,
Inc., proprietary high voltage XFCB process, the innovative
architecture of the ADA4870 enables high output power, high
speed signal processing solutions in a variety of demanding
applications.
The ADA4870 is ideal for driving high voltage power
FETs, piezo transducers, PIN diodes, and a variety of other
demanding applications that require high speed from high
supply voltage and high current output.
The ADA4870 is available in a power SOIC package (PSOP_3)
featuring an exposed thermal slug that provides high thermal
conductivity to the PCB and heat sink enabling efficient heat
transfer for improved reliability in demanding environments.
The ADA4870 operates over the industrial temperature range
(−40°C to +85°C).

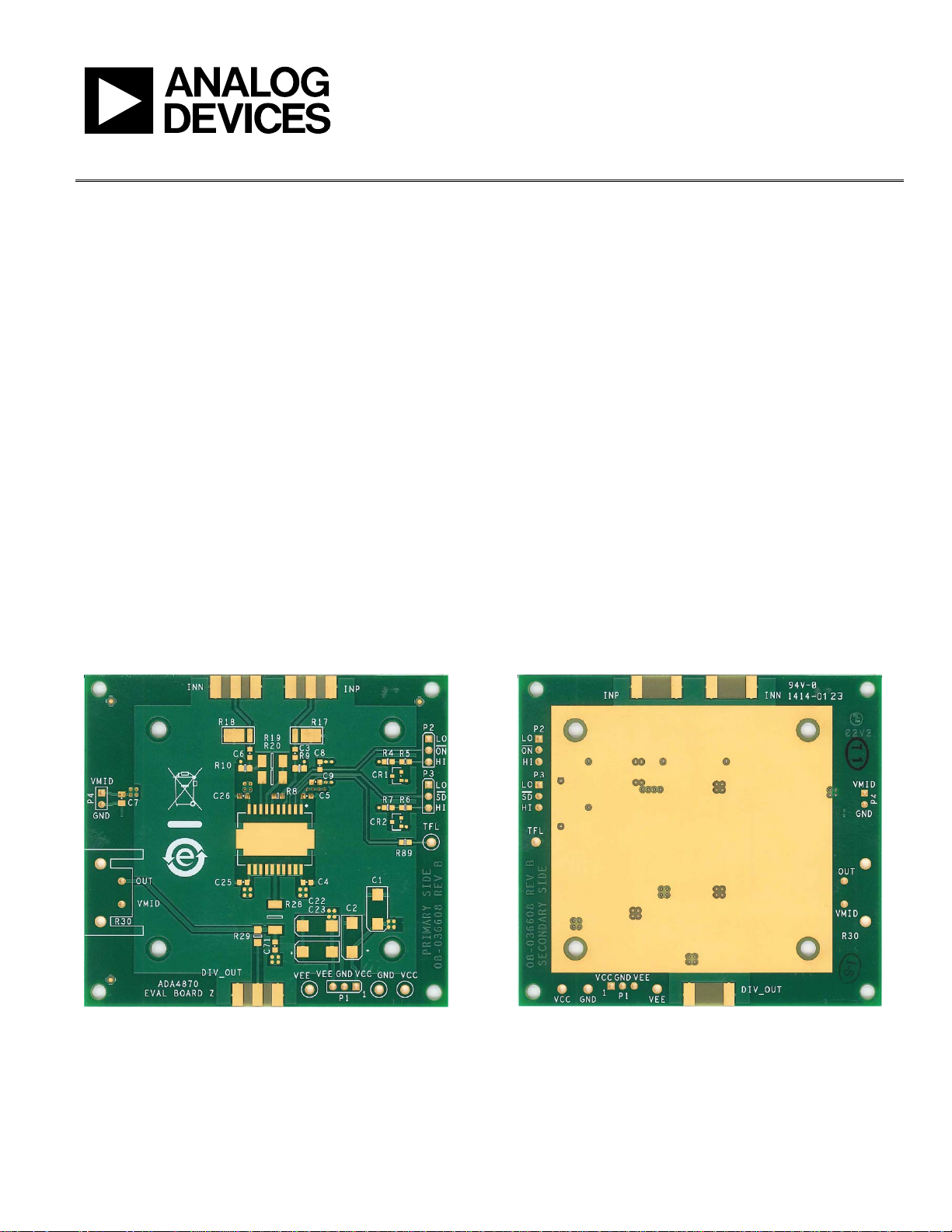

The evaluation board, ADA4870ARR-EBZ, provides a platform
for quick and easy evaluation of the ADA4870. Figure 1 shows
the top side of the evaluation board. Figure 2 shows the bottom
side of the board with the large exposed copper area for
applying a heat sink as needed.
12271-001
Figure 1. Evaluation Board, Top Side
12271-002
Figure 2. Evaluation Board, Bottom Side
