ADA4806-1RJ-EBZ Evaluation Board User Guide
UG-887
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADA4806-1 0.2 µV/°C Offset Drift, 105 MHz Low Power, Multimode,
Rail-to-Rail Amplifier Offered in an 8-Lead SOT-23
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 4
FEATURES
Enables quick breadboarding/prototyping
User defined circuit configuration
Edge mounted Subminiature Version A (SMA) connector
provisions
Easy connection to test equipment and other circuits
GENERAL DESCRIPTION
The Analog Devices, Inc., ADA4806-1RJ-EBZ evaluation board
is designed to help users evaluate the ADA4806-1 low power,
multimode, rail-to-rail amplifier, offered in an 8-lead SOT-23
package. The ADA4806-1RJ-EBZ is a bare board (that is, there
are no components soldered to the board) that enables users to
quickly prototype a variety of op amp circuits. Figure 1 and
Figure 2 show the bare evaluation board, component side and
solder side, respectively.
The ADA4806-1RJ-EBZ is a 2-layer printed circuit board (PCB)
that accepts SMA edge mounted connectors on the inputs and
outputs for efficient connection to test equipment or other
circuitry. The ADA4806-1RJ-EBZ evaluation board components
are primarily surface-mount technology (SMT) 0603 case size,
with the exception of the electrolytic bypass capacitors (C1 and
C2) which are 3528 case size.
Figure 3 shows the evaluation board schematic, and the bill of
materials are listed in Table 1.
EVALUATION BOARD LAYOUT PATTERNS

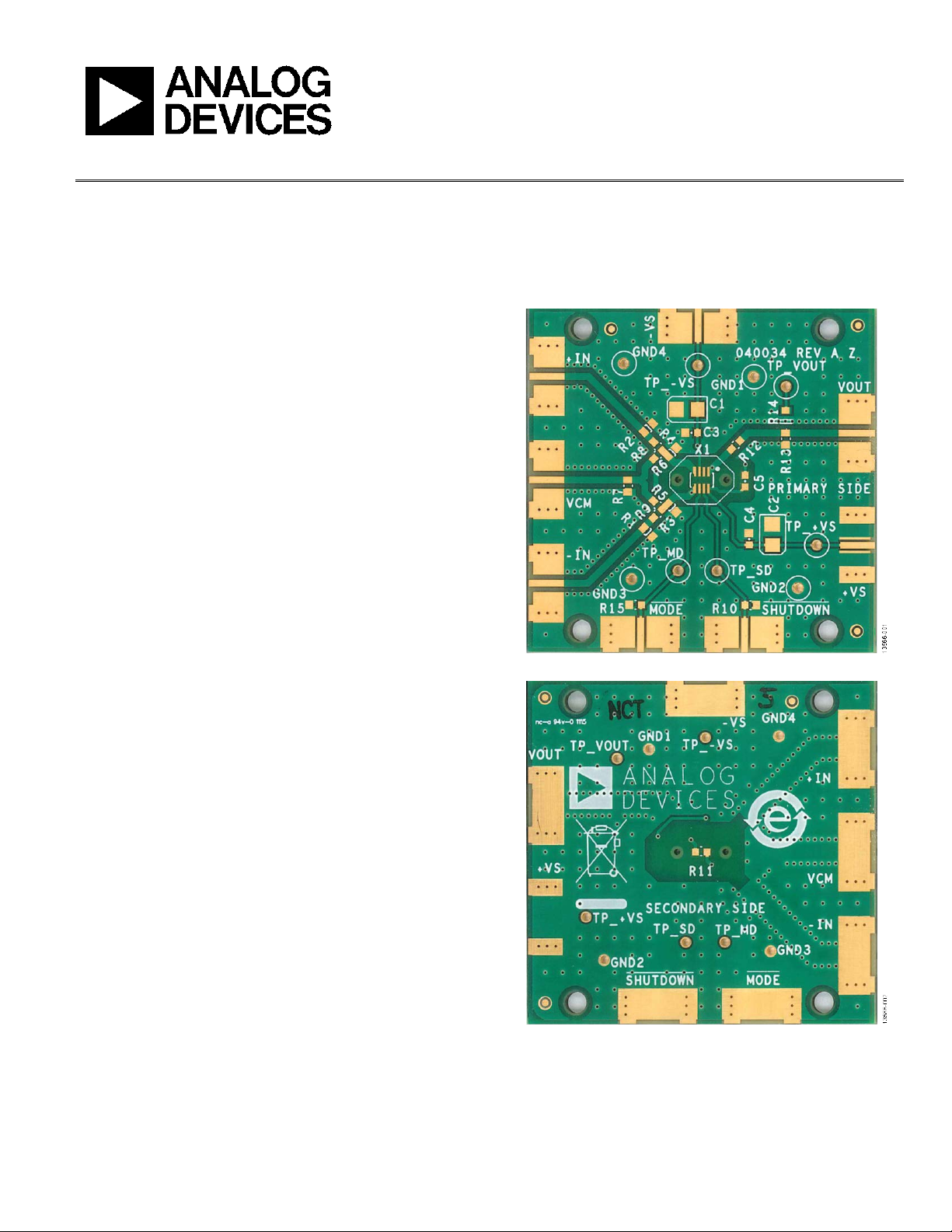

Figure 1. ADA4806-1RJ-EBZ Evaluation Board, Component Side
Figure 2. ADA4806-1RJ-EBZ Evaluation Board, Solder Side
