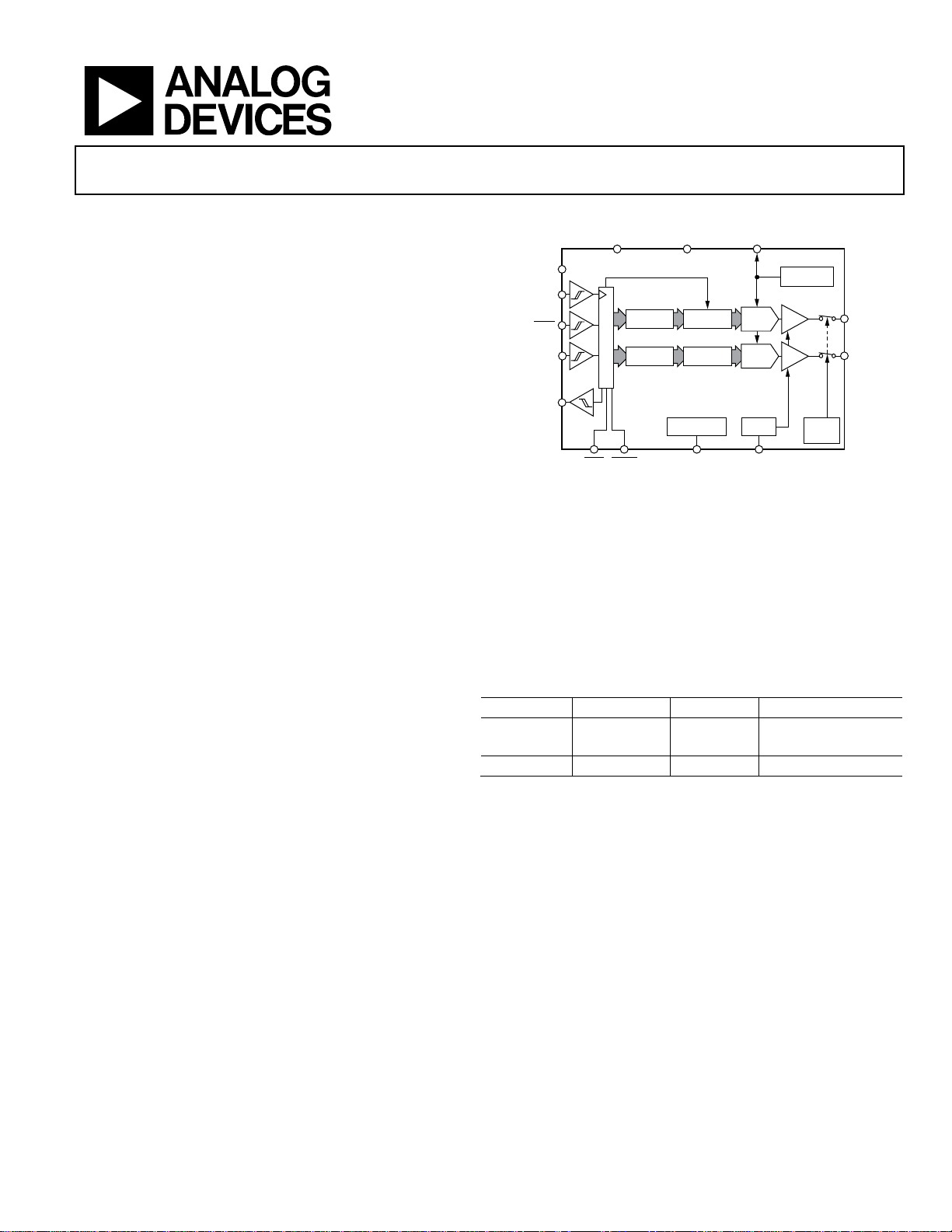

Dual, 16-/12-Bit nanoDAC+
with 2 ppm/°C Reference, SPI Interface
Data Sheet
AD5689R/AD5687R
Rev. B Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2013–2017 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
High relative accuracy (INL): ±2 LSB maximum at 16 bits
Low drift 2.5 V reference: 2 ppm/°C typical
Tiny package: 3 mm × 3 mm, 16-lead LFCSP
TUE: ±0.1% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.1% of FSR maximum
High drive capability: 20 mA, 0.5 V from supply rails
User-selectable gain of 1 or 2 (GAIN pin)
Reset to zero scale or midscale (RSTSEL pin)
1.8 V logic compatibility
50 MHz SPI with readback or daisy chain
Low glitch: 0.5 nV-sec
Low power: 3.3 mW at 3 V
2.7 V to 5.5 V power supply
−40°C to +105°C temperature range
APPLICATIONS
Optical transceivers
Base station power amplifiers
Process control (PLC I/O cards)
Industrial automation
Data acquisition systems
FUNCTIONAL BLOCK DIAGRAM
SCLK
V
LOGIC
SYNC
SDIN
SDO
INPUT
REGISTER
DAC
REGISTER
STRING
DAC A
BUFFER
V
OUT
A
INPUT
REGISTER
DAC
REGISTER
STRING
DAC B
BUFFER
V
OUT
B
V
REF
GND
V
DD
POWER-
DOWN
LOGIC
POWER-ON
RESET
GAIN =
×1/×2
INTERFACE LOGIC
RSTSEL GAIN
LDAC RESET
AD5689R/AD5687R
2.5V
REFERENCE
11256-001
Figure 1.
GENERAL DESCRIPTION
The AD5689R/AD5687R members of the nanoDAC+™
family are low power, dual, 16-/12-bit buffered voltage output
digital-to-analog converters (DACs). The devices include
a 2.5 V, 2 ppm/°C internal reference (enabled by default)
and a gain select pin giving a full-scale output of 2.5 V
(gain = 1) or 5 V (gain = 2). The devices operate from
a single 2.7 V to 5.5 V supply, are guaranteed monotonic
by design, and exhibit less than 0.1% FSR gain error and
1.5 mV offset error performance. Both devices are available
in a 3 mm × 3 mm LFCSP and a TSSOP package.
The AD5689R/AD5687R also incorporate a power-on reset
circuit and a RSTSEL pin that ensure that the DAC outputs
power up to zero scale or midscale and remain there until
a valid write takes place. Each part contains a per channel
power-down feature that reduces the current consumption
of the device to 4 µA at 3 V while in power-down mode.
The AD5689R/AD5687R use a versatile serial peripheral
interface (SPI) that operates at clock rates up to 50 MHz.
and both devices contain a V
LOGIC
pin that is intended for
1.8 V/3 V/5 V logic.
Table 1. Dual nanoDAC+ Devices
Interface Reference 16-Bit 12-Bit
SPI Internal AD5689R AD5687R
External AD5689 AD5687
I
2
C Internal AD5697R
PRODUCT HIGHLIGHTS
1. High Relative Accuracy (INL).
AD5689R (16-bit): ±2 LSB maximum
AD5687R (12-bit): ±1 LSB maximum
2. Low Drift 2.5 V On-Chip Reference.
2 ppm/°C typical temperature coefficient
5 ppm/°C maximum temperature coefficient
3. Two Package Options.
3 mm × 3 mm, 16-lead LFCSP
16-lead TSSOP
