Dual 12-Bit, High Bandwidth, Multiplying DAC
with 4-Quadrant Resistors and Serial Interface
Data Sheet
AD5415
Rev. F Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2004–2015 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
10 MHz multiplying bandwidth
On-chip 4-quadrant resistors allow flexible output ranges
INL of ±1 LSB
24-lead TSSOP package
2.5 V to 5.5 V supply operation
±10 V reference input
50 MHz serial interface
2.47 MSPS update rate
Extended temperature range: −40°C to 125°C
4-quadrant multiplication
Power-on reset
0.5 µA typical current consumption
Guaranteed monotonic
Daisy-chain mode
Readback function
APPLICATIONS
Portable battery-powered applications
Waveform generators
Analog processing
Instrumentation applications
Programmable amplifiers and attenuators
Digitally controlled calibration
Programmable filters and oscillators
Composite video
Ultrasound
Gain, offset, and voltage trimming
GENERAL DESCRIPTION
The AD5415
1
is a CMOS, 12-bit, dual-channel, current output
digital-to-analog converter (DAC). This device operates from a
2.5 V to 5.5 V power supply, making it suited to battery-powered
applications and other applications. As a result of being manufac-
tured on a CMOS submicron process, this device offers excellent
4-quadrant multiplication characteristics with large signal
multiplying bandwidths of 10 MHz.
The applied external reference input voltage (V
REF
) determines
the full-scale output current. An integrated feedback resistor (R
FB
)
provides temperature tracking and full-scale voltage output when
combined with an external current to voltage precision amplifier.
In addition, this device contains the 4-quadrant resistors necessary
for bipolar operation and other configuration modes.
This DAC uses a double-buffered, 3-wire serial interface that is
compatible with SPI®, QSPI™, MICROWIRE™, and most DSP
interface standards. In addition, a serial data out pin (SDO) allows
daisy-chaining when multiple packages are used. Data readback
allows the user to read the contents of the DAC register via the
SDO pin. On power-up, the internal shift register and latches
are filled with 0s, and the DAC outputs are at zero scale.
The AD5415 DAC is available in a 24-lead TSSOP package. The
EV-AD5415/49SDZ evaluation board is available for evaluating
DAC performance. For more information, see UG-296, Evaluating
the AD5415 Serial Input, Dual-Channel Current Output DAC.

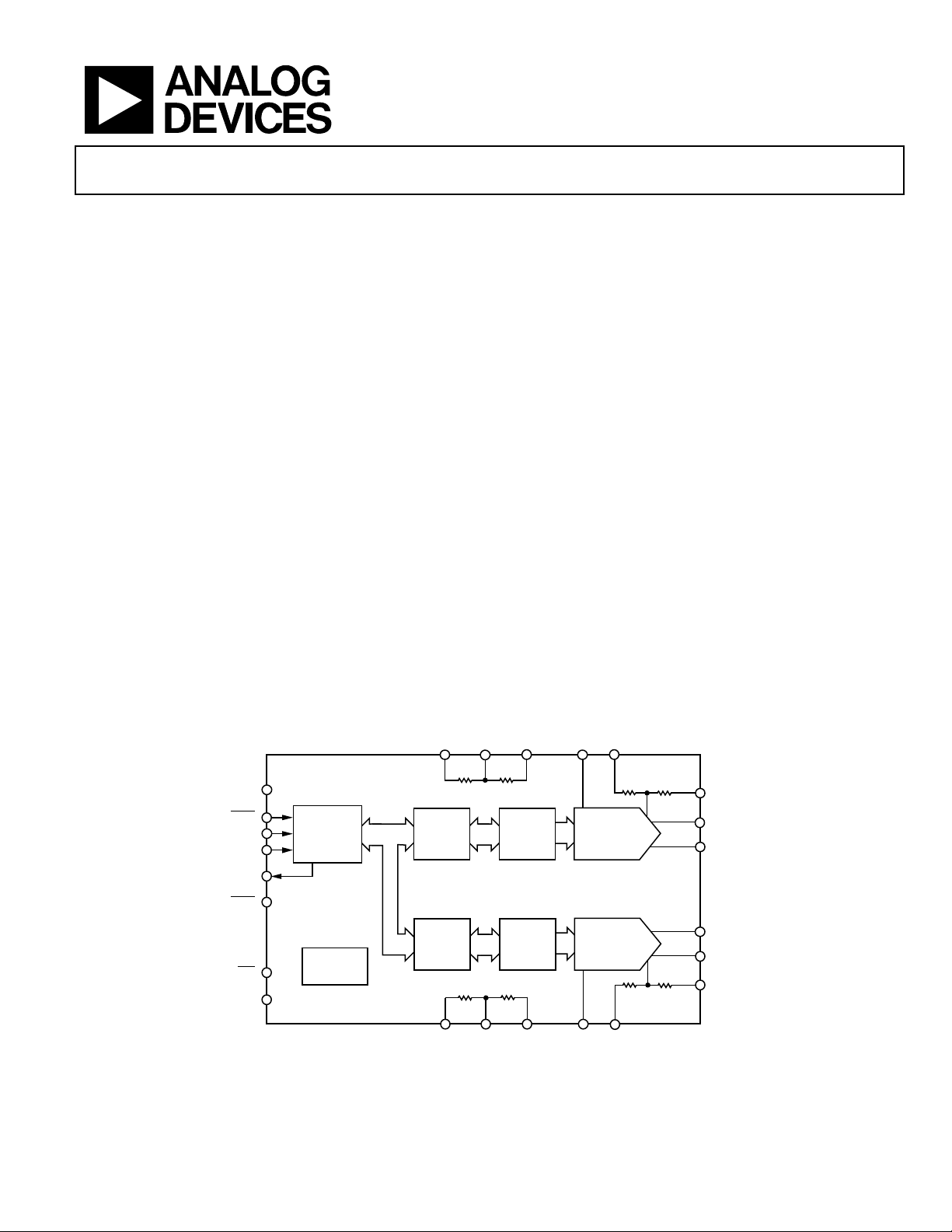

FUNCTIONAL BLOCK DIAGRAM
POWER-ON
RESET
INPUT
REGISTER
DAC
REGISTER
12-BIT
R-2R DAC B
INPUT
REGISTER
DAC
REGISTER
12-BIT
R-2R DAC A
SHIFT
REGISTER
V
DD
SCLK
SDIN
GND
SDO
SYNC
LDAC
R3
2R
R2
2R
R1
2R
R
FB
2R
R1
2R
R
FB
2R
R3
2R
R2
2R
AD5415
R3A R2_3A
R2A V
REF
A R1A
R3B R2_3B R2B V
REF
B R1B
R
FB
A
I
OUT
1A
I
OUT
2A
I
OUT
1B
I
OUT
2B
R
FB
B
CLR
04461-001
Figure 1.
1
U.S. Patent Number 5,689,257.
