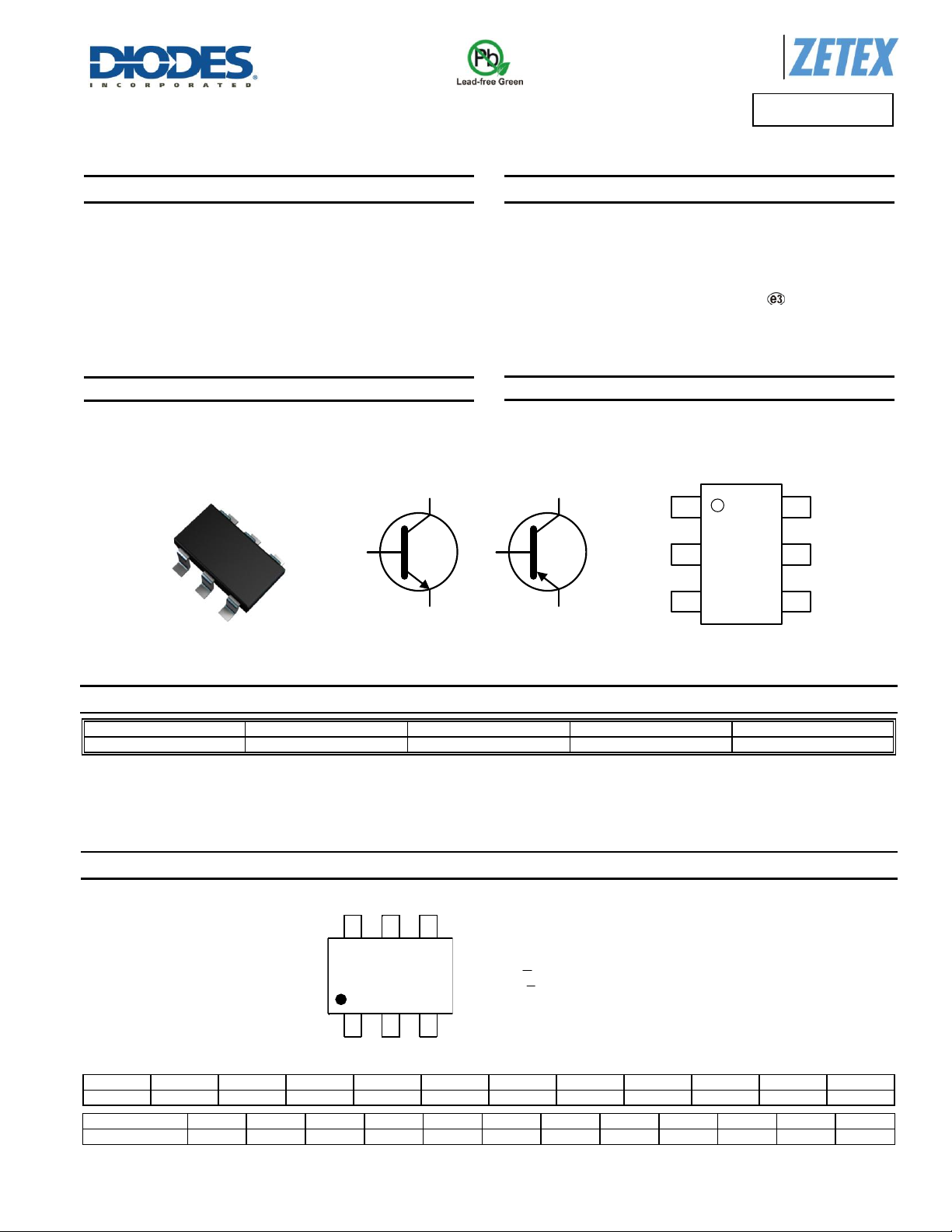

ZXTC2063E6
ADVANCE INFO R MA T I O N
A Product Line of
Diodes Incorporated
40V COMPLEMENTARY MEDIUM POWER TRANSISTOR IN SOT26
Features
NPN + PNP Combination
BV
CEO
> 40 (-40)V
BV
ECO
> 6 (-3)V
I
CM
= 9 (-9)A Peak Pulse Current
V
CE(sat)
< 60 (-90)mV @ 1A
R
CE(sat)
= 38 (58)mΩ
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
Advanced process capability is used to achieve this high performance
device. Combining NPN and PNP transistors in the SOT26 package
provides a compact solution for the intended applications.
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads,
Solderable per MIL-STD-202, Method 208
Weight: 0.015 grams (Approximate)
Applications
MOSFET and IGBT Gate Driving
Motor Drive
Ordering Information (Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTC2063E6TA
2063
7
8
3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/ for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SOT26
Date Code Key
Year
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
Code
C
D
E
F
G
H
I
J
K
L
M
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
Device Symbol
SOT26
Top View
Pin-Out
C1
E1
B1
C2
E2
B2
Q1
Q2
C1
B1
C2
E1
B2
E2
2063 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: C = 2015)
M or M = Month (ex: 9 = September)
YM
2063
