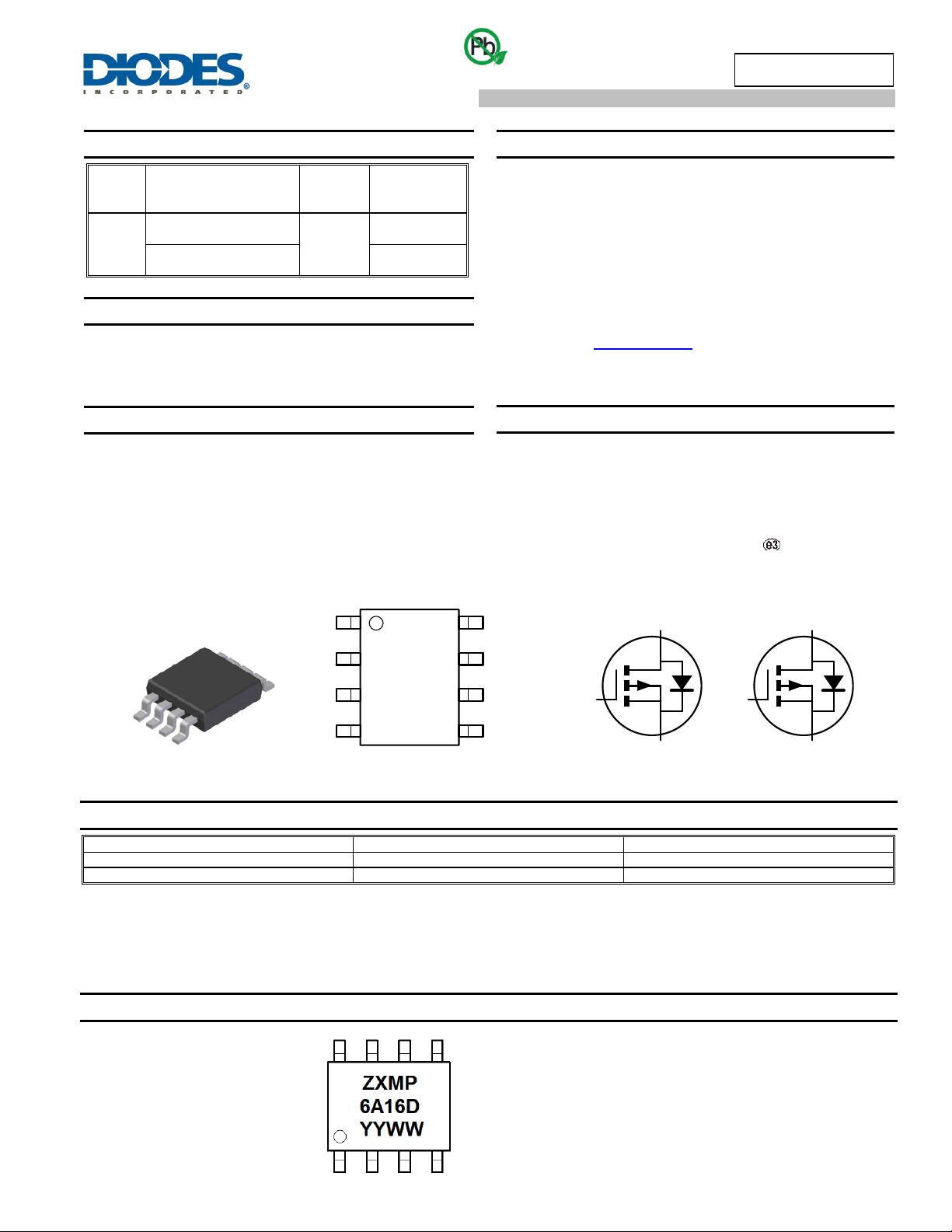

ZXMP6A16DN8
Document number: DS33586 Rev. 5 - 2
1 of 8
www.diodes.com
June 2016
© Diodes Incorporated
ZXMP6A16DN8
DUAL P-CHANNEL 60V ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
Max
Package
I
D
T
A
= +25°C
(Notes 4 & 6)
-60V
85mΩ @ V
GS
= -10V
SO-8
-3.9A
125mΩ @ V
GS
= -4.5V
-3.2A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Disconnect Switches
Motor Control
Features
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Drive
Low Profile SOIC Package
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (ZXMP6A16DN8Q)
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
ZXMP6A16DN8TA
SO-8
500/Tape & Reel
ZXMP6A16DN8TC
SO-8
2,500/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Equivalent Circuit
Top View
SO-8
Top View
D1S1
G1
S2
G2
D1
D2
D2
D2
S2
G2
D1
S1
G1
ZXMP6A16D = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 16 = 2016)
WW = Week (01 - 53)
Green
