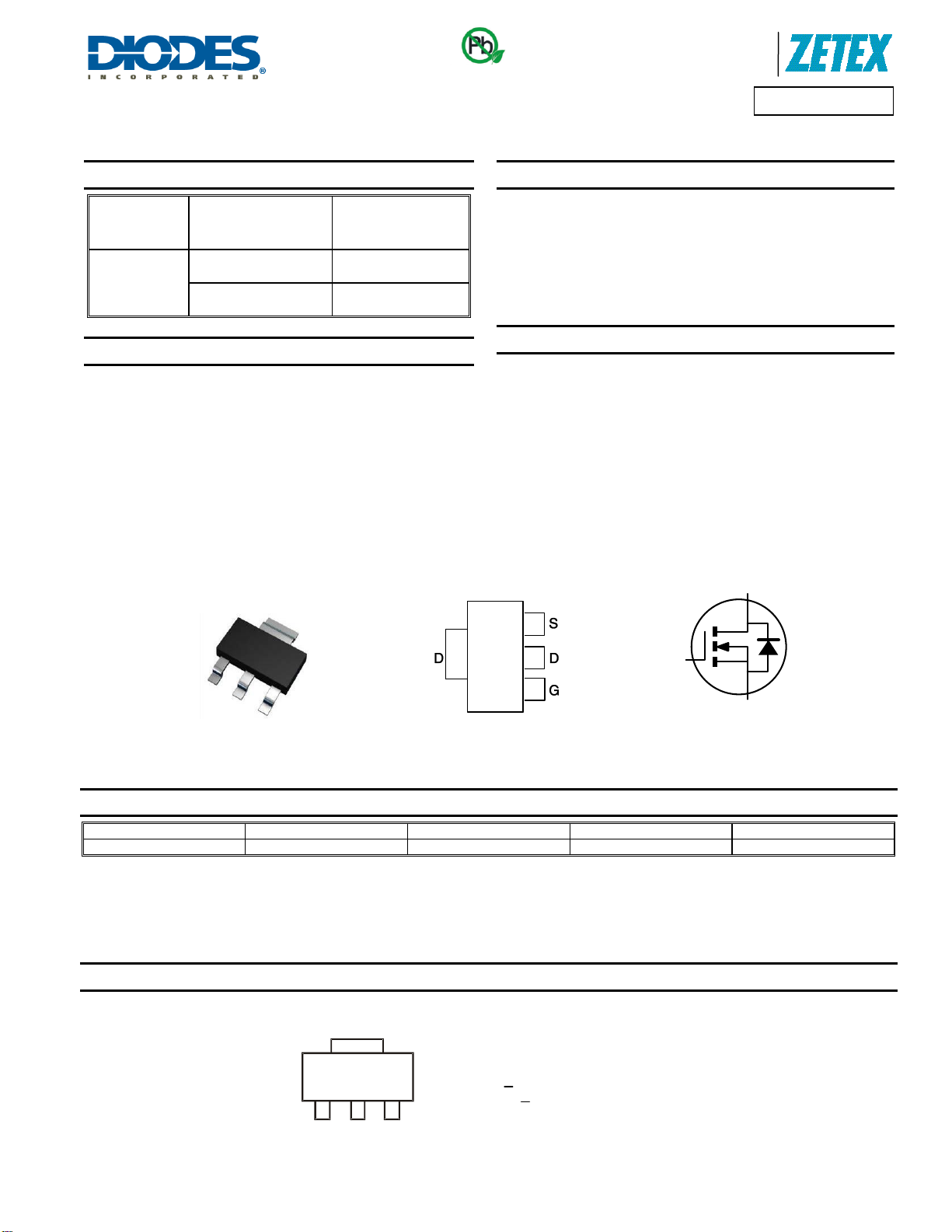

ZXMN6A11G
Document number: DS33556 Rev. 6 - 2
1 of 8
www.diodes.com
March 2015
© Diodes Incorporated
ZXMN6A11G
A Product Line of
Diodes Incorporated
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
60V
120mΩ @ V
GS
= 10V
4.4A
180mΩ @ V
GS
= 4.5V
3.5A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
DC-DC Converters
Power Management Functions
Disconnect Switches
Motor Control
Uninterrupted Power Supply
Features and Benefits
Fast Switching Speed
Low Gate Drive
Low Input Capacitance
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram Below
Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Ordering Information (Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN6A11GTA
See below
7
12
1,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
D
S
G
Equivalent Circuit
Pin Out - Top
View
Top View
SOT223
Green
ZXMN6A11 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
SOT223
4310
YWW
ZVN
6A11
ZXMN
ZXMN
