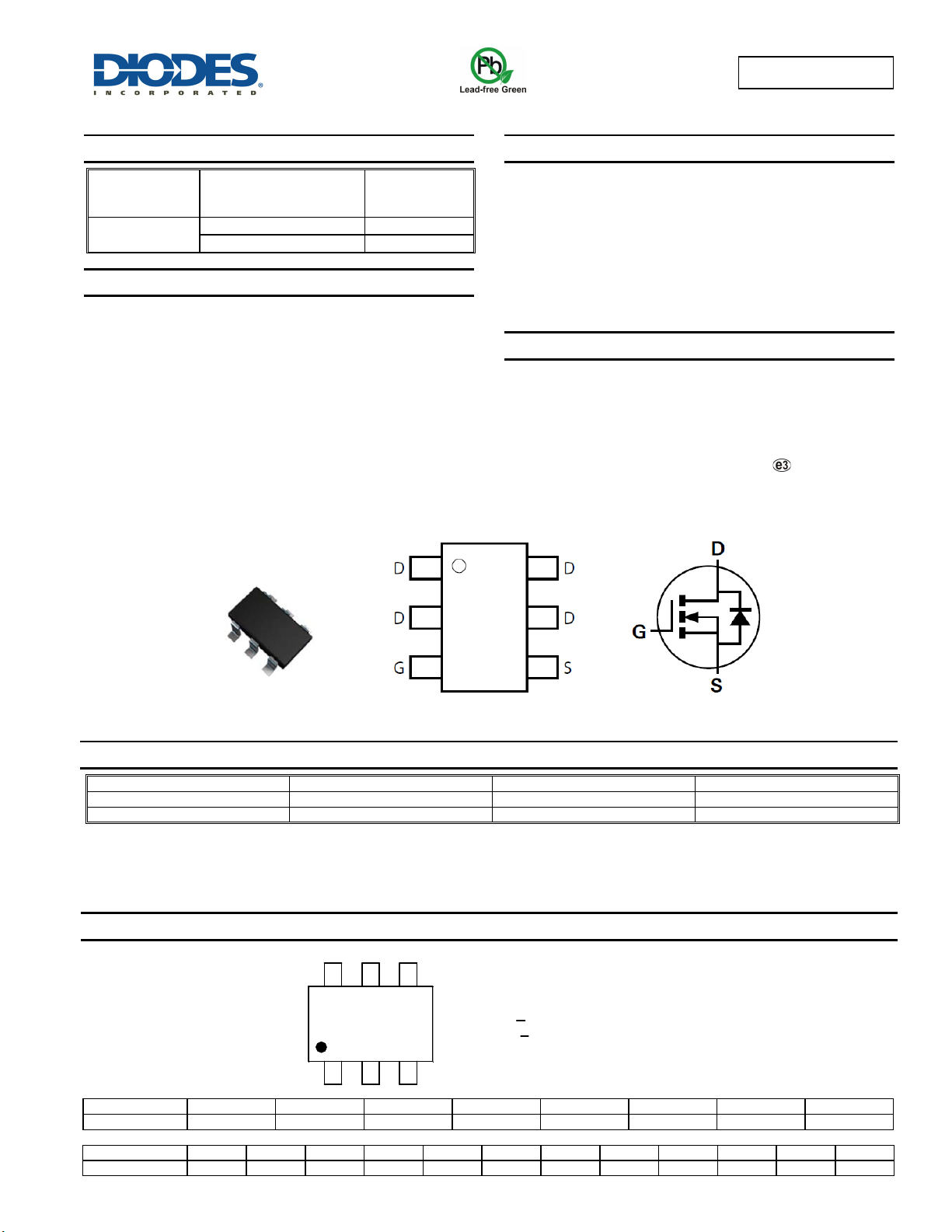

ZXMN10B08E6
Datasheet Number: DS33570 Rev. 3 – 2
1 of 7
www.diodes.com
March 2015
© Diodes Incorporated
ZXMN10
B
08E6
NEW PR O D U C T
YM
10B8
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
Max R
DS(on)
Max I
D
T
A
= +25°
°°
°C
(Note 6)
100V
230mΩ @ V
GS
= 10V
1.9A
300mΩ @ V
GS
= 4.5V
1.68A
Description and Applications
This MOSFET utilizes a unique structure that combines
the benefits
of low on-resistance with fast switching speed. This makes it
ideal for
high-efficiency, low voltage, power management applications.
• DC - DC Converters
• Power Management Functions
• Disconnect Switches
• Motor Control
Features and Benefits
• Low On-Resistance
• Fast Switching Speed
• Low Threshold
• Low Gate Drive
• SOT26 Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT26
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.015 grams (Approximate)
Ordering Information
(Note 4)
Part Number
Reel Size
(inch)
Tape Width
(mm)
Quantity Per Reel
ZXMN10B08E6TA 7 8 3,000
ZXMN10B08E6TC 13 8 10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SOT26
Date Code Key
Year
2015
2016
2017
20
18
201
9
20
20
20
21
20
22
Code
C D E F G H I J
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Top View
Pinout Top-view Device Symbol
SOT
26
10B8 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: C = 2015)
M or M = Month (ex: 9 = September)
