ZXMN10A08E6
Datasheet Number: DS31909 Rev. 9 – 2
1 of 7
www.diodes.com
March 2015
© Diodes Incorporated
ZXMN10A08E6
NEW PROD UCT
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(on)
Max I
D
T
A
= 25C
(Note 5)
100V
250mΩ @ V
GS
= 10V
1.9A
300mΩ @ V
GS
= 6V
1.68A
Description and Applications
This MOSFET features a unique structure, combining the benefits of
low on-resistance and fast switching, making it ideal for high-
efficiency, power management applications.
DC - DC Converters
Power Management Functions
Disconnect Switches
Motor Control
Features and Benefits
Low On-Resistance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT26
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.015 grams (Approximate)
Ordering Information (Note 4)
Part Number
Reel Size (inch)
Tape Width (mm)
Quantity Per Reel
ZXMN10A08E6TA
7
8
3000
ZXMN10A08E6TC
13
8
10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SOT26
Date Code Key
Year
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
Code
C
D
E
F
G
H
I
J
K
L
M
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D

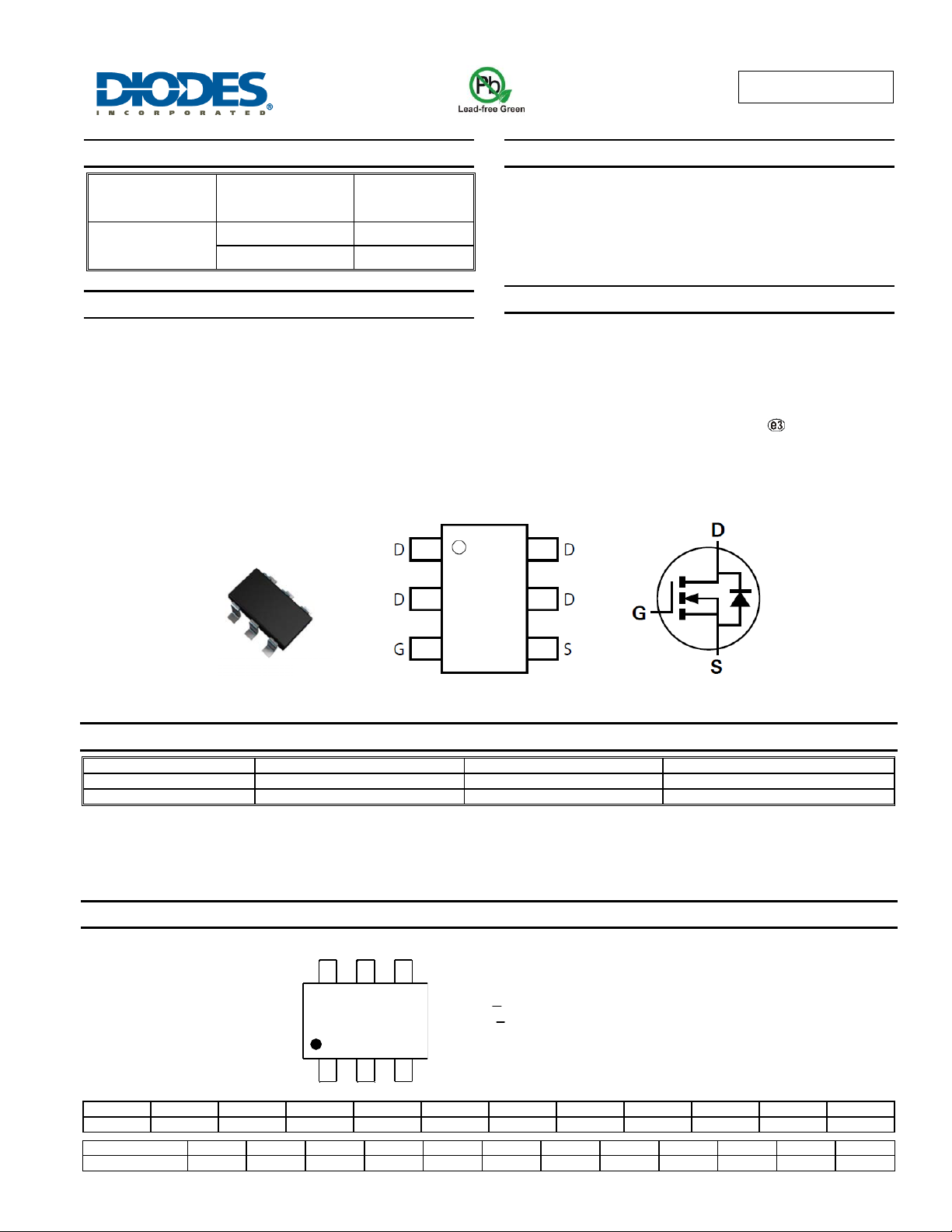

Top View
Pinout Top-view
Device symbol
SOT26
10A8 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: C = 2015)
M or M = Month (ex: 9 = September)
YM
10A8
