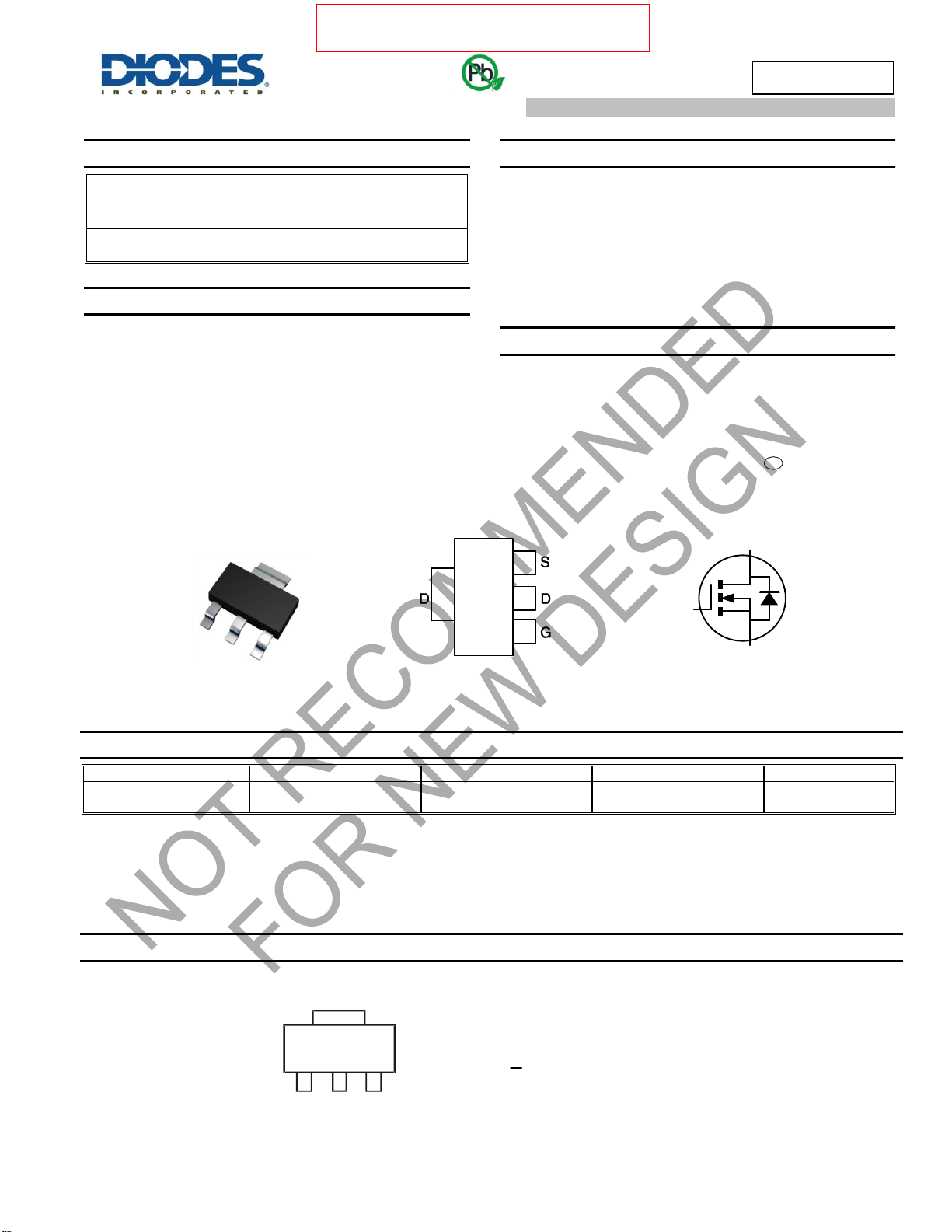

ZXM62N03G
Document number: DS33481 Rev. 4 - 3
1 of 7
www.diodes.com
January 2017
© Diodes Incorporated
ZXM62N03G
NOT RECOMMENDED FOR NEW DESIGN
USE DMN3032LE and ZXMN6A11G
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
I
D
T
A
= +25°C
30V
0.11Ω @ V
GS
= 10V
4.7A
Description and Applications
This MOSFET has been designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
DC-DC Converters
Audio Output Stage
Relay and Solenoid Driving
Motor Control
Features and Benefits
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Drive
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Ordering Information (Note 4)
Part Number
Marking
Reel Size (inches)
Tape Width (mm)
Quantity Per Reel
ZXM62N03GTA
ZXM62N03
7
12
1,000
ZXM62N03GTC
ZXM62N03
13
12
4,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Equivalent Circuit
D
S
G
Pin Out - Top
View
Top View
SOT223
Green
ZXM62N03 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5 = 2015)
WW or WW = Week Code (01 to 53)
SOT223
4310
YWW
ZVN
ZXM6
2N03
e3
