This is information on a product in full production.
October 2014 DocID022406 Rev 8 1/54
VN7040AS-E, VN7040AJ-E
High-side driver with MultiSense analog feedback for automotive
application
Datasheet
-
production data
Features
• General
– Single channel smart high-side driver with
MultiSense analog feedback
– Very low standby current
– Compatible with 3 V and 5 V CMOS
outputs
• MultiSense diagnostic functions
– Multiplexed analog feedback of: load
current with high precision proportional
current mirror, V
CC
supply voltage and
T
CHIP
device temperature
– Overload and short to ground (power
limitation) indication
– Thermal shutdown indication
– OFF-state open-load detection
– Output short to V
CC
detection
– Sense enable/ disable
• Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Configurable latch-off on overtemperature
or power limitation with dedicated fault
reset pin
– Loss of ground and loss of V
CC
– Reverse battery with external components
– Electrostatic discharge protection
Applications
• All types of automotive resistive, inductive and
capacitive loads
• Specially intended for Automotive Turn
Indicators (up to P27W or SAE1156 and R5W
paralleled or LED Rear Combinations)
Description
The VN7040AS-E and VN7040AJ-E are single
channel high-side drivers manufactured using ST
proprietary VIPower
®
technology and housed in

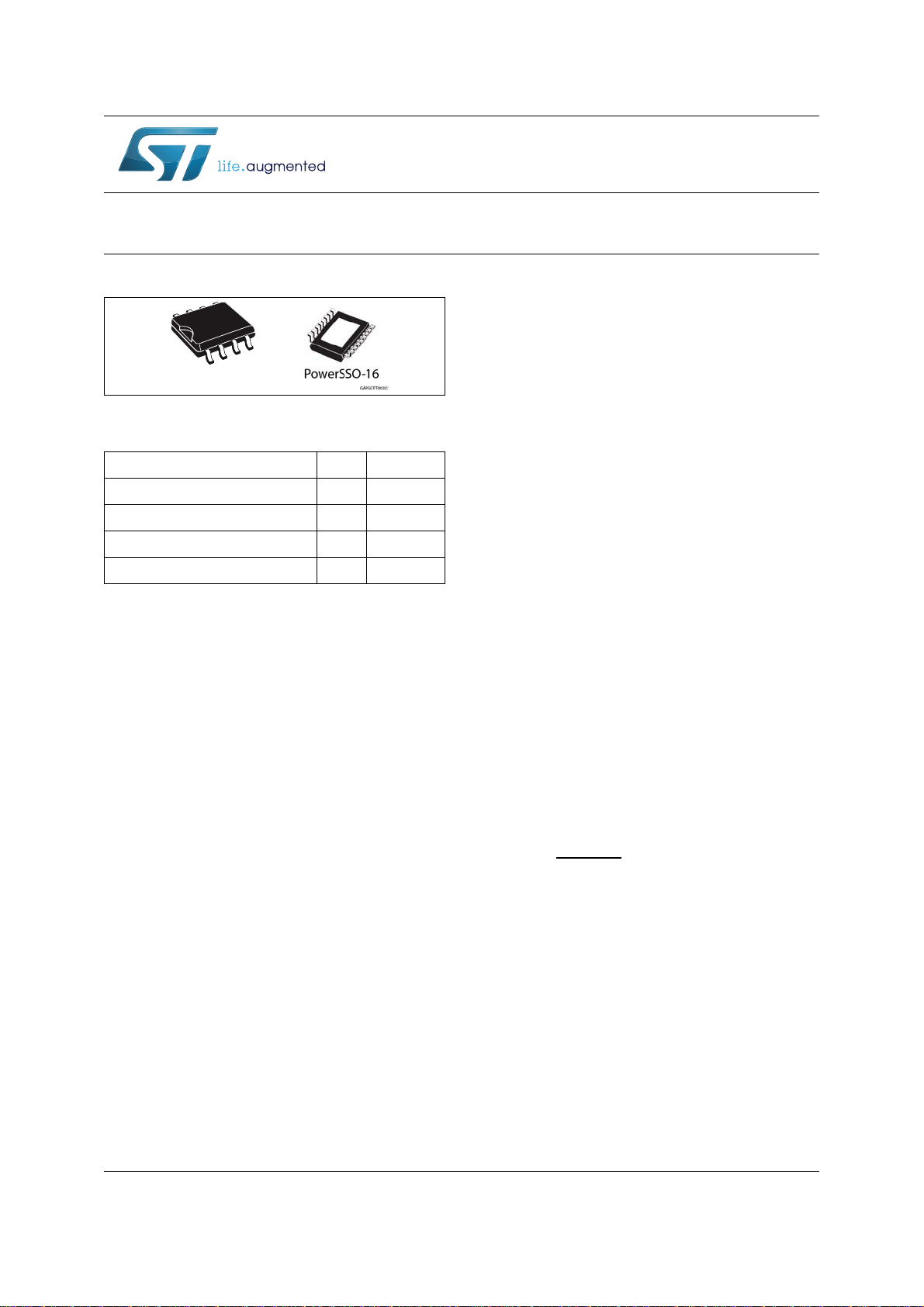

PowerSSO-16 and SO-8 packages. The devices
are designed to drive 12 V automotive grounded
loads through a 3 V and 5 V CMOS compatible
interface, and to provide protection and
diagnostics.
The devices integrate advanced protective
functions such as load current limitation, overload
active management by power limitation and
overtemperature shutdown with configurable
latch-off. A FaultRST
pin unlatches the output in
case of fault or disables the latch-off functionality.
A dedicated multifunction multiplexed analog
output pin delivers sophisticated diagnostic
functions including high precision proportional
load current sense, supply voltage feedback and
chip temperature sense, in addition to the
detection of overload and short circuit to ground,
short to V
CC
and OFF-state open-load.
A sense enable pin allows OFF-state diagnosis to
be disabled during the module low-power mode
as well as external sense resistor sharing among
similar devices.
Max transient supply voltage V
CC
40 V
Operating voltage range V
CC
4 to 28 V
Typ. on-state resistance (per Ch) R
ON
40 mΩ
Current limitation (typ) I
LIMH
34 A
Stand-by current (max) I
STBY
0.5 µA
62
("1($'5
