September 2013 Doc ID 15984 Rev 3 1/37
1

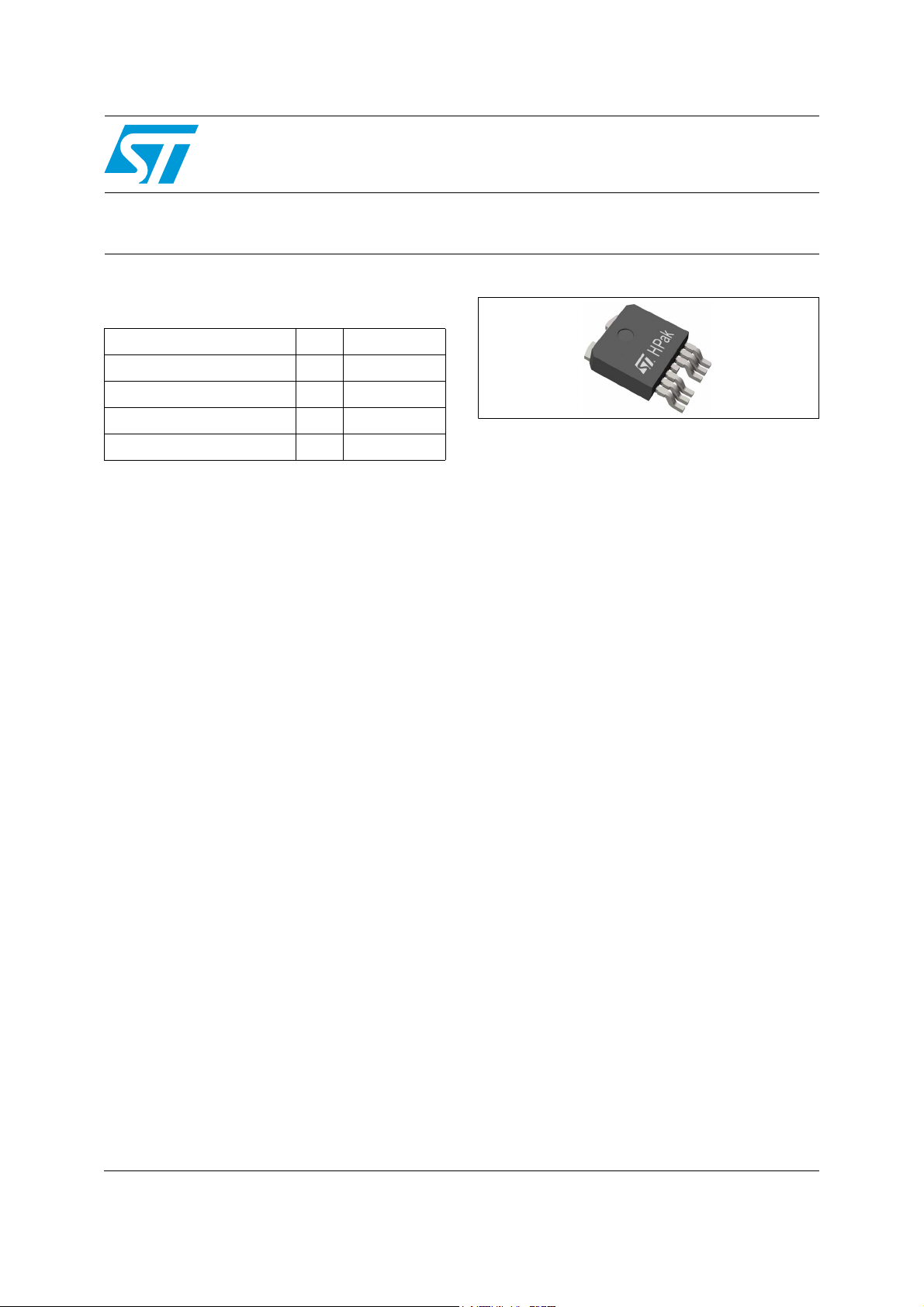

VN5E010AH
10 m high-side driver with analog current sense
for automotive applications
Features
• General
– Inrush current active management by
power limitation
– Very low standby current
– 3 V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC
european directive
– Very low current sense leakage
• Diagnostic functions
– Proportional load current sense
– High current sense precision for wide
current range
– Current sense disable
– OFF-state open-load detection
– Output short to V
CC
detection
– Overload and short to ground (power
limitation) indication
– Thermal shutdown indication
• Protection
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss
of V
CC
– Overtemperature shut down with
autorestart (thermal shutdown)
– Reverse battery protection with self switch
on of the Power MOSFET
(see Figure 32)
– Electrostatic discharge protection
Applications
• All types of resistive, inductive and capacitive
loads
• Suitable as LED driver
Description
The VN5E010AH is a single-channel high-side
driver manufactured in the ST proprietary
VIPower M0-5 technology and housed in the tiny
HPAK package. The VN5E010AH is designed to
drive 12 V automotive grounded loads delivering
protection, diagnostics and easy 3 V and 5 V
CMOS compatible interface with any
microcontroller.
The device integrates advanced protective
functions such as load current limitation, inrush
and overload active management by power
limitation, overtemperature shut-off with auto-
restart and overvoltage active clamp. A dedicated
analog current sense pin is associated with every
output channel in order to provide ehnanced
diagnostic functions including fast detection of
overload and short-circuit to ground through
power limitation indication, overtemperature
indication, short-circuit to Vcc diagnosis and
ON- and OFF-state open-load detection.
The current sensing and diagnostic feedback of
the whole device can be disabled by pulling the
CS_DIS pin high to allow sharing of the external
sense resistor with other similar devices
.
Max supply voltage V
CC
41 V
Operating voltage range V
CC
4.5 V to 28 V
Typ. ON-state resistance R
ON
10 m
Current limitation (typ) I
LIMH
85 A
OFF-state supply current I
S
2 µA
(1)
1. Typical value with all loads connected
www.st.com
