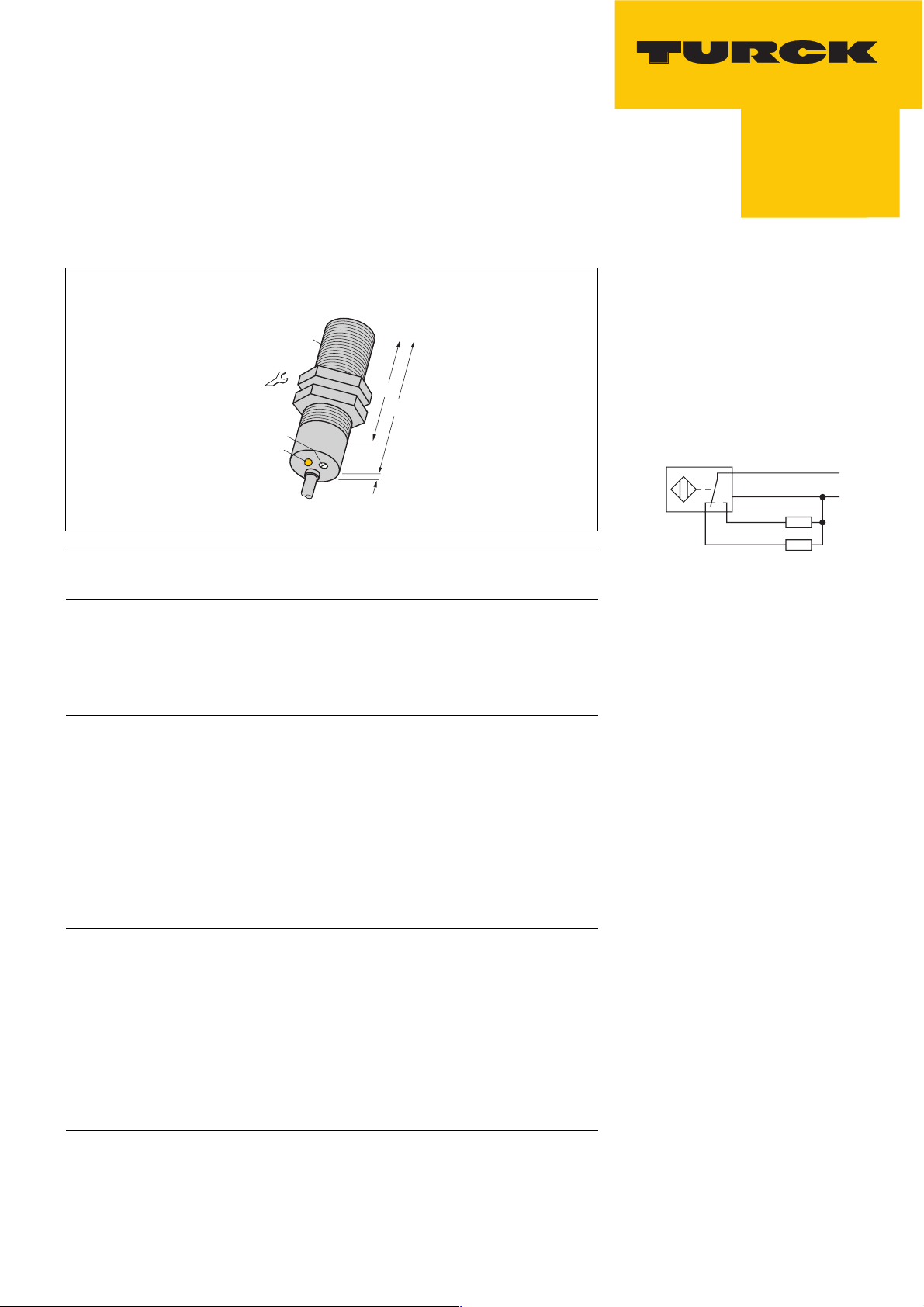

Capacitive sensor
BC10-M30-VP4X
● threaded barrel, M30 x 1,5
● chrome-plated brass
● fine adjustment via potentiometer
● 4-wire DC, 10...65 VDC
● SPDT, pnp output
● cable connection
Wiring diagram
Function principles
Capacitive proximity switches are designed
for non-contact and wear-free detection of
metal (electrically conductive) and non-me-
tal (electrically non-conductive) objects.
+
WH
BK
BN
BU
pnp
Type BC10-M30-VP4X
Ident-No. 25020
Rated operating distance Sn 10 mm, flush mounting
Rated operating distance Sn 10 mm, non-flush mounting
Hysteresis (switching distance) 2... 20 %
Temperature drift ≤ ± 20 %
Min. repeat accuracy ≤ 2 %
Operating temperature -25 ...+ 70 °C
Rated operational voltage (DC) U
B
10... 65 VDC
Max. ripple ≤ 10 % U
pp
Rated operational current (DC) I
e
≤ 200 mA
No-load current I
0
≤ 15 mA
Max. OFF-state current ≤ 0,1 mA
Max. switching frequency ≤ 0,1 kHz
Rated insulation voltage ≤ 0,5 kV
Output function 4-wire, complementary, PNP
Short-circuit protection yes, cyclic
Max. voltage drop at I
e
≤ 1,8 V
Wire breakage / reverse polarity protection yes / complete
Housing style threaded barrel; M30 x 1,5
Dimensions 81 mm
Housing material metal, CuZn, chrome-plated
Active face plastic, PA12-GF30
Max. fixing torque of coupling nut 25 Nm
Wiring cable
Cable Ø 5,2, LifYY, PVC, 2 m
Cable cross section 4 x 0,34 mm
2
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 x g (11 ms)
Degree of protection IP67
Switching status indication LED yellow
36/5
Pot.
M30 x 1,5
61
LED
81
3
