Data Sheet 1 Rev.1.1, 2007-07-31
Description
The TLE 5206-2 is an integrated power H-bridge with DMOS output stages for driving
DC-Motors. The part is built using the Infineon multi-technology process SPT
®
which
allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the
same monolithic structure.
Operation modes forward (cw), reverse (ccw), brake high and brake low are invoked
from just two control pins with TTL/CMOS compatible levels. The combination of an
extremely low
R
DS ON
and the use of a power IC package with low thermal resistance and
high thermal capacity helps to minimize system power dissipation. A blocking capacitor
at the supply voltage is the only external circuitry due to the integrated freewheeling
diodes.
1Overview
1.1 Features
• Delivers up to 5 A continuous 6 A peak current
• Optimized for DC motor management applications
• Operates at supply voltages up to 40 V
•Very low
R
DS ON
; typ. 200 mΩ @25°C per switch
• Output full short circuit protected
• Overtemperature protection with hysteresis
and diagnosis
• Short circuit diagnosis with open drain error flag
• Undervoltage lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal freewheeling diodes
• Wide temperature range; − 40 °C<
T
j
< 150 °C
• Green Product (RoHS compliant)
• AEC Qualified

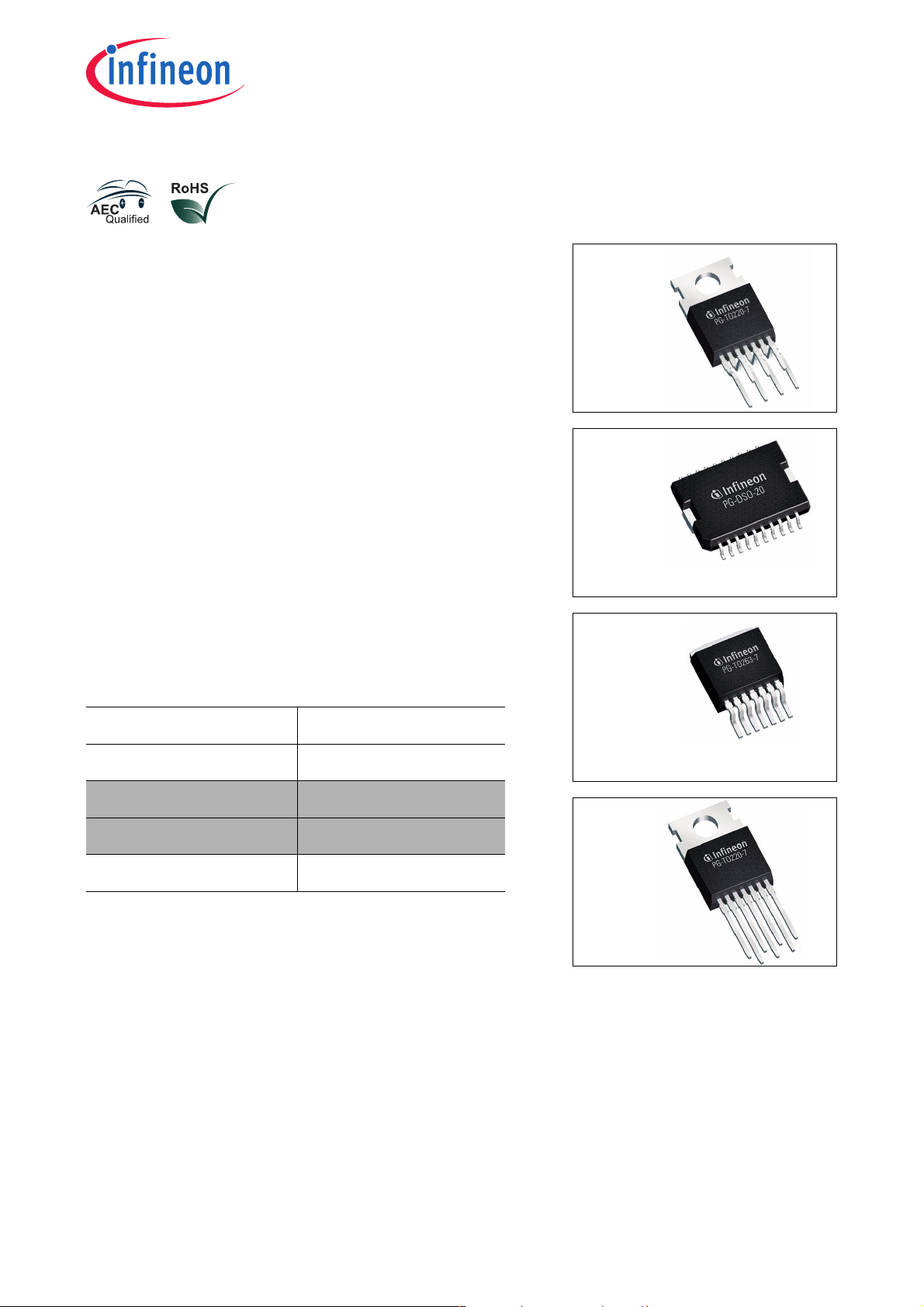

Type Package
TLE 5206-2 PG-TO220-7-11
TLE 5206-2GP PG-DSO-20-37
TLE 5206-2G PG-TO263-7-1
TLE 5206-2S PG-TO220-7-12
5-A H-Bridge for DC-Motor Applications TLE 5206-2
PG-TO220-7-11
PG-DSO-20-37
PG-TO263-7-1
PG-TO220-7-12
