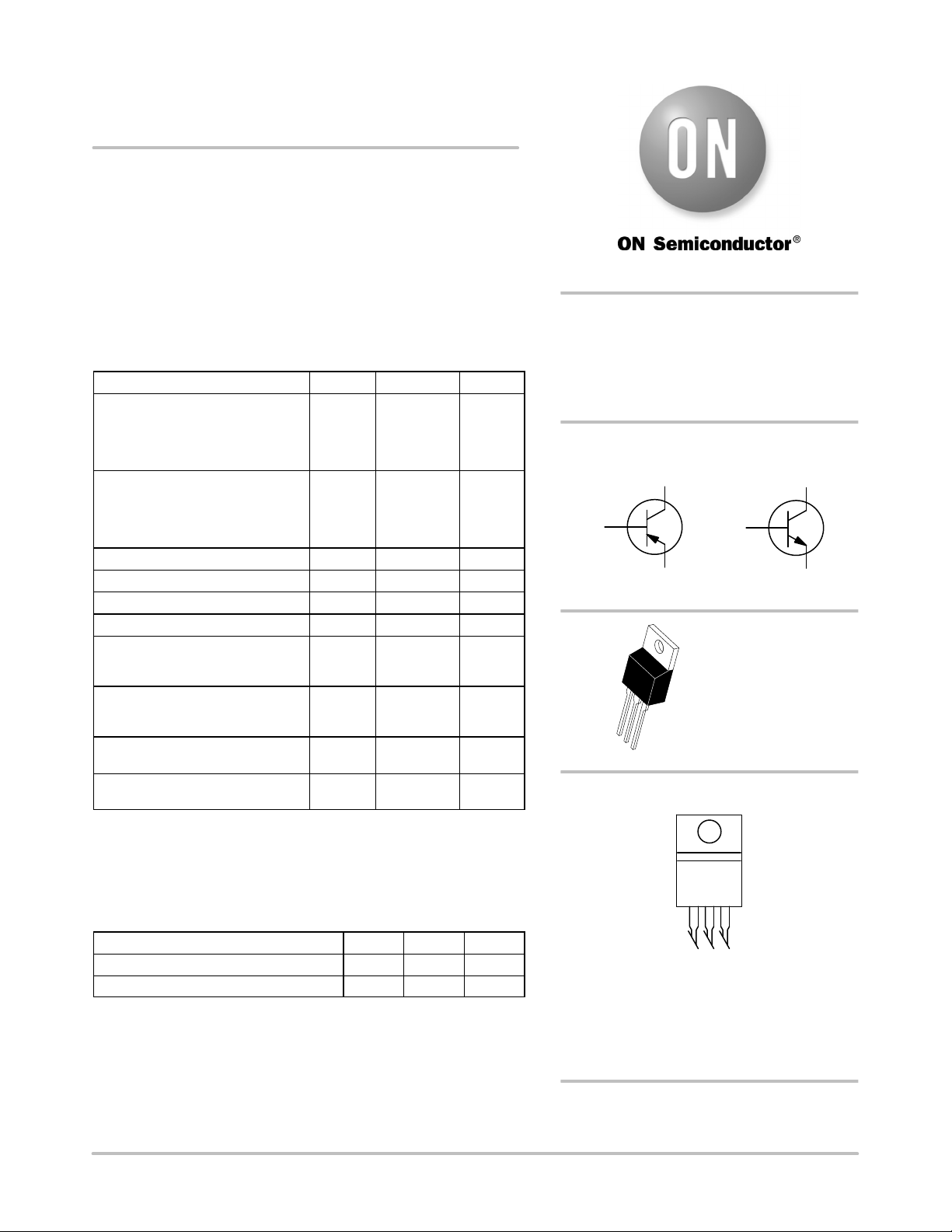

TIP29, A, B, C (NPN),
TIP30, A, B, C (PNP)
Complementary Silicon
Plastic Power Transistors
Designed for use in general purpose amplifier and switching
applications. Compact TO−220 package.
Features
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector − Emitter Voltage
TIP29G, TIP30G
TIP29AG, TIP30AG
TIP29BG, TIP30BG
TIP29CG, TIP30CG
V
CEO
40
60
80
100
Vdc
Collector − Base Voltage
TIP29G, TIP30G
TIP29AG, TIP30AG
TIP29BG, TIP30BG
TIP29CG, TIP30CG
V
CB
40
60
80
100
Vdc
Emitter − Base Voltage V
EB
5.0 Vdc
Collector Current − Continuous I
C
1.0 Adc
Collector Current − Peak I
CM
3.0 Adc
Base Current I
B
0.4 Adc
Total Power Dissipation
@ T
C
= 25°C
Derate above 25°C
P
D
30
0.24
W
W/°C
Total Power Dissipation
@ T
A
= 25°C
Derate above 25°C
P
D
2.0
0.016
W
W/°C
Unclamped Inductive Load Energy
(Note 1)
E 32 mJ
Operating and Storage Junction
Temperature Range
T
J
, T
stg
–65 to +150 °C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. This rating based on testing with L
C
= 20 mH, R
BE
= 100 W, V
CC
= 10 V,
I
C
= 1.8 A, P.R.F = 10 Hz
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Ambient
R
q
JA
62.5 °C/W
Thermal Resistance, Junction−to−Case
R
q
JC
4.167 °C/W
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
TO−220
CASE 221A
STYLE 1
MARKING DIAGRAM
1 AMPERE
POWER TRANSISTORS
COMPLEMENTARY SILICON
40, 60, 80, 100 VOLTS,
80 WATTS
http://onsemi.com
1
2
3
4
TIPxxx = Device Code:
29, 29A, 29B, 29C
30, 30A, 30B, 30C
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
TIPxxxG
AYWW
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
1
BASE
3
EMITTER
COLLECTOR
2,4
1
BASE
3
EMITTER
COLLECTOR
2,4
PNP NPN
