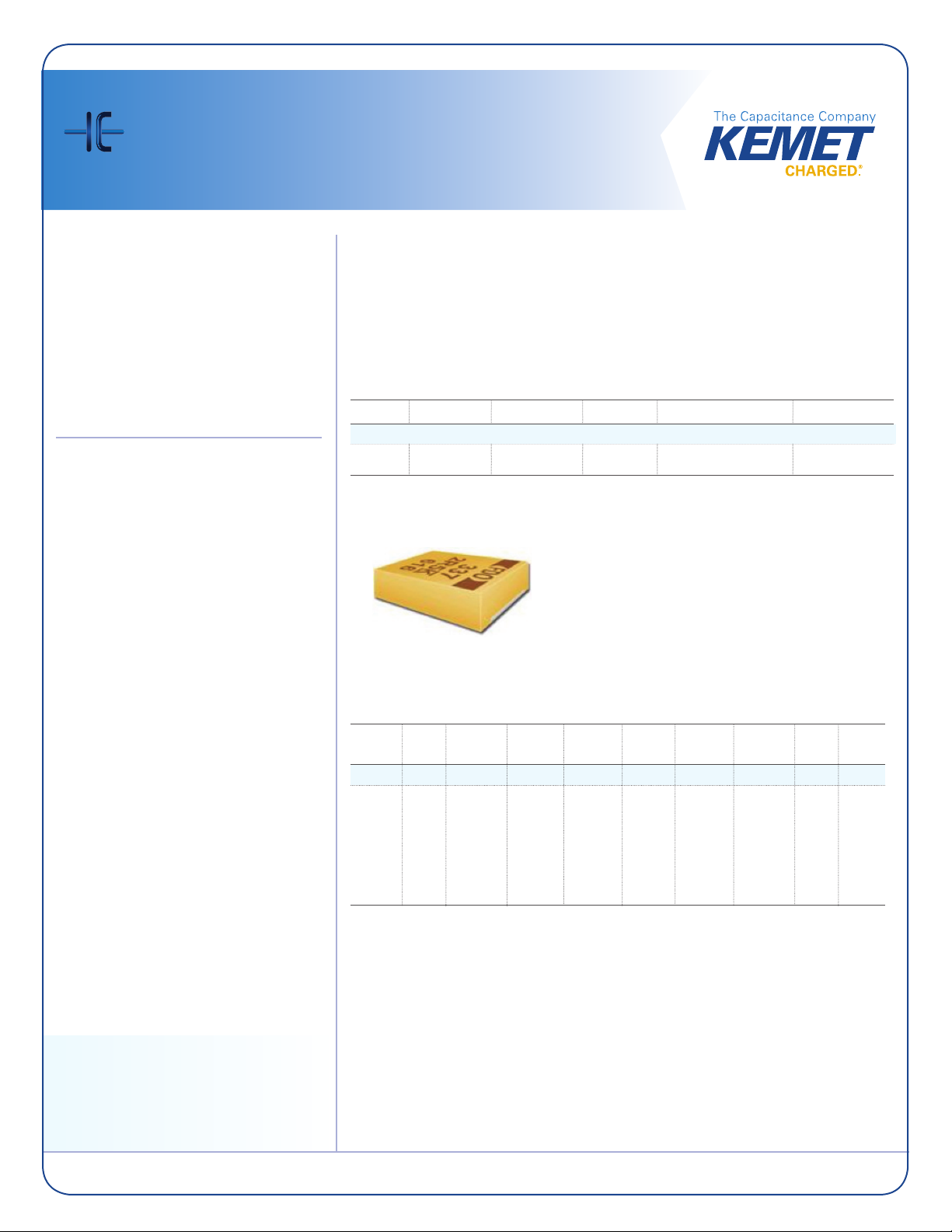

Electrical/Physical Characteristics
Tolerances
M Tolerance (20%)
Temperature Range
-55°C to + 105°C
Voltage Options
2.5 – 10 V
Capacitance Values
150 – 470 µF @ 120 Hz/25° C
Case Sizes
EIA standard
case sizes
T528
Leakage Current
≤ 0.1 CV (µA) at rated
voltage after 5 minutes
For more information, samples
and engineering kits,
please visit us at www.kemet.com
or call 1.877.myKEMET.
Copyright © 2012 KEMET
Programs Supported
• High speed servers
• Microprocessor decoupling
• High ripple current applications
KEMET Organic Capacitor
T528 Low ESL/Facedown Terminal
Polymer Tantalum
Features & Benefits
• Polymer cathode technology
• 100% accelerated steady state aging
• Low ESL < 0.7 nH @ 20 MHz
• 100% surge current tested
• High frequency capacitance retention
• Non-ignition failure mode
• Improved volumetric efficiency
• Self-healing mechanism
• Use up to 90% of rated voltage (10% derating)
• RoHS compliant and halogen free
Product Checklist
• What is the circuit switching frequency?
• What is the circuit operating voltage?
• Are there any environmental concerns?
• Are there any height restrictions?
PRODUCTS
Why Choose KEMET
KEMET applies world-class service and quality
to deliver industry-leading, high performance
capacitance solutions worldwide. With 95% of
possible dielectric solutions, KEMET offers the
world’s most complete line of surface mount
and through-hole capacitor technologies across
tantalum, ceramic, film, aluminum and paper
dielectrics. One world. One KEMET.
SA0912
Ordering Information
T 528 Z 337 M 2R5 T E009 A
Capacitor
Class
T= Tantalum
Series
528 =
Low ESL
Facedown
Terminal
Polymer
Case
Sizes
I = 3216-10
K = 3528-10
W = 7343-15
Z = 7343-17
Capacitance
Code (pF)
First two
digits
represent
significant
figures.
Third digit
specifies
number of
zeros.
Capacitance
Tolerance
M = ±20%
Voltage
2R5 = 2.5 V
003 = 3 V
004 = 4 V
006 = 6.3 V
010 = 10 V
Termination
Finish
T = 100%
Matte Tin (Sn)
Plated*
ESR
Code
E = E S R
Last three
digits
specify
ESR in
m O h m s .
(009 =
9 mOhms)
Packaging
(C-Spec)
Blank =
7” Reel
7280 =
13” Reel
Failure Rate/
Design
A = N/A
