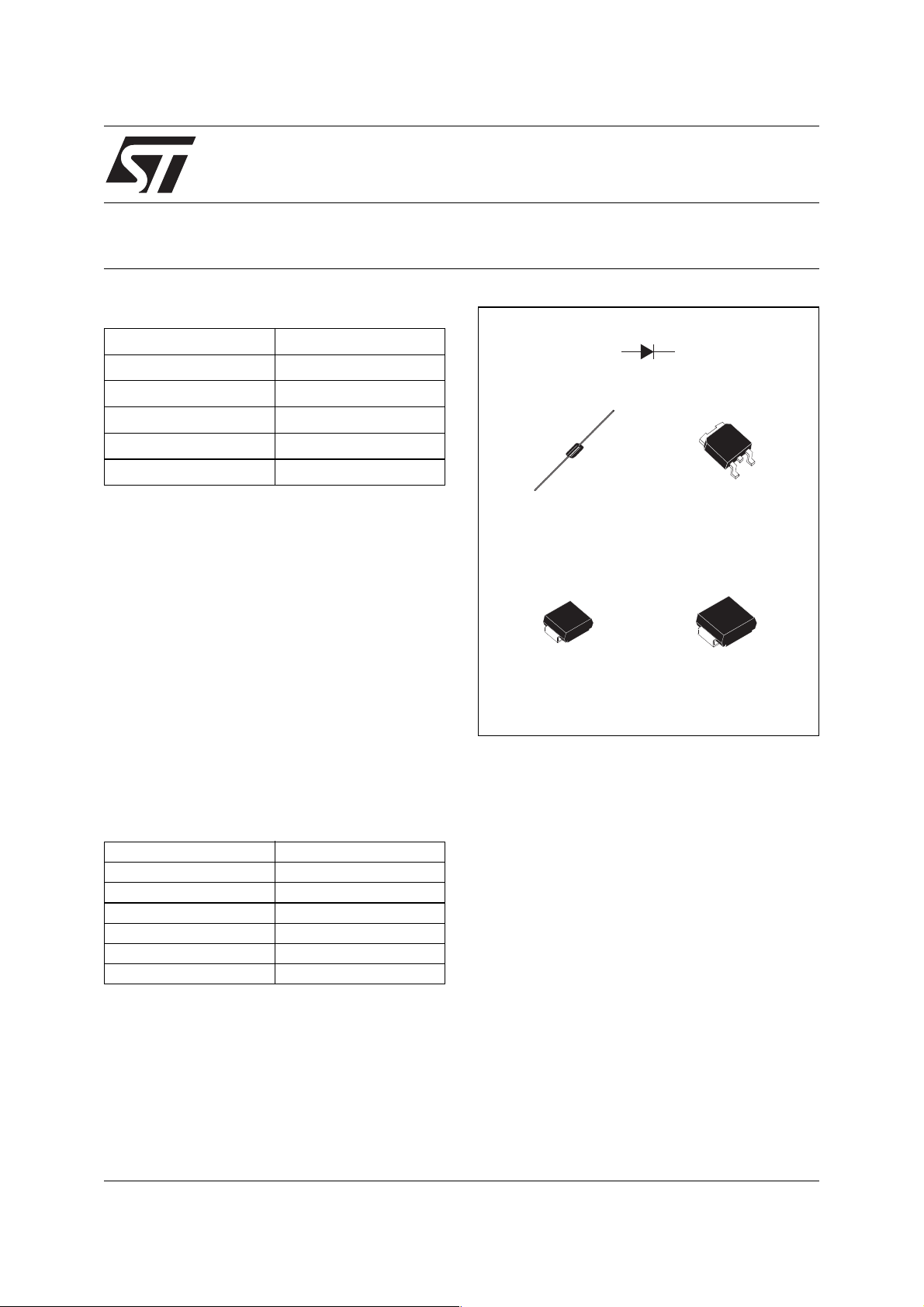

1/10
Table 1: Main Product Characteristics
I
F(AV)
3 A
V
RRM
600 V
I
R
(max)
100 µA
T
j
175°C
V
F
(typ)
0.85 V
t
rr
(typ)
60 ns
STTH3L06
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
SMB
STTH3L06U
SMC
STTH3L06S
DO-201AD
STTH3L06
KA
DPAK
STTH3L06B
K
A
NC
September 2004 REV. 2
FEATURES AND BENEFITS
■ Ultrafast switching
■ Low forward voltage drop
■ Low thermal resistance
■ Low leakage current (platinium doping)
DESCRIPTION
The STTH3L06, which is using ST Turbo 2 600V
technology, is specially suited as boost diode in
discontinuous or critical mode power factor correc-
tions.
This device is intended for use as a free wheeling
diode in power supplies and other power switching
applications.
Table 2: Order Codes
Part Number Marking
STTH3L06 STTH3L06
STTH3L06RL STTH3L06
STTH3L06B STTH3L06B
STTH3L06B-TR STTH3L06B
STTH3L06U 3L06U
STTH3L06S S06
