STTH1L06/U/A
July 2002 - Ed: 3C
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
®
The STTH1L06/U/A, which is using ST Turbo 2
600V technology, is specially suited as boost
diode in discontinuous or critical mode power
factor corrections.
The device is also intended for use as a free
wheeling diode in power supplies and other power
switching applications.
DESCRIPTION
■
Ultrafast switching
■ Low reverse recovery current
■
Reduces switching & conduction losses
■
Low thermal resistance
FEATURES AND BENEFITS
Symbol Parameter Value Unit
V
RRM
Repetitive peak reverse voltage 600 V
I
F(RMS)
RMS forward current DO-41
SMA / SMB
10
7
A
I
F(AV)
Average forward current Tl = 120°C δ = 0.5 DO-41
TI = 135°C δ = 0.5 SMA
TI = 145°C δ = 0.5 SMB
1
1
1
A
I
FSM
Surge non repetitive forward
current
tp = 10 ms Sinusoidal DO-41
tp = 10 ms Sinusoidal SMA / SMB
30
20
A
T
stg
Storage temperature range - 65 + 175 °C
Tj Maximum operating junction temperature + 175 °C
ABSOLUTE RATINGS (limiting values)
I
F(AV)
1A
V
RRM
600 V
I
R
(max) 75 µA
Tj (max) 175 °C
V
F
(max) 1.05 V
trr (max) 80 ns
MAIN PRODUCT CHARACTERISTICS

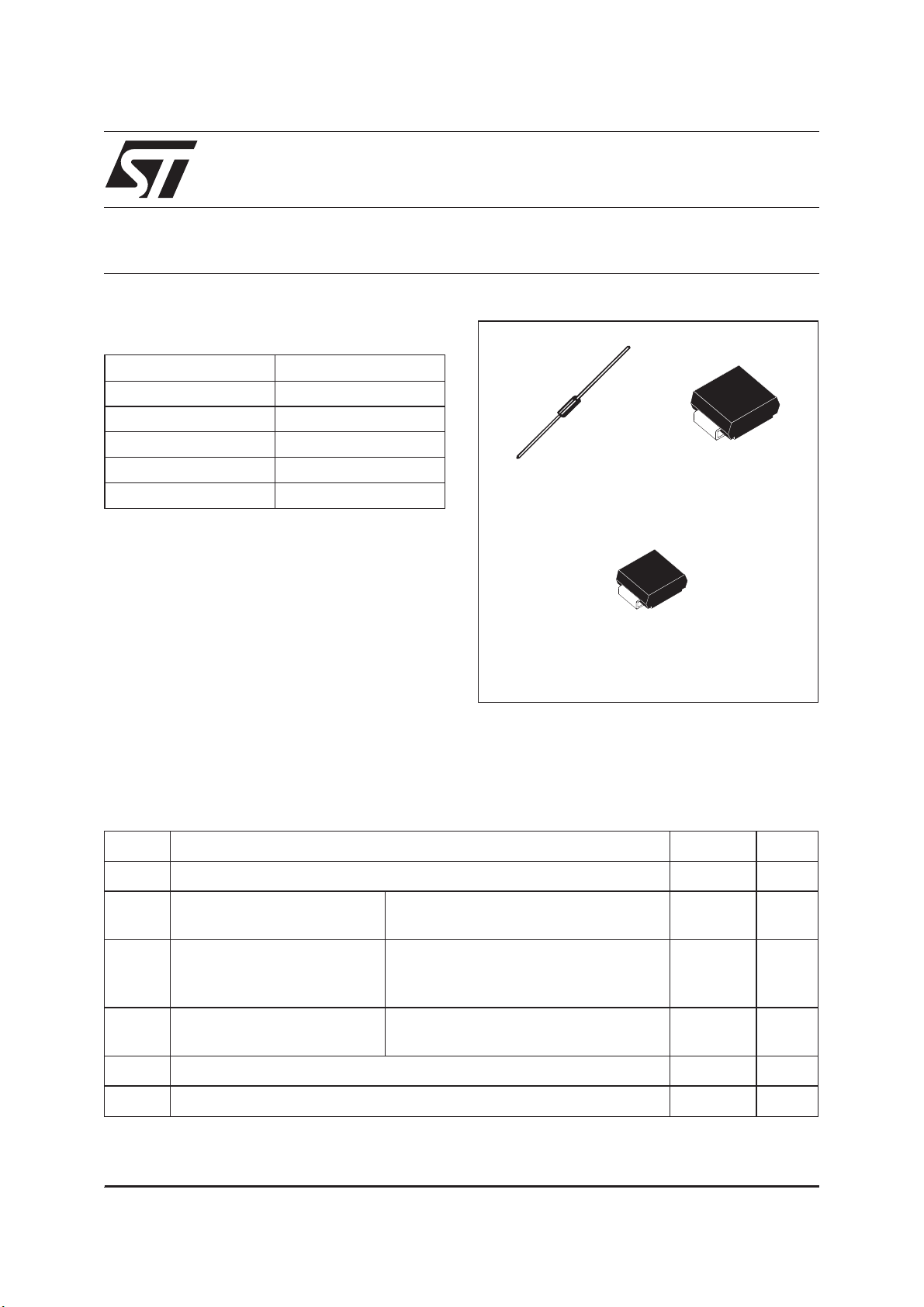

DO-41
STTH1L06
SMB
STTH1L06U
SMA
STTH1L06A
