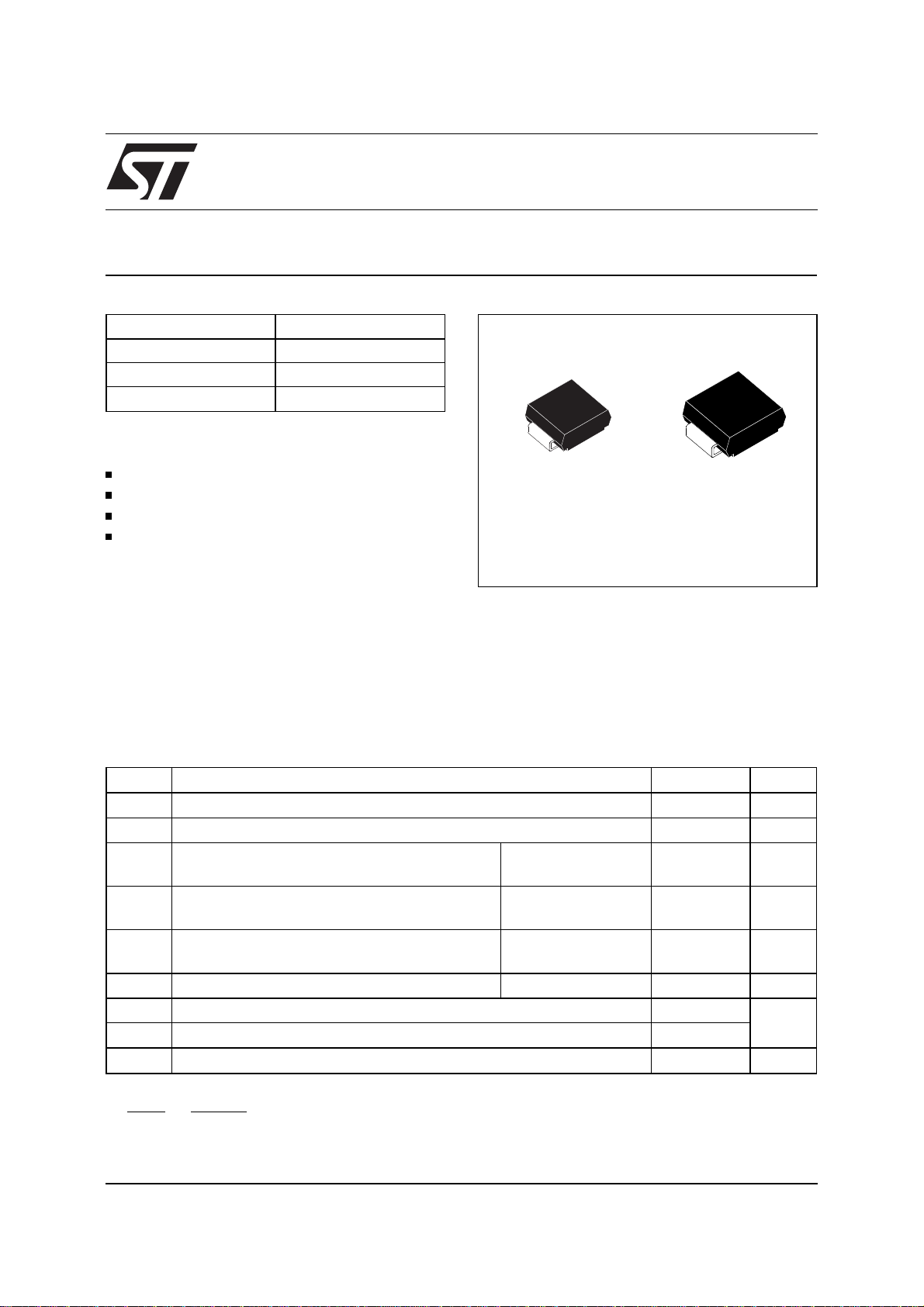

STPS160A/U
®
July 1999 - Ed: 5A
POWER SCHOTTKY RECTIFIER
I
F(AV)
1 A
V
RRM
60 V
Tj (max) 150°C
V
F
(max) 0.57 V
MAIN PRODUCT CHARACTERISTICS
VERY SMALL CONDUCTION LOSSES
NEGLIGIBLE SWITCHING LOSSES
LOW FORWARD VOLTAGE DROP
SURFACE MOUNTED DEVICE
FEATURES AND BENEFITS
Single chip Schottky rectifier suited for Switched
Mode Power Supplies and high frequency DC to
DC converters.
Packaged in SMA or SMB, this device is intended
for surface mounting and used in low voltage, high
frequency inverters, free wheeling and polarity pro-
tection applications.
DESCRIPTION
SMB
(JEDEC DO-214AA)
STPS160U
Symbol Parameter Value Unit
V
RRM
Repetitive peak reverse voltage 60 V
I
F(RMS)
RMS forward current 10 A
I
F(AV)
Average forward current T
Lead
= 130°C
δ
= 0.5
1A
I
FSM
Surge non repetitive forward current tp = 10 ms
Sinusoidal
75 A
I
RRM
Repetitive peak reverse current tp = 2
µ
s square
F = 1kHz
1A
I
RSM
Non repetitive peak reverse current tp = 100
µ
s square 1 A
T
stg
Storage temperature range - 65 to + 150
°
C
Tj Maximum junction temperature * 150
dV/dt Critical rate of rise of reverse voltage 10000 V/
µ
s
ABSOLUTE RATINGS (limiting values)
SMA
(JEDEC DO-214AC)
STPS160A
* :
dPtot
dTj
<
1
Rth
(
j
−
a
)
thermal runaway condition for a diode on its own heatsink
1/6
