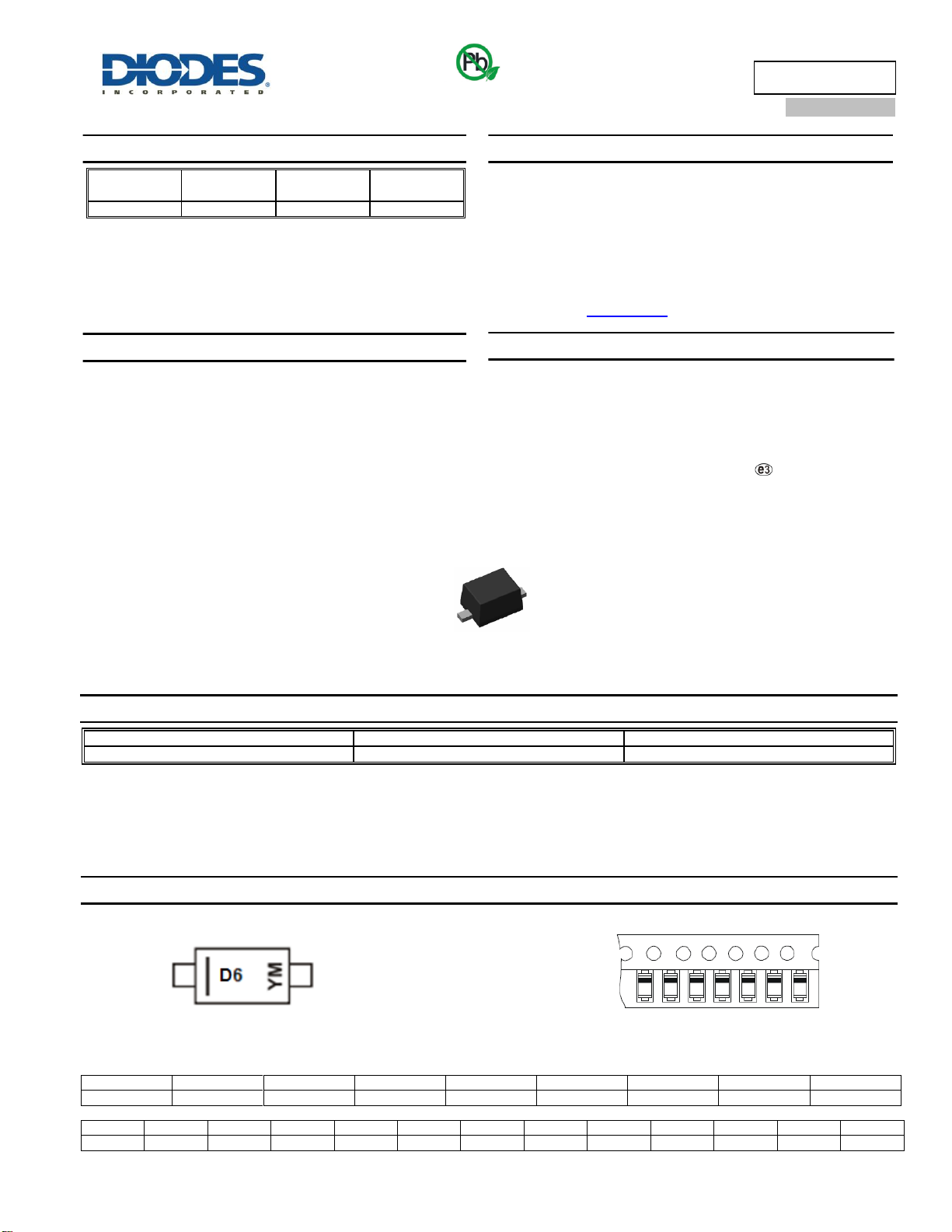

SDM160S1F
Document number: DS38450 Rev. 5 - 2
1 of 5
www.diodes.com
August 2016
© Diodes Incorporated
SDM160S1F
1A SCHOTTKY
Product Summary
V
RRM
(V)
I
O
(A)
V
F
Max (V)
@ +25°C
I
R
Max (mA)
@ +25°C
60
1
0.53
0.06
Description and Applications
The SDM160S1F is a single rectifier packaged in SOD123F.
Offering low V
F
, low power loss and high efficiency, this device is
ideal for use in general rectification applications as a:
Boost Diode
Blocking Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Interlocking Clip Design for High Surge Current Capacity
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (SDM160S1FQ)
Mechanical Data
Case: SOD123F
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.015 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
SDM160S1F-7
SOD123F
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Bar Denotes Cathode Pin
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
2020
Code
A
B
C
D
E
F
G
H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
SOD123F
D6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex.: D = 2016)
M = Month (ex.: 9 = September)
Bar Denotes Cathode Pin
Green
Cathode Pin
