Microstructure Pressure Sensors
Precision Compensated
0 in H
2O to 4 in H2O and 0 in H2O to 10 in H2O
SCXL Serie
s
Sensing and Control
FEATURES
• Very Low Pressure
Resolution
• Precision Temperature
Compensation
• Small Size
• Low Noise
• Calibrated Zero & Span
• High Impedance for Low
Power Applications
TYPICAL APPLICATIONS
• Air Flow
• Respirators
• HVAC
• Medical Equipment
• Computer Peripherals
• Pneumatic Controls
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.

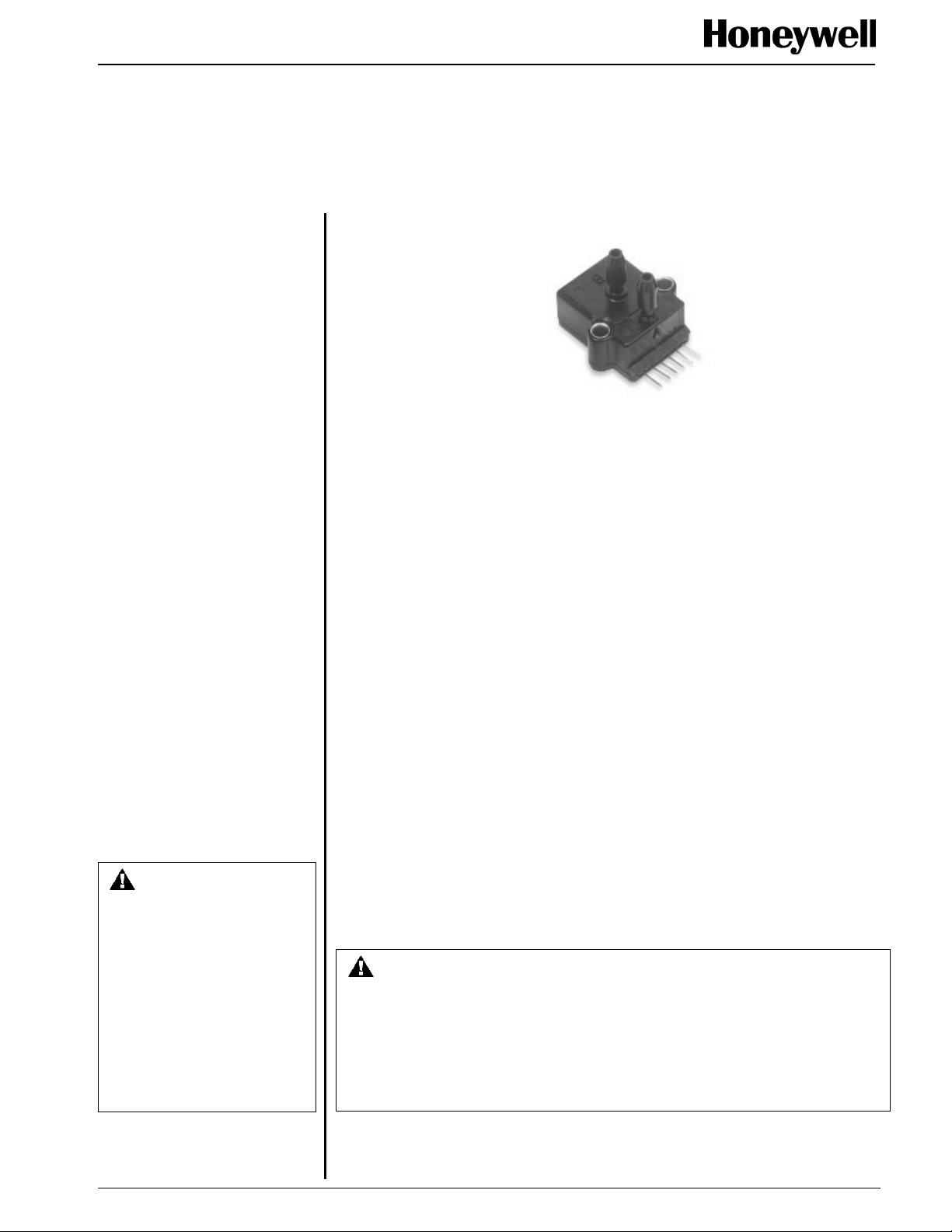

The SCXL series sensors provide a very cost-effective solution for pressure
applications that require high accuracy over very low operating pressure
ranges. These internally calibrated and temperature compensated sensors
were specifically designed to provide an accurate and stable output over a
0 °C to 50 °C [32 °F to 122 °F] temperature range. This series is intended for
use with non-corrosive, non-ionic working fluids such as air, dry gases and
the like.
The output of the bridge is ratiometric to the supply voltage. Operation from
any dc supply voltage up to 18 Vdc [Model SCXL004DN] or 20 Vdc
[SCXL010DN] is acceptable.
Contact your local honeywell representative or go to Honeywell’s website at
www.honeywell.com/sensing for additional details.
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet is for reference only. Do
not use this document as a product installation guide.
• Complete installation, operation, and maintenance information is provided
in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
