SBR is registered trademarks of Diodes Incorporated.

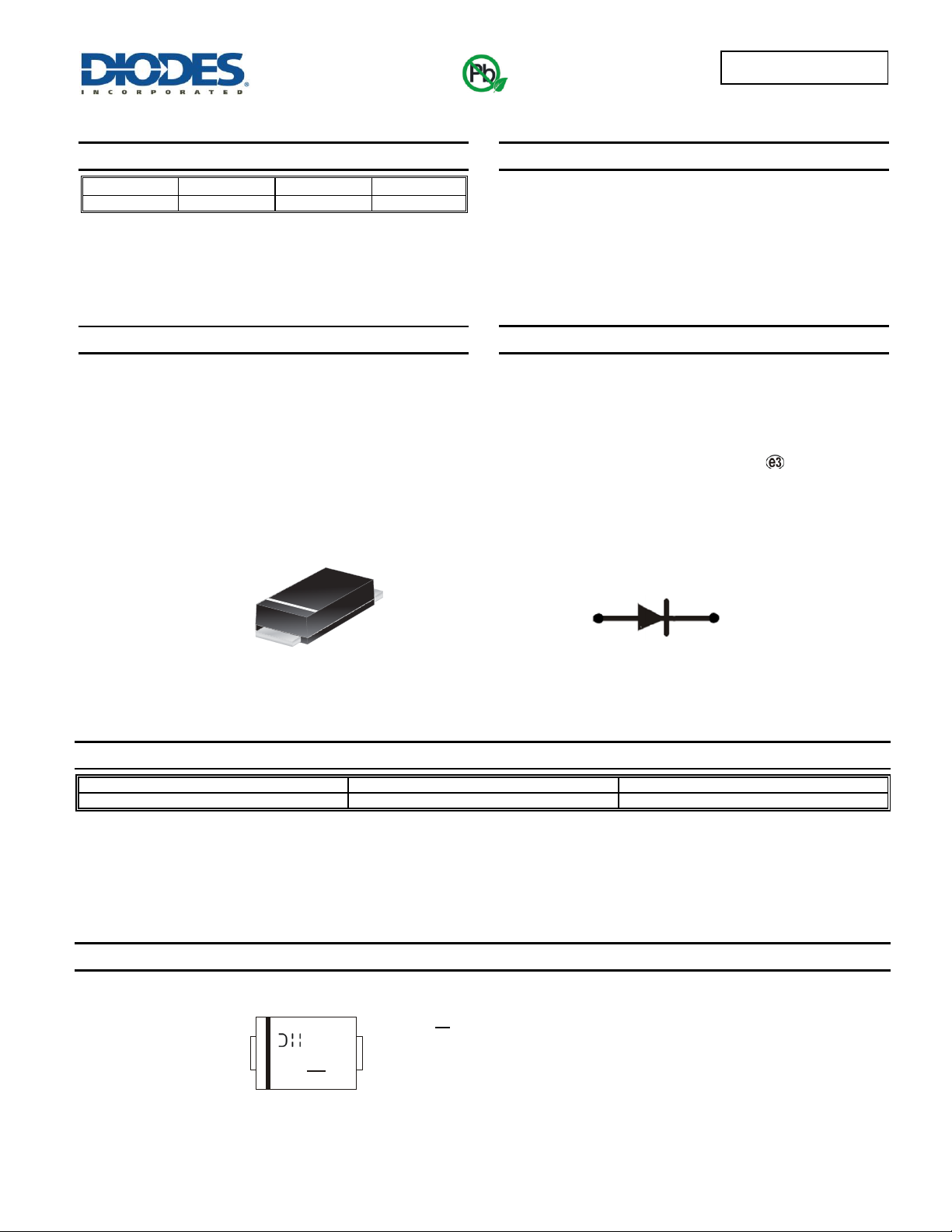

SBRT5A50SAF
Document number: DS36544 Rev. 7 - 2
1 of 4
www.diodes.com
July 2015
© Diodes Incorporated
SBRT5A50SAF
NEW PROD UCT ADVA N C ED I N F ORM ATI O N
ADVA N C E INF O RMA TION
ADVA N C E INF O RMA TION
5A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary (@T
A
= +25°C)
V
RRM
(V)
I
O
(A)
V
F
MAX (V)
I
R MAX
(µA)
50
5
0.53
150
Description and Applications
The SBRT5A50SAF is a 5A 50V single rectifier packaged in the low
profile SMAF package. Providing low VF and excellent high-
temperature stability, this device is ideal for use in general
rectification applications such as:
Boost Diodes
Blocking Diodes
Recirculating Diodes
Features and Benefits
Reduced ultra-low forward voltage drop (V
F
); Better efficiency
and cooler operation
Reduced high-temperature reverse leakage; Increased reliability
against thermal runaway failure in high-temperature operation
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SMAF
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.036 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
SBRT5A50SAF-13
SMAF
10,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Green
TX5 = Product Type Marking Code
YWW = Date Code Marking
Y = Last Digit of Year (ex: 4 for 2014)
WW = Week Code 01 to 53
AB = Foundry and Assembly Code
SMAF
YWW
TX5
AB
Device Symbol
SMAF
