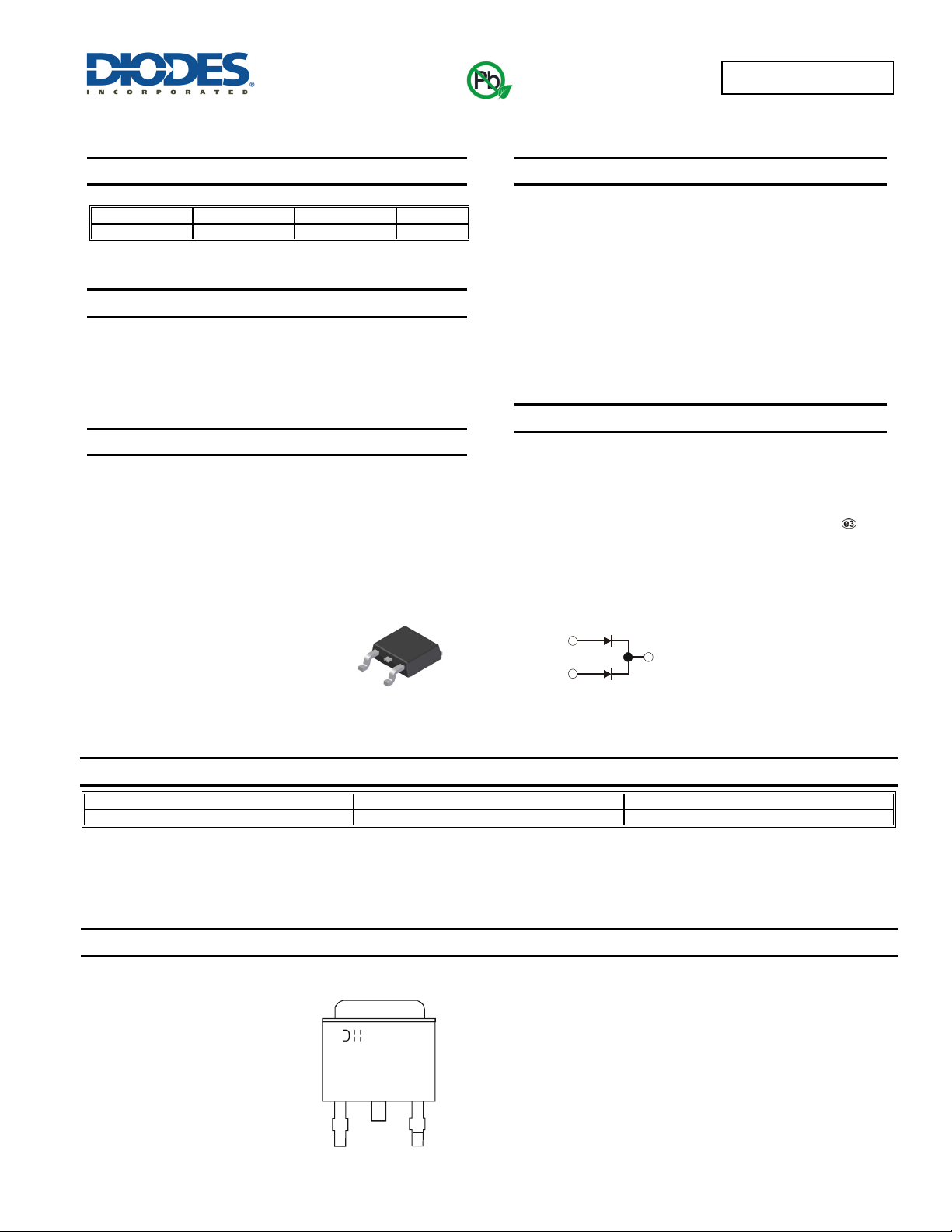

SBR6100CTLQ
Document number: DS36091 Rev. 1 – 2
1 of 6
www.diodes.com
October 2012
© Diodes Incorporated
SBR6100CTLQ
6A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V) I
O
(A) V
F
max
(V) I
R max
(μA)
100 6 0.74 0.1
Description
The SBR6100CTLQ is dual center tap rectifier in TO-252 (DPAK)
package. Offering excellent high temperature stability and superior
avalanche capability, this device is specifically intended for use in
automotive applications.
Applications
• DC – DC Converters
• DC/AC Inverters
• AC/DC Power Supplies
Features
• Low forward voltage drop (V
F
); better efficiency and cooler
operation.
• Reduced high temperature reverse leakage; Increased
reliability against thermal runaway failure in high temperature
operation
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• 150ºC Operating Junction Temperature
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: TO252 (DPAK)
• Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
• Polarity: See Below
• Weight: 0.33 grams (approximate)
Ordering Information (Note 4)
Part Number Case Packaging
SBR6100CTLQ-13 TO252 2500/Tape & Reel, 13-inch
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Top View
Package Pin-Out Configuration
2
1
3
Green
6100CT = Product Type Marking Code
A
B = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
Y
YWW AB
6100CT
SBR
TO252
