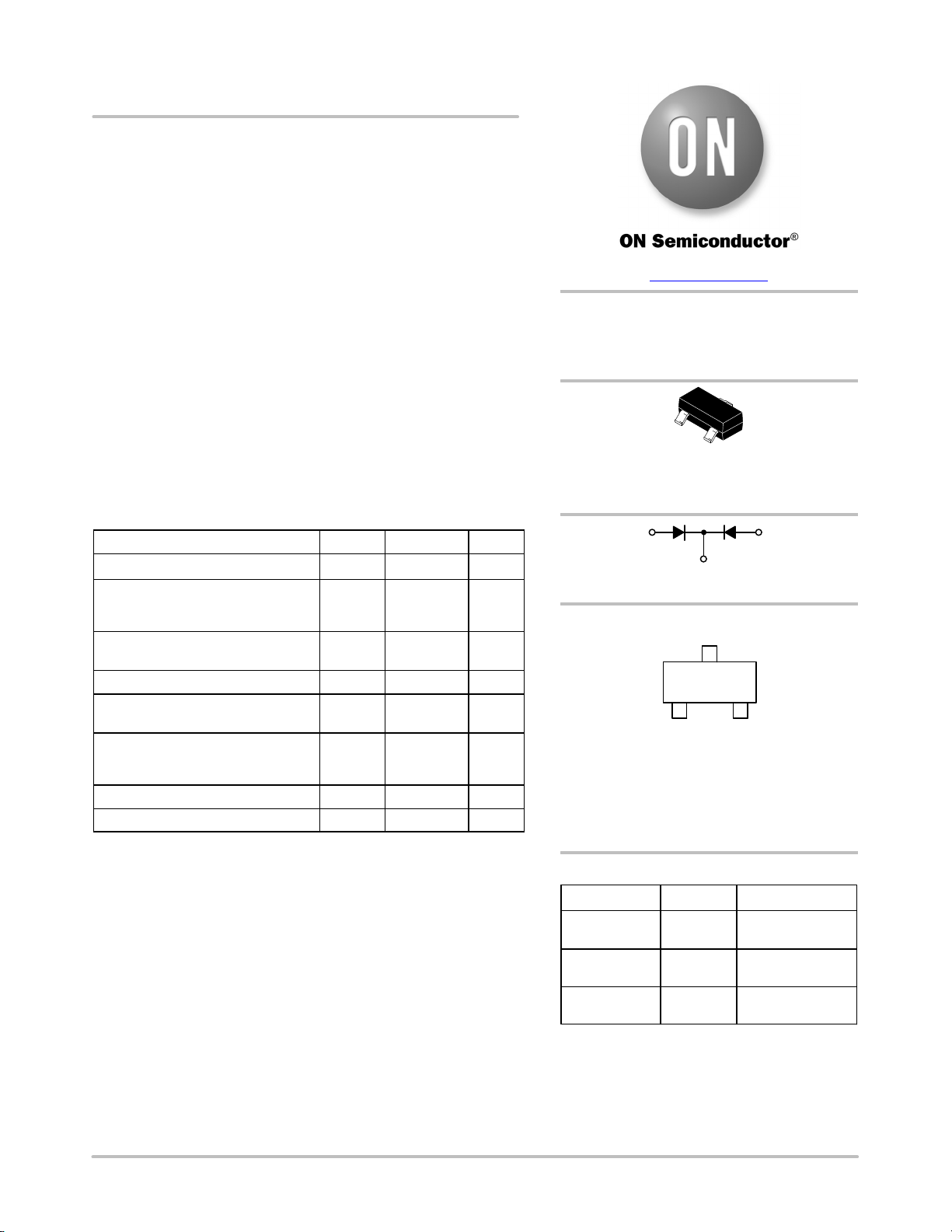

Publication Order Number:
BAT54CLT1/D
© Semiconductor Components Industries, LLC, 2003
October, 2016 − Rev. 10
1
BAT54CL
Dual Common Cathode
Schottky Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand−held and portable applications where
space is limited.
Features
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 V (Typ) @ I
F
= 10 mAdc
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS (T
J
= 125°C unless otherwise noted)
Rating
Symbol Value Unit
Reverse Voltage V
R
30 V
Forward Power Dissipation
@ T
A
= 25°C
Derate above 25°C
P
F
225
1.8
mW
mW/°C
Thermal Resistance (Note 1)
Junction-to-Ambient (Note 2)
R
q
JA
508
311
°C/W
Forward Current (DC) I
F
200 Max mA
Non−Repetitive Peak Forward Current
t
p
< 10 msec
I
FSM
600
mA
Repetitive Peak Forward Current
Pulse Wave = 1 sec,
Duty Cycle = 66%
I
FRM
300
mA
Junction Temperature T
J
−55 to +125 °C
Storage Temperature Range T
stg
−55 to +150 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR−4 @ Minimum Pad.
2. FR−4 @ 1.0 x 1.0 inch Pad.
30 VOLT
DUAL COMMON CATHODE
SCHOTTKY BARRIER DIODES
3
CATHODE
1
ANODE
2
ANODE
MARKING DIAGRAM
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
s
Brochure, BRD8011/D.
SOT−23
CASE 318
STYLE 9
5C = Device Code
M = Date Code
G = Pb−Free Package
1
5C MG
G
*Date Code orientation and/or position may
vary depending upon manufacturing location.
Device Package Shipping
†
ORDERING INFORMATION
BAT54CLT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
BAT54CLT3G SOT−23
(Pb−Free)
10,000 /
Tape & Reel
SBAT54CLT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
1
2
3
(Note: Microdot may be in either location)
www.onsemi.com
