DMT6004SCT
Document number: DS38565 Rev. 1 - 2
1 of 6
www.diodes.com
April 2016
© Diodes Incorporated
DMT6004SCT
YYWW
T6004S
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
max
I
D
T
C
= +25°C
(Note 9)
60V
3.65mΩ @ V
GS
= 10V
100A
Description and Applications
This new generation MOSFET features low on-resistance and fast
switching, making it ideal for high-efficiency power management
applications.
Engine Management Systems
Body Control Electronics
DC-DC Converters
Features
100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
Low Input Capacitance
Low Input/Output Leakage
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO220-3
Case Material: Molded Plastic, ―Green‖ Molding Compound. UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram Below
Weight: 1.85 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMT6004SCT
TO220-3
50 pieces/tube
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
= Manufacturer’s Marking
T6004S = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Last Two Digits of Year (ex: 15 = 2015)
WW or WW = Week Code (01 to 53)

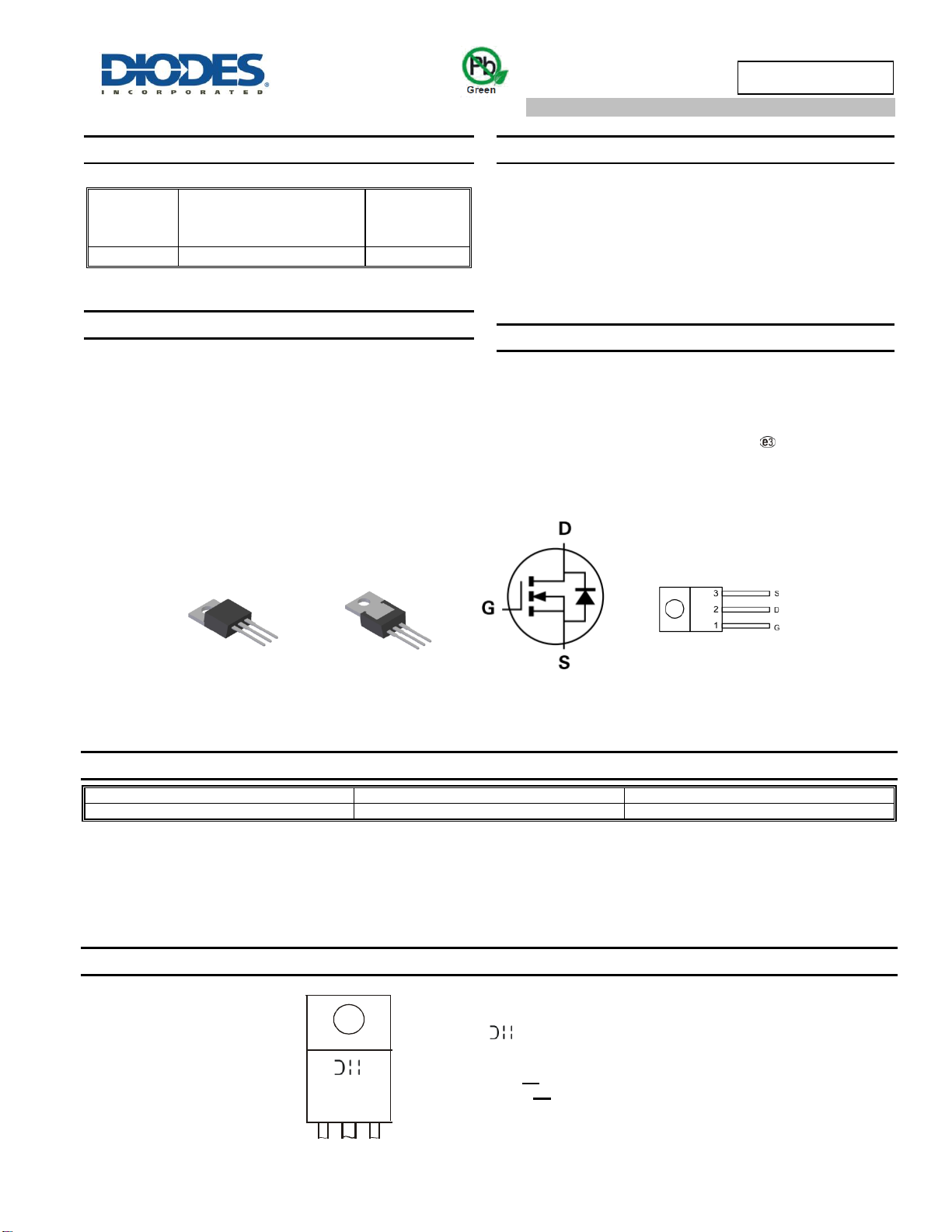

Equivalent Circuit
Top View
Pin Out Configuration
Top View
Bottom View
TO220-3
