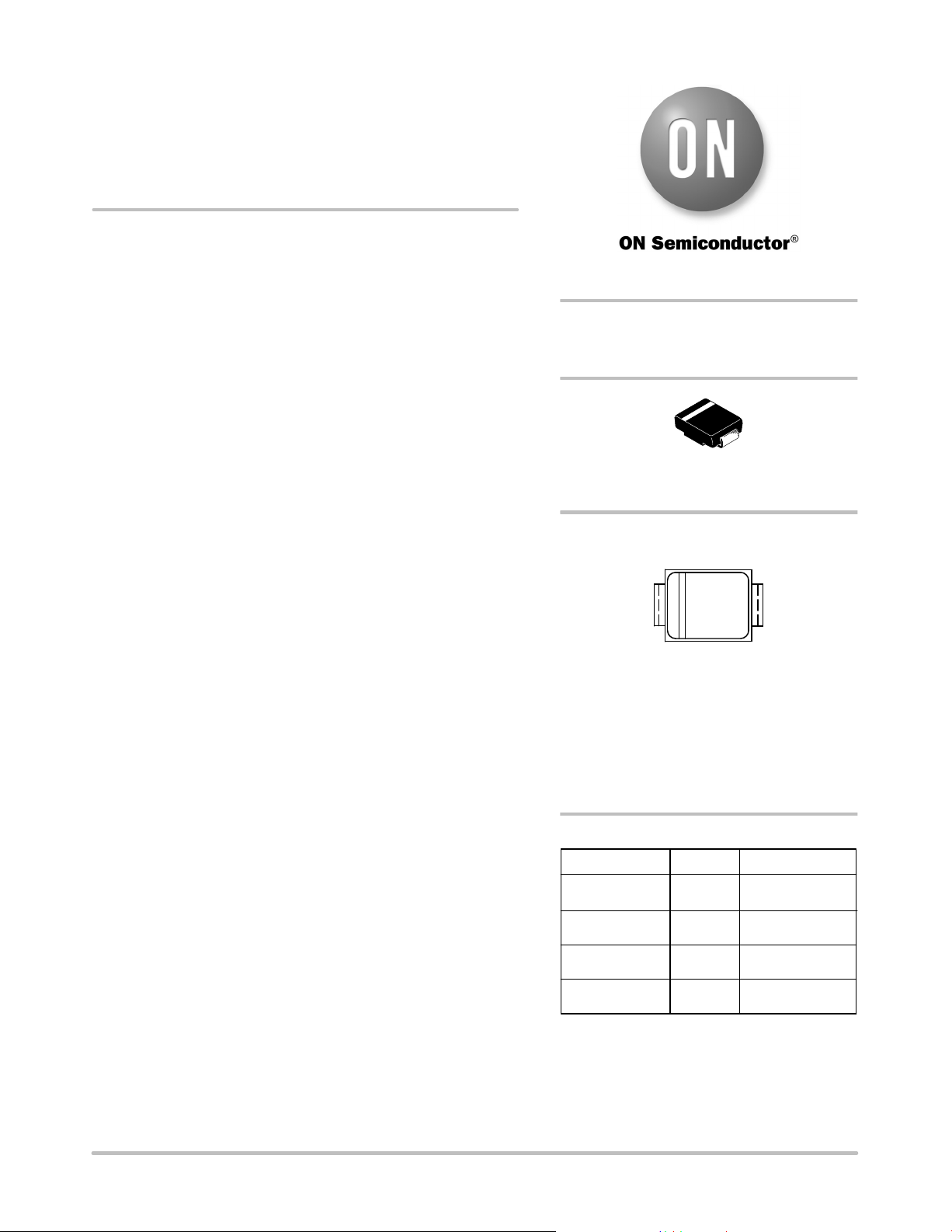

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 2
1 Publication Order Number:
MURS205T3/D
MURS205T3G,
SURS8205T3G,
MURS210T3G,
SURS8210T3G
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop (0.74 V Max @ 2.0 A, T
J
= 150C)
AEC−Q101 Qualified and PPAP Capable
SURS8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
These are Pb−Free Packages*
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 95 mg (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Polarity: Polarity Band Indicates Cathode Lead
ESD Ratings:
Machine Model = C (> 400 V)
Human Body Model = 3A (> 4 kV)
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Device Package Shipping
†
ORDERING INFORMATION
ULTRAFAST RECTIFIERS
2 AMPERES, 50−100 VOLTS
SMB
CASE 403A
A = Assembly Location
Y = Year
WW = Work Week
U2x = Device Code
x= A for MURS205T3G
= B for MURS210T3G
G =Pb−Free Package
AYWW
U2x G
G
MURS210T3G SMB
(Pb−Free)
2,500 Tape & Reel
MURS205T3G SMB
(Pb−Free)
2,500 Tape & Reel
(Note: Microdot may be in either location)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
http://onsemi.com
MARKING DIAGRAM
SURS8205T3G SMB
(Pb−Free)
2,500 Tape & Reel
SURS8210T3G SMB
(Pb−Free)
2,500 Tape & Reel
