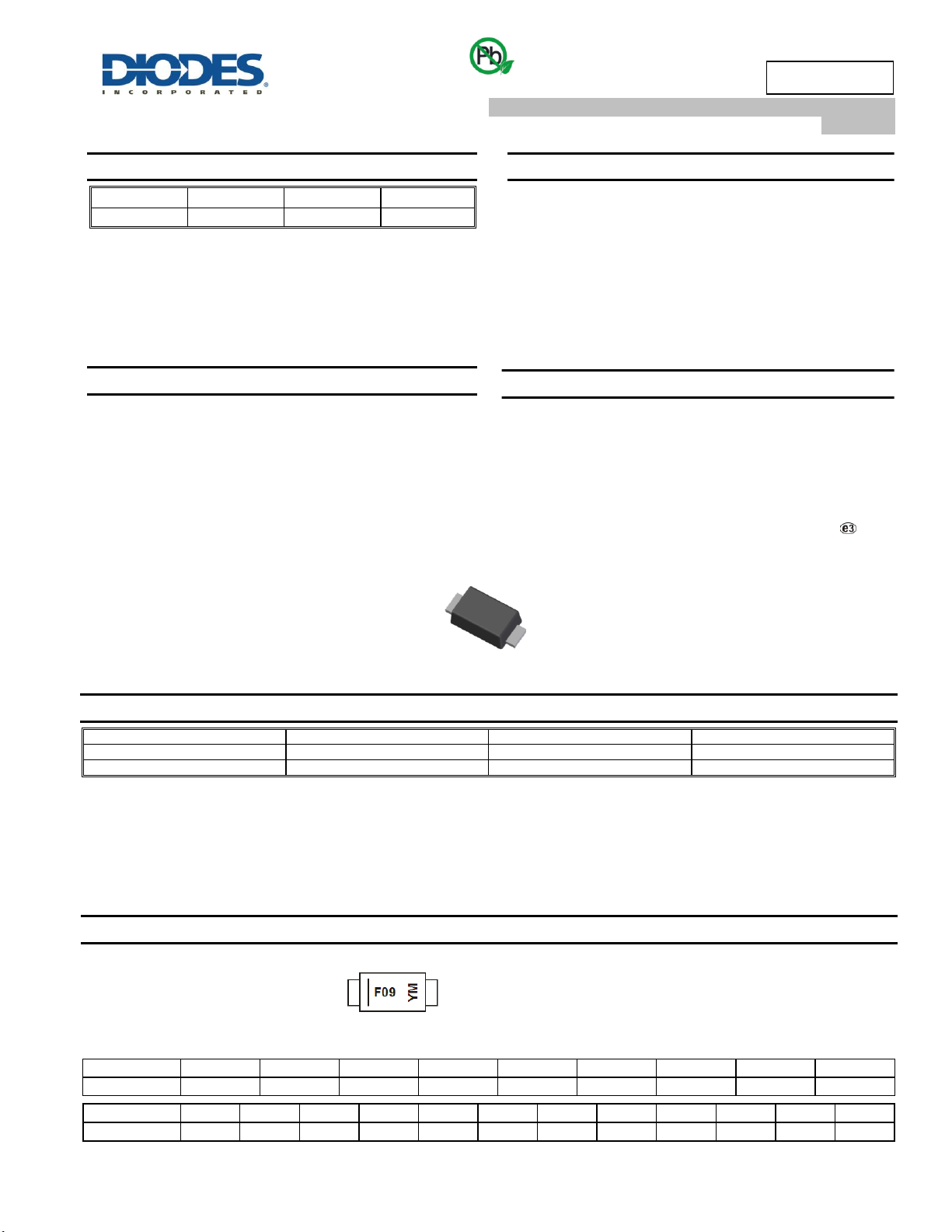

POWERDI is a registered trademark of Diodes Incorporated.
DFLS1100
Document number: DS30497 Rev. 13 - 2
1 of 6
www.diodes.com
December 2015
© Diodes Incorporated
DFLS1100
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
POWERDI
Product Summary
V
RRM
(V)
I
O
(A)
V
F
max (V)
I
R max
(µA)
100
1
0.77
0.35
Description and Applications
This Schottky Barrier Rectifier is designed to meet the stringent
requirements of Automotive Applications. It is ideally suited for use
as:
Polarity Protection Diode
Re-circulating Diode
Switching Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Lead Free Finish, RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: POWERDI
®
123
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (Approximate)
Ordering Information (Note 5)
Part Number
Compliance
Case
Packaging
DFLS1100-7
Commercial
POWERDI
®
123
3000/Tape & Reel
DFLS1100Q-7
Automotive
POWERDI
®
123
3000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
2020
2021
Code
A
B
C
D
E
F
G
H
I
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
F09 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
Green
