PI6C49X0204C Rev C 5/4/2016
PI6C49X0204C

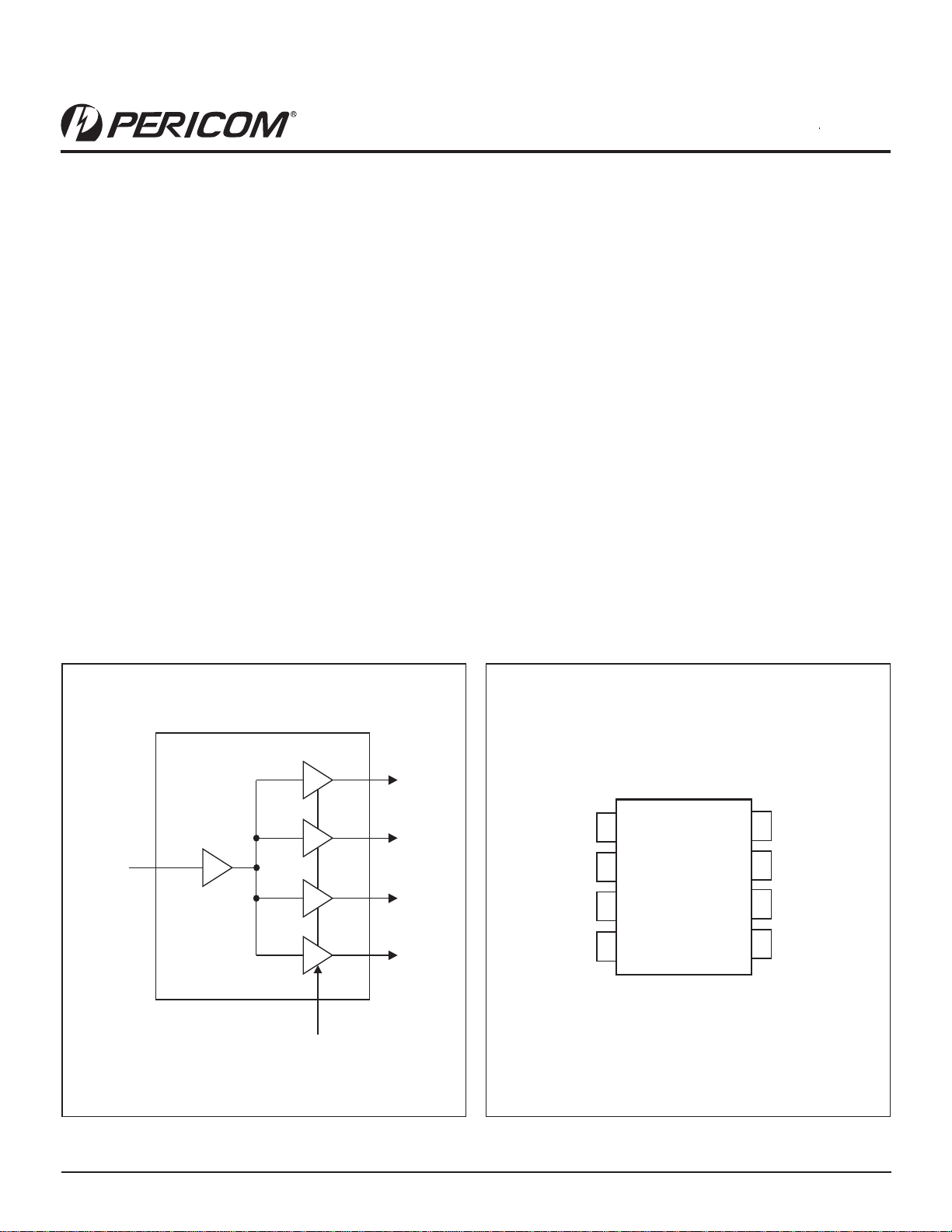

Block Diagram
Description
The PI6C49X0204C is a low skew, single input to four output,
clock buffer. Perfect for fanning out multiple clock outputs.
Low Skew 1 TO 4 Clock Buffer
Features
Low skew outputs (250 ps)
Packaged in 8-pin SOIC
Low power CMOS technology
Operating Voltages of 1.5 V to 3.3 V
Output Enable pin tri-states outputs
3.6 V tolerant input clock
Industrial temperature ranges
Q0
Output Enable
CLK
Q1
Q2
Q3
Pin Assignment
1
5
6
7
8
4
3
2
V
DD
GND
Q3
CLK
OE
Q2
Q1
Q4
16-0098
