© Semiconductor Components Industries, LLC, 2011
October, 2017 − Rev. 4
1 Publication Order Number:
NUP45V6P5/D

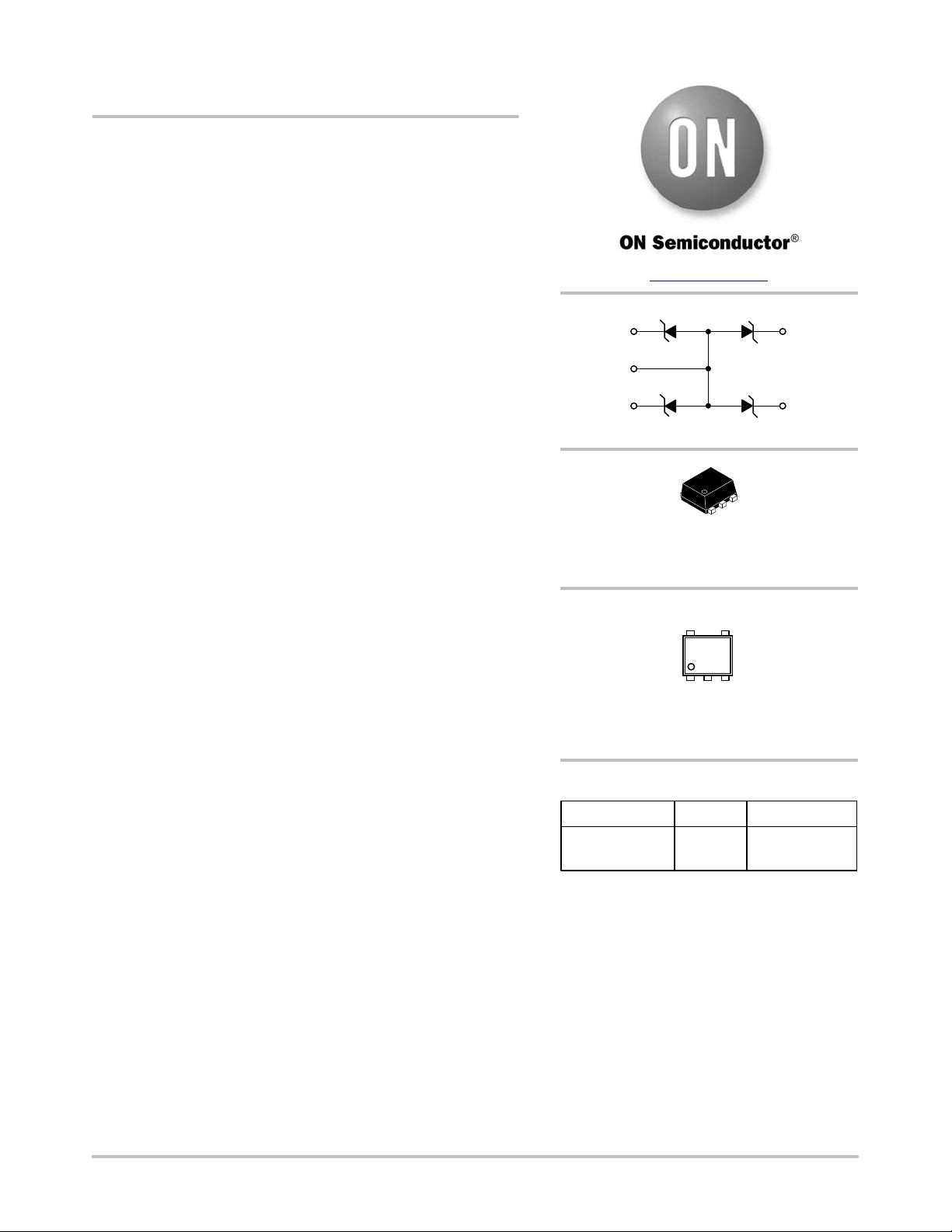

NUP45V6P5
ESD Protection Diode Array,
Quad, Low Capacitance
This integrated surge protection is designed for applications
requiring transient overvoltage protection. It is intended to be used in
sensitive equipment such as wireless headsets, PDAs, digital cameras,
computers, printers, communication systems, and other applications.
The integrated design provides very effective and reliable protection
for four separate lines using only one package. This device is ideal for
situations where board space is at a premium.
Features
• ESD Protection: IEC61000−4−2: Level 4
• Four Separate Unidirectional Configurations for Protection
• Low Leakage Current < 1 mA @ 3 V
• Small SOT−953 SMT Package
• Low Capacitance
• These are Pb−Free Devices
Benefits
• Provides Protection for ESD Industry Standards: IEC 61000, HBM
• Protects Four Lines Against Transient Voltage Conditions
• Minimize Power Consumption of the System
• Minimize PCB Board Space
Typical Applications
• Cellular and Portable Electronics
• Serial and Parallel Ports
• Microprocessor Based Equipment
• Notebooks, Desktops, Servers
SOT−953
CASE 526AE
5
4
1
2
3
MARKING DIAGRAM
www.onsemi.com
Device Package Shipping
†
ORDERING INFORMATION
NUP45V6P5T5G SOT−953
(Pb−Free)
8000 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
5 = Specific Device Code
M = Date & Assembly Code
5 M
1
