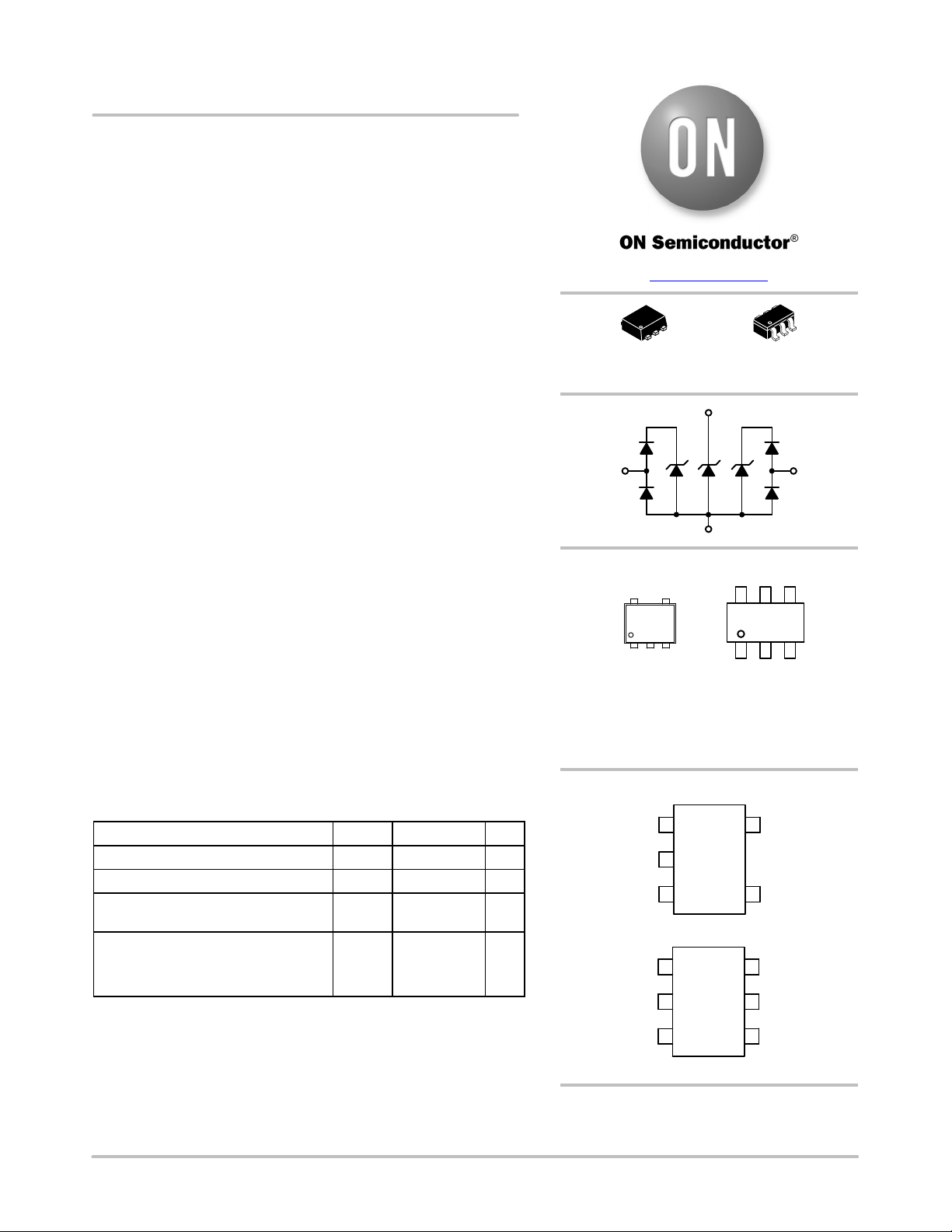

NUP2114 Series, SNUP2114
ESD Protection Diode
Low Capacitance ESD Protection for
High Speed Data
The NUP2114 surge protection is designed to protect high speed
data lines from ESD. Ultra−low capacitance and high level of ESD
protection makes this device well suited for use in USB 2.0
applications.
Features
• Low Capacitance 0.8 pF
• Low Clamping Voltage
• Stand Off Voltage: 5 V
• Low Leakage
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model
and Class C (Exceeding 400 V) per Machine Model
• Protection for the Following IEC Standards:
IEC 61000−4−2 Level 4 ESD Protection
• UL Flammability Rating of 94 V−0
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applications
• High Speed Communication Line Protection
• USB 2.0 High Speed Data Line and Power Line Protection
• Monitors and Flat Panel Displays
• MP3
• Gigabit Ethernet
• Notebook Computers
• Digital Video Interface (DVI) and HDMI
MAXIMUM RATINGS (T
J
= 25°C unless otherwise noted)
Rating
Symbol Value Unit
Operating Junction Temperature Range T
J
−40 to +125 °C
Storage Temperature Range T
stg
−55 to +150 °C
Lead Solder Temperature −
Maximum (10 Seconds)
T
L
260 °C
Human Body Model (HBM)
Machine Model (MM)
IEC 61000−4−2 Contact
IEC61000−4−2 Air
ESD 16000
400
13000
15000
V
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
See Application Note AND8308/D for further description of
survivability specs.
MARKING DIAGRAMS
SOT−553
CASE 463B
www.onsemi.com
P2, P2M = Specific Device Code
M = Date Code
G = Pb−Free Package
P2MG
G
1
PIN CONNECTIONS
15
2
34
V
P
V
N
NC
I/O
I/O
V
P
I/O
I/O
V
N
(Note: Microdot may be in either location)
16
25
34
I/O
V
N
NC
I/O
V
P
NC
TSOP−6
CASE 318G
P2M MG
G
1
SOT−553
TSOP−6
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
SOT−553 TSOP−6
