Publication Order Number:
NL17SV32XV5T2/D
© Semiconductor Components Industries, LLC, 2014
May, 2014 − Rev. 5
1

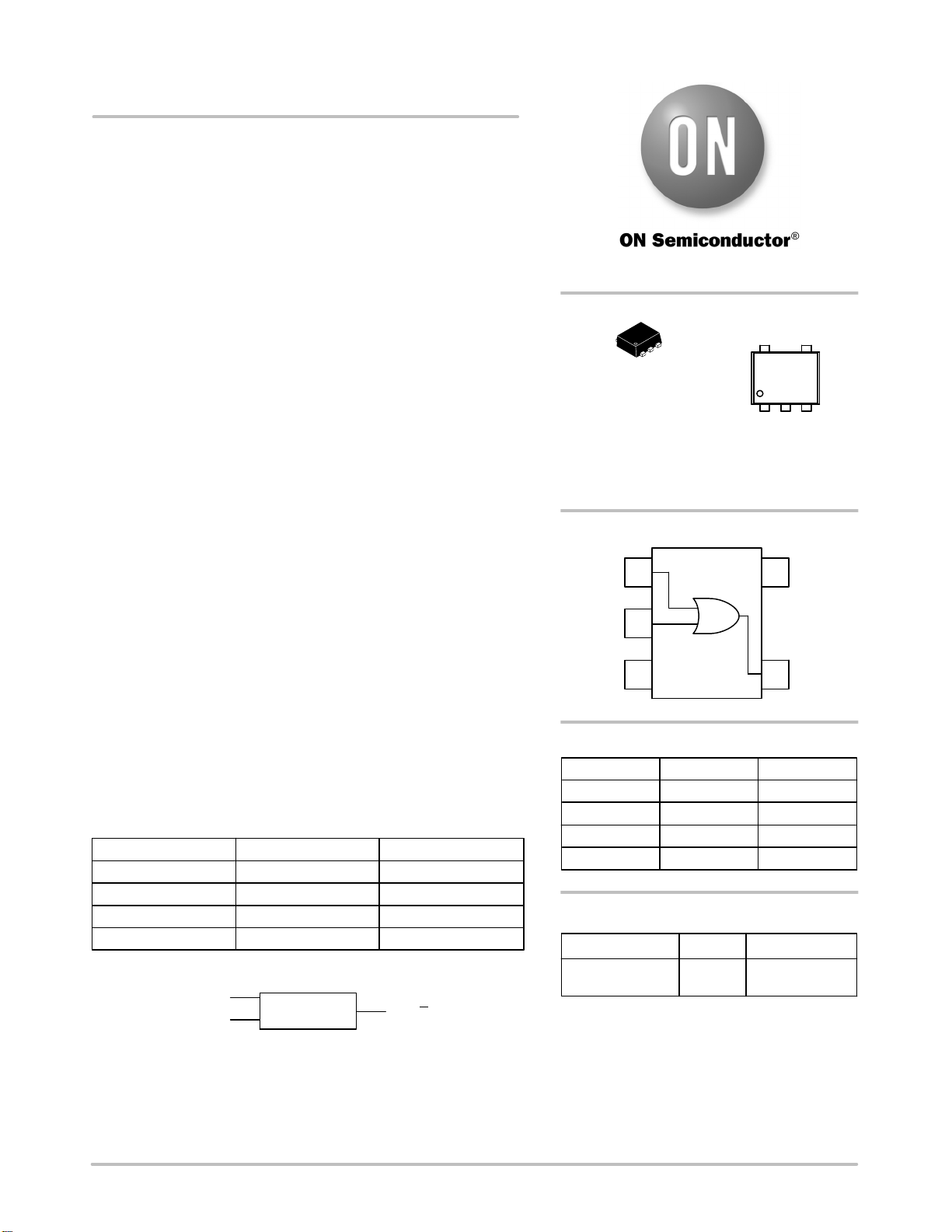

NL17SV32
Single 2-Input OR Gate
The NL17SV32 is an ultra−high performance 2 input OR gate
manufactured in 0.35 mm technology with excellent performance
down to 0.9 V. This device is ideal for extremely high−speed and
high−drive applications. Additionally, limitations of board space are
no longer a constraint. The very small SOT−553 makes this device fit
most tight designs and spaces.
Features
• Extremely High Speed: t
PD
= 1.0 ns (Typ) at V
CC
= 3.3 V
• Designed for 0.9 to 3.3 V Operation
• Overvoltage Tolerance (OVT)* Input Pins Permit Logic Translation
• Balanced ±24 mA Output Drive @ 3.3 V
• Near Zero Static Supply Current
• Ultra−Tiny SOT−553 5 Pin Package Only 1.6 x 1.6 x 0.6 mm
• These Devices are Pb−Free and are RoHS Compliant
Typical Applications
• Cellular
• Digital Camera
• PDA
• Digital Video
Important Information
• High ESD Ratings for Handling:
Human Body Model: 2000 V
Machine Model: 200 V
• Latchup Max Rating: 500 mA
Industry Standard
• Compatible with Fairchild’s NC7SV32 and TI’s SN74AUC1G32
L
L
H
H
FUNCTION TABLE
Input A Input B
L
H
H
H
Output Y
L
H
L
H
IN A
OUT Y
Figure 1. Logic Symbol
w1
IN B
*Overvoltage Tolerance (OVT) enables input pins to function outside (higher) of
their operating voltages, with no damage to the devices or to signal integrity.
PIN ASSIGNMENT
1
2
3 GND
Input
Input
4
5V
CC
Output
V
CC
A
B
Y
GND
1
2
3
4
5
−
A
B
−
Y
PIN DIAGRAM
Device Package Shipping†
ORDERING INFORMATION
http://onsemi.com
NL17SV32XV5T2G SOT−553
(Pb−Free)
4000 Tape & Ree
l
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
s
Brochure, BRD8011/D.
SOT−553
CASE 463B
1
5
MARKING
DIAGRAM
UM = Specific Device Code
M = Date Code
G = Pb−Free Package
UM M G
G
(Note: Microdot may be in either location)
