© Semiconductor Components Industries, LLC, 2009
July, 2009 − Rev. 14
1 Publication Order Number:
NCP585/D
NCP585
Tri-Mode 300 mA CMOS
LDO Regulator with Enable
The NCP585 series of low dropout regulators are designed for
portable battery powered applications which require precise output
voltage accuracy, low quiescent current, and high ripple rejection.
These devices feature an enable function which lowers current
consumption significantly and are offered in the SOT23−5 and the
HSON−6 packages, in fixed output voltages between 0.8 V and 3.3 V.
This series of devices have three modes. Chip Enable (CE mode),
Fast Transient Mode (FT mode), and Low Power Mode (LP mode).
Both the FT and LP mode are utilized via the ECO pin.
Features
• Tri−mode Operation
• Low Dropout Voltage:
Typ 550 mV at 300 mA, Output Voltage = 0.9 V
Typ 480 mV at 300 mA, Output Voltage = 1.0 V
Typ 310 mV at 300 mA, Output Voltage = 1.5 V
• Excellent Line Regulation of 0.01%/V (0.05%/V LP Mode)
• Excellent Load Regulation of 15 mV (40 mV FT Mode)
• High Output Voltage Accuracy of "2% ("3% LP mode)
• Ultra−Low Iq Current of:
3.5 mA (LP mode, Output Voltage < 1.6 V)
80 mA (FT mode, Output Voltage < 1.8 V)
60 mA (FT mode, Output Voltage = 1.8 V)
• Very Low Shutdown Current of 0.1 mA
• Excellent Power Supply Rejection Ratio of 70 dB at f = 1.0 kHz
• Low Temperature Drift Coefficient on the Output Voltage of
"100 ppm/°C
• Fold Back Protection Circuit
• Input Voltage up to 6.5 V
• These are Pb−Free Devices
Typical Applications
• Portable Equipment
• Hand−Held Instrumentation
• Camcorders and Cameras

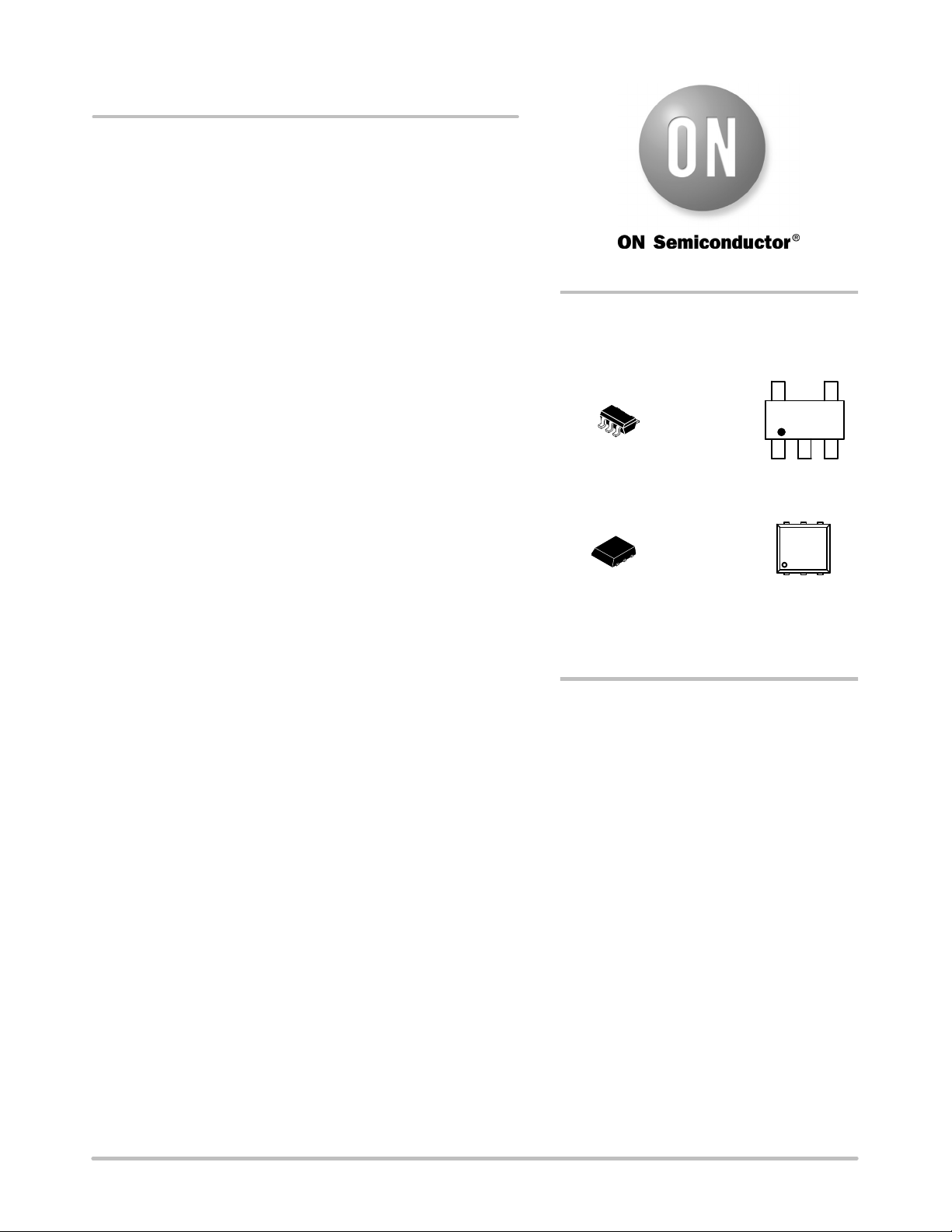

SOT23−5
SN SUFFIX
CASE 1212
http://onsemi.com
MARKING
DIAGRAMS
See detailed ordering and shipping information in the package
dimensions section on page 11 of this data sheet.
ORDERING INFORMATION
1
5
1
6
HSON−6
SAN SUFFIX
CASE 506AE
1
6
XXX
XTT
1
5
XXXTT
XXX = Specific Device Code
TT = Traceability Information
*Additional voltage options may be available between
0.8 V and 3.3 V in 100 mV steps.
