© Semiconductor Components Industries, LLC, 2016
June, 2016 − Rev. 10
1 Publication Order Number:
NCP103/D
NCP103
150 mA CMOS Low Dropout
Regulator
The NCP103 is 150 mA LDO that provides the engineer with a very
stable, accurate voltage with low noise suitable for space constrained,
noise sensitive applications. In order to optimize performance for
battery operated portable applications, the NCP103 employs the
dynamic quiescent current adjustment for very low I
Q
consumption at
no−load.
Features
• Operating Input Voltage Range: 1.7 V to 5.5 V
• Available in Fixed Voltage Options: 0.9 V to 3.5 V
Contact Factory for Other Voltage Options
• Very Low Quiescent Current of Typ. 50 mA
• Standby Current Consumption: Typ. 0.1 mA
• Low Dropout: 75 mV Typical at 150 mA
• ±1% Accuracy at Room Temperature
• High Power Supply Ripple Rejection: 75 dB at 1 kHz
• Thermal Shutdown and Current Limit Protections
• Stable with a 1 mF Ceramic Output Capacitor
• Available in uDFN 1.0 x 1.0 mm Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applicaitons
• PDAs, Mobile phones, GPS, Smartphones
• Wireless Handsets, Wireless LAN, Bluetooth
®
, Zigbee
®
• Portable Medical Equipment
• Other Battery Powered Applications

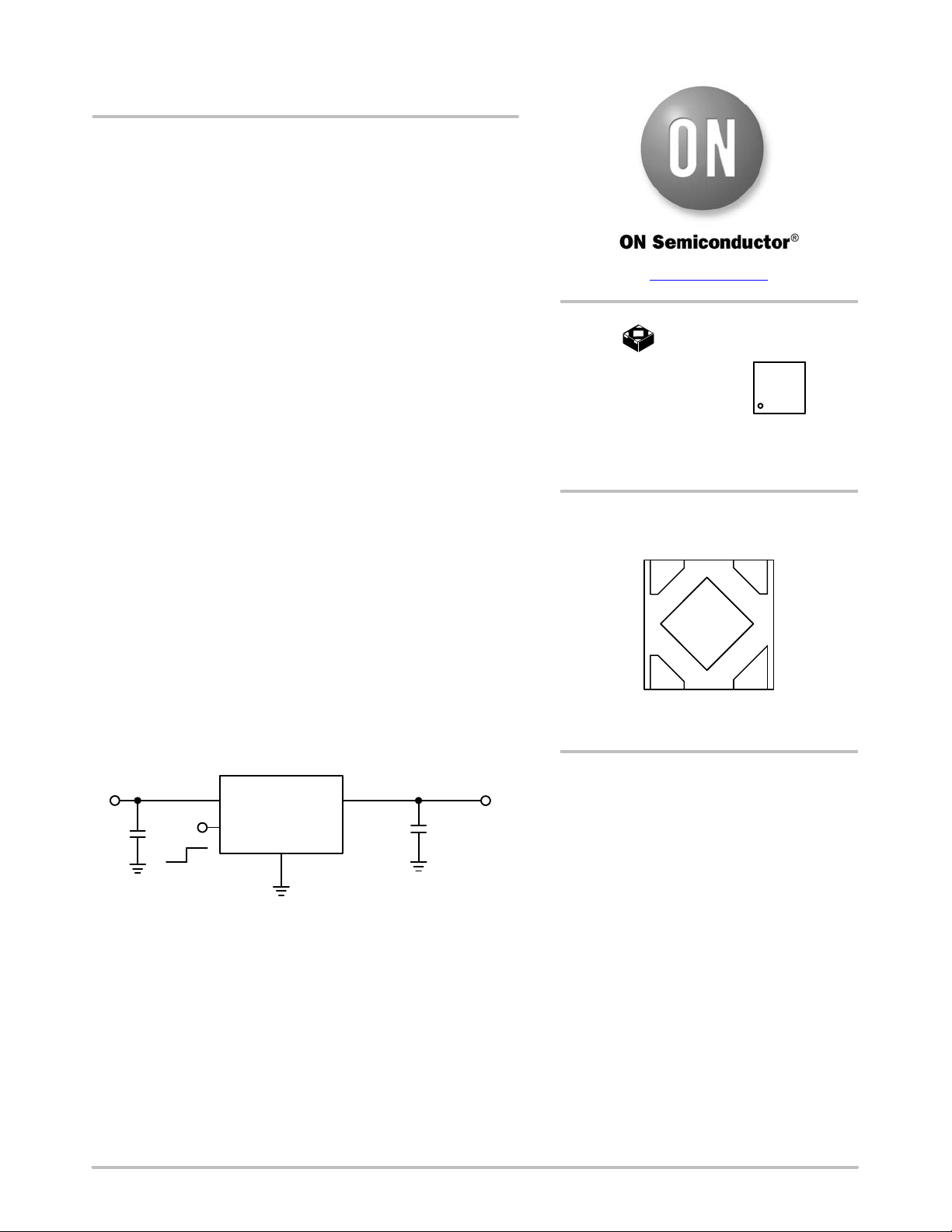

Figure 1. Typical Application Schematic
NCP103
IN
EN
OUT
GND
OFF
ON
V
OUT
C
OUT
1 mF
Ceramic
C
IN
V
IN
UDFN4
MX SUFFIX
CASE 517CU
MARKING
DIAGRAM
www.onsemi.com
See detailed ordering, marking and shipping information on
page 14 of this data sheet.
ORDERING INFORMATION
PIN CONNECTION
XX = Specific Device Code
M = Date Code
34
12
GND OUT
EN IN
(Bottom View)
1
XX M
1
