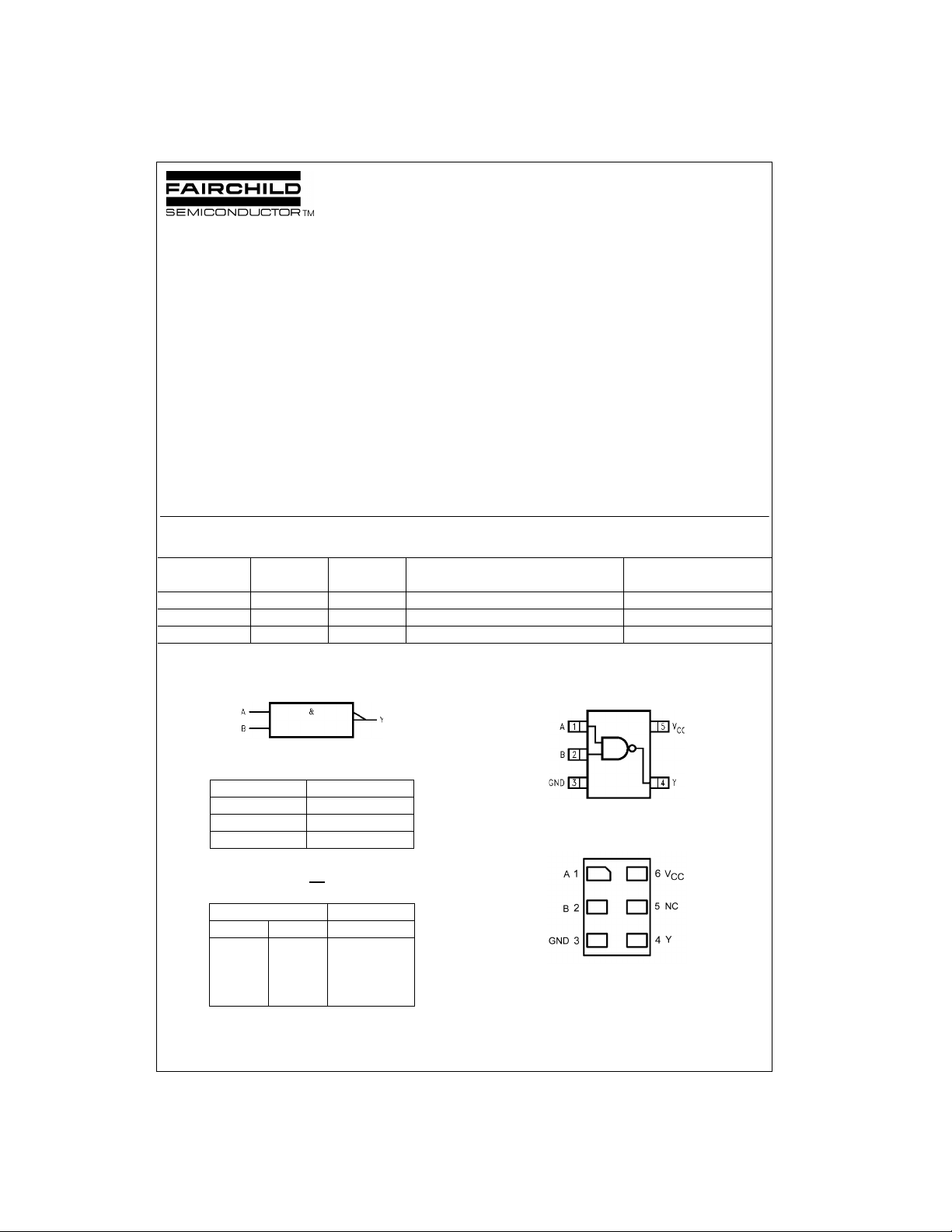

© 2003 Fairchild Semiconductor Corporation DS012156 www.fairchildsemi.com
October 1996
Revised May 2003
NC7SZ00 TinyLogic
UHS 2-Input NAND Gate
NC7SZ00
TinyLogic
UHS 2-Input NAND Gate
General Description
The NC7SZ00 is a single 2-Input NAND Gate from
Fairchild’s Ultra High Speed Series of TinyLogic
. The
device is fabricated with advanced CMOS technology to
achieve ultra high speed with high output drive while main-
taining low static power dissipation over a broad V
CC
oper-
ating range. The device is specified to operate over the
1.65V to 5.5V V
CC
operating range. The inputs and output
are high impedance when V
CC
is 0V. Inputs tolerate volt-
ages up to 6V independent of V
CC
operating voltage.
Features
■ Space saving SOT23 or SC70 5-lead package
■ Ultra small MicroPak
leadless package
■ Ultra High Speed; t
PD
2.4 ns typ into 50 pF at 5V V
CC
■ High Output Drive; ±24 mA at 3V V
CC
■ Broad V
CC
Operating Range; 1.65V–5.5V
■ Matches the performance of LCX when operated at
3.3V V
CC
■ Power down high impedance inputs/output
■ Overvoltage tolerant inputs facilitate 5V to 3V translation
■ Patented noise/EMI reduction circuitry implemented
Ordering Code:
Logic Symbol
IEEE/IEC
Pin Descriptions
Function Table
Y = AB
H = HIGH Logic Level L = LOW Logic Level
Connection Diagrams
Pin Assignments for SC70 and SOT23
(Top View)
Pad Assignment for MicroPak
(Top Thru View)
TinyLogic is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak is a trademark of Fairchild Semiconductor Corporation.
Order Number
Package Product Code
Package Description Supplied As
Number Top Mark
NC7SZ00M5X MA05B 7Z00 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel
NC7SZ00P5X MAA05A Z00 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel
NC7SZ00L6X MAC06A YY 6-Lead MicroPak, 1.0mm Wide 5k Units on Tape and Reel
Pin Names Description
A, B Inputs
YOutput
NC No Connect
Inputs Output
AB Y
LL H
LH H
HL H
HH L
