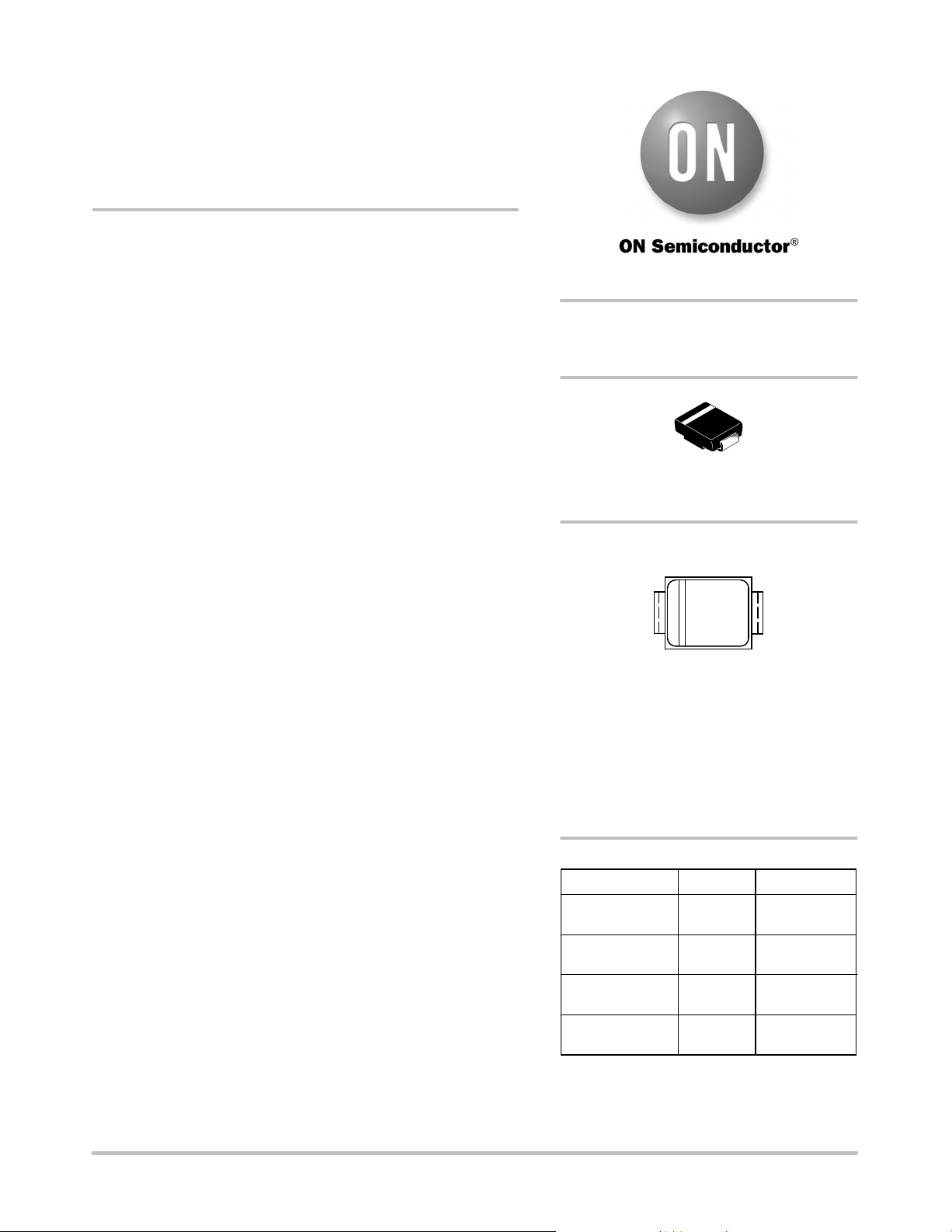

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 8
1 Publication Order Number:
MURS230T3/D
MURS230T3G,
NRVUS230T3G,
MURS240T3G,
NRVUS240T3G
Surface Mount
Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as
free wheeling and protection diodes in surface mount applications
where compact size and weight are critical to the system.
Features
Small Compact Surface Mountable Package with J−Bend Leads
Rectangular Package for Automated Handling
High Temperature Glass Passivated Junction
Low Forward Voltage Drop (0.95 Volts Max @ 2.0 A, T
J
= 150C)
AEC−Q101 Qualified and PPAP Capable
NRVUS Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
Pb−Free Packages*
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 95 mg (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
260C Max. for 10 Seconds
Polarity: Polarity Band Indicates Cathode Lead
ESD Rating:
Human Body Model = 3A (> 4 kV)
Machine Model = C (> 400 V)
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ULTRAFAST RECTIFIERS
2 AMPERES, 300−400 VOLTS
Device Package Shipping
†
ORDERING INFORMATION
MURS240T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
MURS230T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
http://onsemi.com
SMB
CASE 403A
A = Assembly Location
Y = Year
WW = Work Week
U2x = Device Code
x= F for MURS230T3
= G for MURS240T3
G =Pb−Free Package
AYWW
U2x G
G
(Note: Microdot may be in either location)
MARKING DIAGRAM
NRVUS230T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
NRVUS240T3G SMB
(Pb−Free)
2,500 /
Tape & Reel
