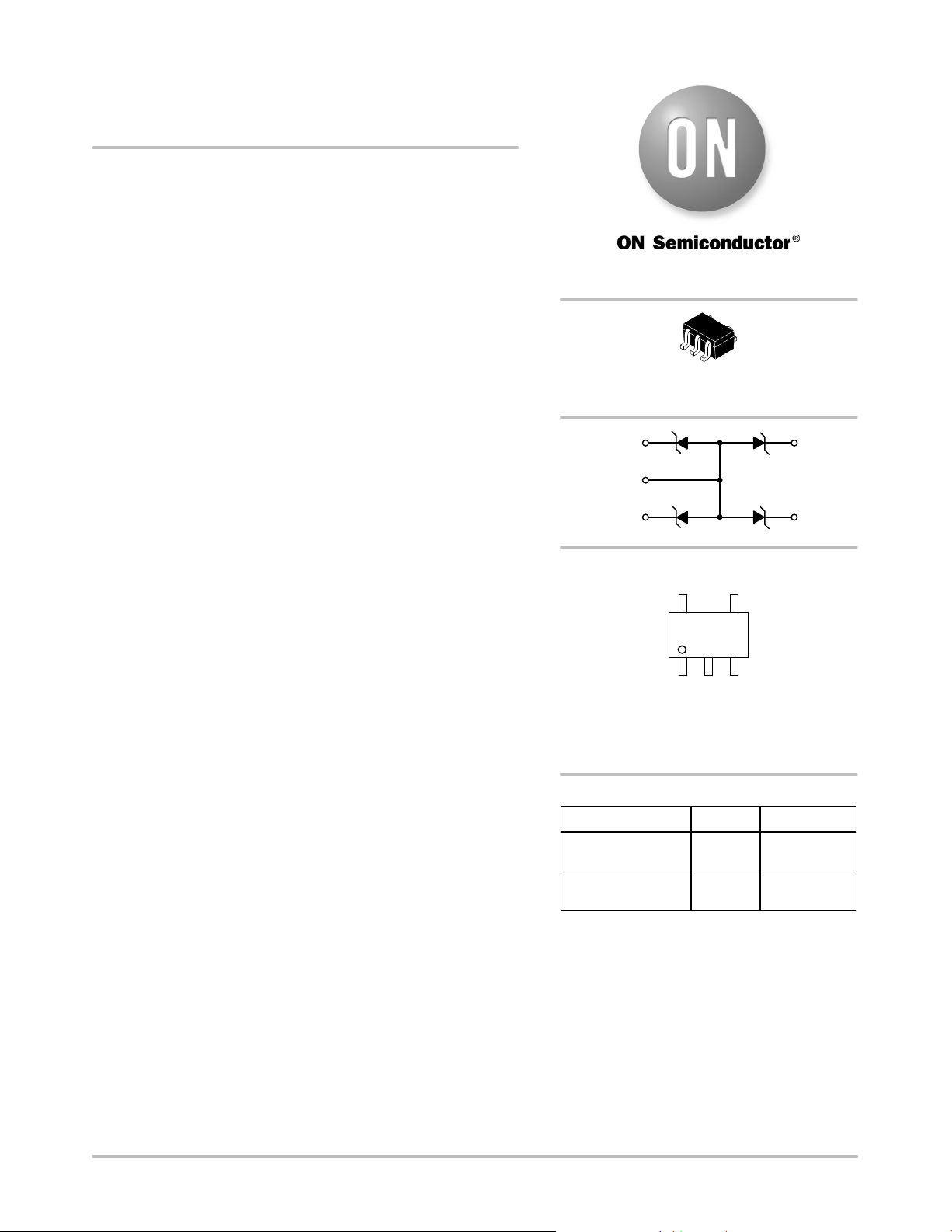

MSQA6V1W5T2G,
SZMSQA6V1W5T2G
Quad Array
for ESD Protection
ESD Protection Diodes with Low
Clamping Voltage
This quad monolithic silicon voltage suppressor is designed for
applications requiring transient overvoltage protection capability. It is
intended for use in voltage and ESD sensitive equipment such as
computers, printers, business machines, communication systems,
medical equipment, and other applications. Its quad junction common
anode design protects four separate lines using only one package.
These devices are ideal for situations where board space is at a
premium.
Features
Low Clamping Voltage
Stand Off Voltage 3 V
Low Leakage < 1 mA @ 3 V
SC−88A Package Allows Four Separate Unidirectional
Configurations
IEC1000−4−2 Level 4 ESD Protection
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
Pb−Free Package is Available*
Mechanical Characteristics:
Void Free, Transfer−Molded, Thermosetting Plastic Case
Corrosion Resistant Finish, Easily Solderable
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
SC−88A/SOT−323
CASE 419A
5
4
1
2
3
Device Package Shipping
†
ORDERING INFORMATION
61 = Device Code
M = Date Code
G = Pb−Free Package
MARKING DIAGRAM
*T2 Suffix Devices are Packaged with Pin 1 Opposing
Sprocket Hole.
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
61 M G
G
MSQA6V1W5T2G SC−88A
(Pb−Free)
3,000 /
Tape & Reel
(Note: Microdot may be in either location)
SZMSQA6V1W5T2G SC−88A
(Pb−Free)
3,000 /
Tape & Reel
