Educator’s Oscilloscope
Training Kit for Agilent InfiniiVision
X-Series Oscilloscopes
Data Sheet

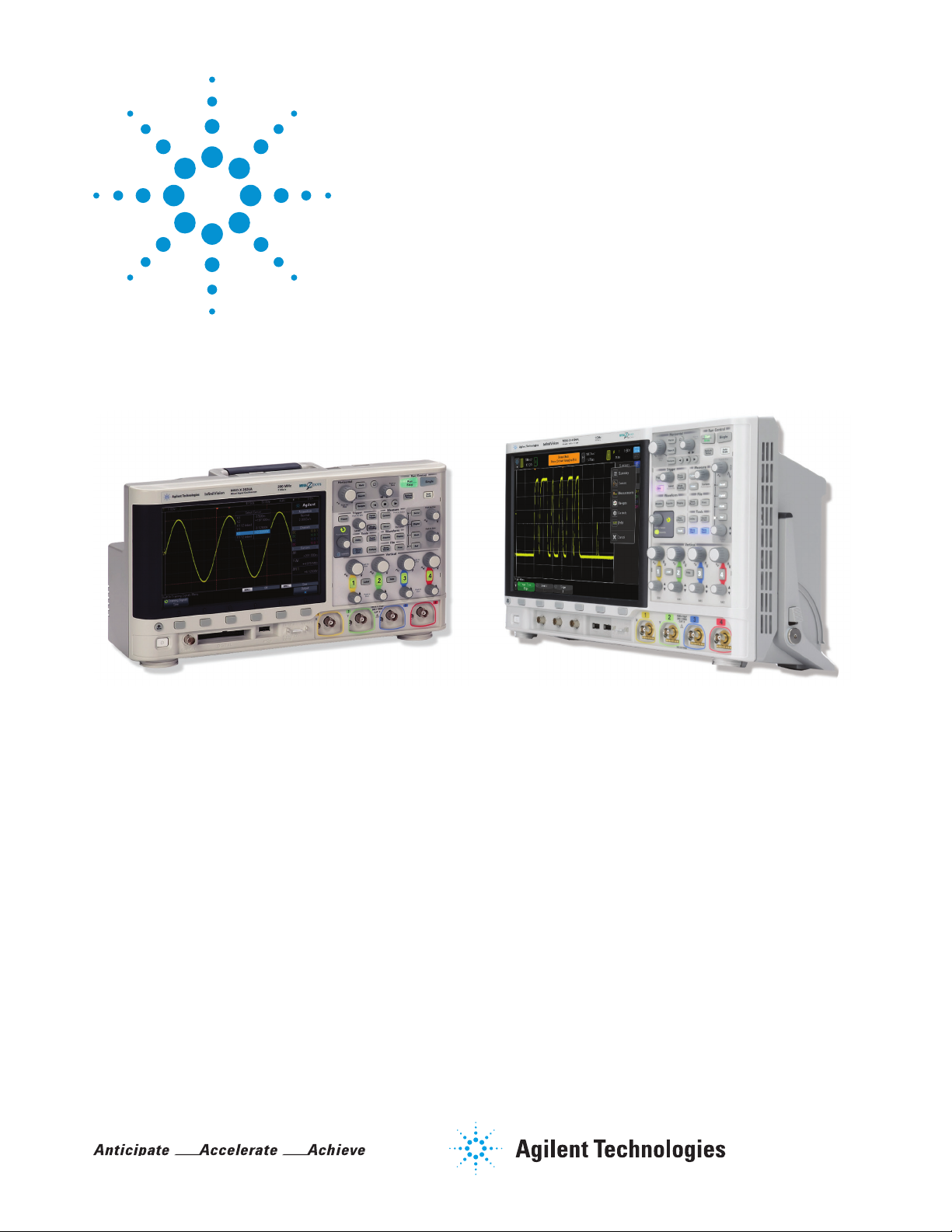

Agilent’s InfiniiVision 2000, 3000, and 4000 X-Series digital
storage and mixed signal oscilloscopes (DSOs and MSOs)
are ideal for students to use in their undergraduate electrical
engineering and physics circuits labs. These X-Series scope
families include 46 different models ranging from the lowest
priced DSOX2002A (2-channel, 70 MHz DSO), to the highest
performance MSOX4154A (4 channel, 1.5 GHz MSO). What
makes these scopes even more compelling for the EE and
physics education environment is the optional Educator’s
Oscilloscope Training Kit (DSOXEDK).
The Educator’s Oscilloscope Training Kit provides an array
of built-in training signals, so that electrical engineering and
physics students can learn what an oscilloscope does and
how they can perform basic oscilloscope measurements.
Also included in the kit is a comprehensive oscilloscope lab
guide and tutorial written specifically for the undergraduate
student. Professors and students can download this at no
charge.
Introduction
Agilent also provides a PowerPoint slide-set that
professors and lab assistants can use as a pre-lab lecture
on oscilloscope fundamentals. This lecture takes about
30 minutes and should be presented before electrical
engineering and physics students begin their first circuits
lab. Note that this PowerPoint slide-set also includes a
complete set of speaker notes.
Features
• Upto28built-instudenttrainingsignals
• Oscilloscope lab guide and tutorial
• Oscilloscope fundamentals PowerPoint slide-set
Oscilloscope training tools created specifically for electrical
engineering and physics undergraduate students and professors
