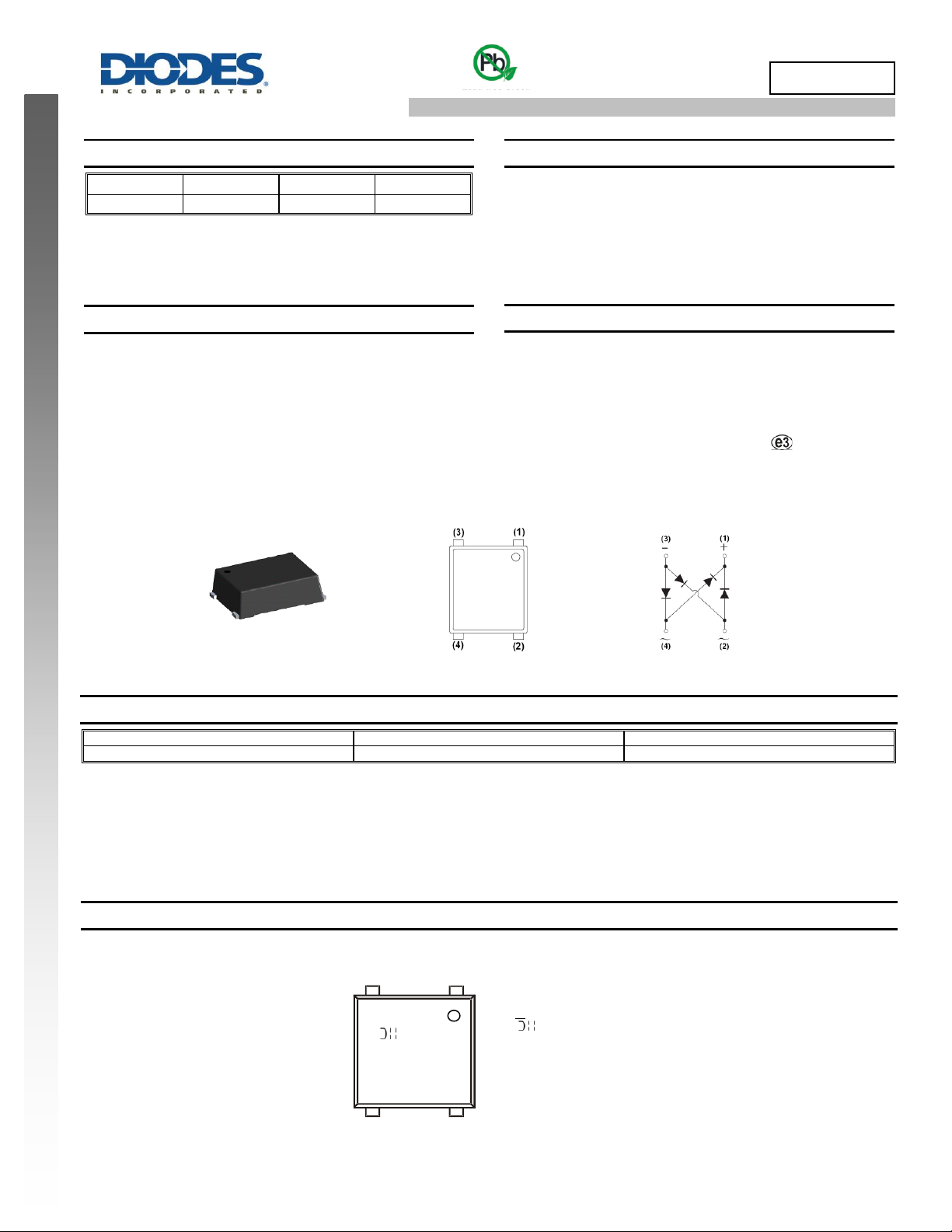

MSB08M
Document number: DS37067 Rev. 4 - 2
1 of 5
www.diodes.com
April 2016
© Diodes Incorporated
MSB08M
ADVANCED I NF ORMATION
NEW PRODUCT
0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Product Summary @T
A
= +25°C
V
RRM
(V)
I
O
(A)
V
F
(V)
I
R
(μA)
1,000
0.8
1.05
5
Description and Applications
Suitable for AC to DC bridge full wave rectification for SMPS, LED
lighting, adapter, battery charger, home appliances, office equipment
and telecommunication applications.
Features and Benefits
Glass Passivated Die Construction
Compact, Thin Profile Package Design
Reliable Robust Construction
Ideal for SMT Manufacturing
Lead-Free Finish/RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: MSB
Case Material: Molded Plastic; UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Polarity: As Marked on Body
Weight: 0.07 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
MSB08M-13
MSB
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Green
Top View
Internal Schematic
M08 = Product Type Marking Code
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 6 = 2016)
WW = Week Code (01 to 53)
_
+
~
~
YWW
M08
_
Pin Diagram
Pin 1
MSB
MSB
